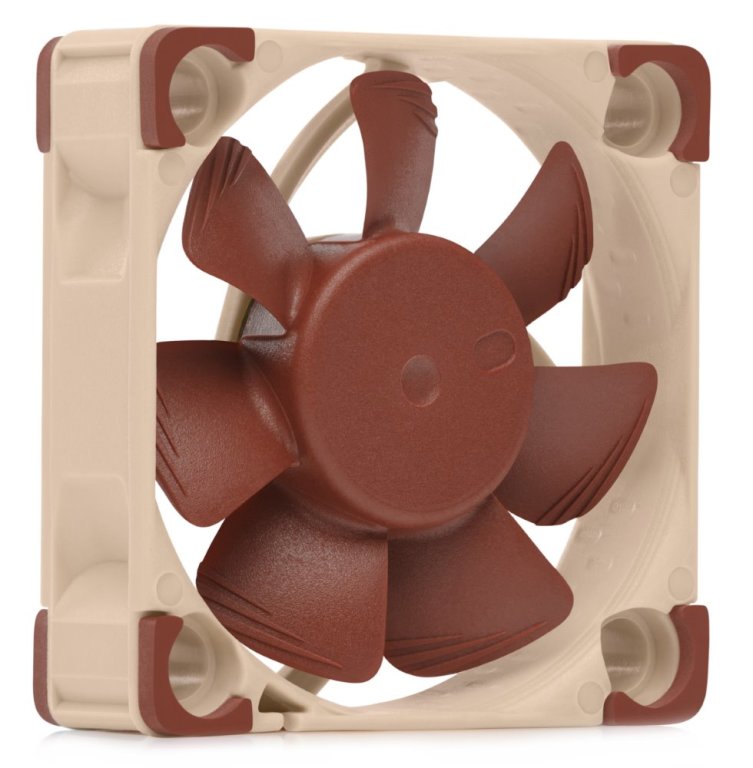

Noctua NF-A4x10 PWM

Noctua NF-A4x10 PWM, 40x40x10mm, 4-pin, 5000 RPMDíky pokročilému aerodynamickému designu Flow Acceleration Channels a AAO rámu se NF-A4x10 PWM stává špičkovým ultratichým ventilotárem o velikosti 40x10 mm. Technologie Smooth Commutation Drive a prvotřídní ložiska SSO2 garantují tichý chod a dlouhotrvající stabilitu.Size 40x40x10 mmBearing SSO2 Blade Geometry A-Series with Flow Acceleration Channels Frame Technology AAO (Advanced Acoustic Optimisation) Max. Input Power/Operating Voltage 0,25W/5VMTTF > 150.000 hSpecifikace:Max. Rotational Speed (+/-10%) 5000 RPMMax. Airflow 8.9 m3/hMax. Acoustical Noise 19.6 dB(A)Max. Static Pressure 1.95 mm H2OMax. Rotational Speed (+/-10%) (s L.N.A) 3700 RPMMax. Airflow (s L.N.A) 6,6 m3/hMax. Acoustical Noise (s L.N.A) 12,9 dB(A)Max. Static Pressure (s L.N.A) 1,21 mm H2OFlow Acceleration ChannelsThe NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.Reduced Motor Hub SizeThanks to its streamlined, compact motor design, the NF-A4x10’s motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10’s superior airflow and pressure performance.AAO FrameNoctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.Stepped Inlet DesignNoctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.Inner Surface MicrostructuresWith the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.Integrated Anti-Vibration PadsIntegrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.Smooth Commutation Drive 2The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A4x10 remarkably quiet even at very close distance.SSO2 BearingThe NF-A4x10 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.3 to 2-pin Adaptor and Polarity ProtectionThe NF-A4x10 comes with an adaptor from 3-pin Molex to the 2-pin connectors used on many graphics cards or network and storage devices. An integrated diode provides polarity protection on 2-pin connections.OmniJoin Adaptor SetMany devices featuring 40mm fans use proprietary fan headers, so the NF-A4x10 comes with Noctua’s OmniJoin Adaptor Set. Just cut the original fan’s cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x10 to proprietary fan headers!Extensive Cabling OptionsThe fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.EAN: 9010018100440Stránky výrobce:http://www.noctua.atStránky o produktu:https://noctua.at/en/products/fan/nf-a4x10-pwm.
