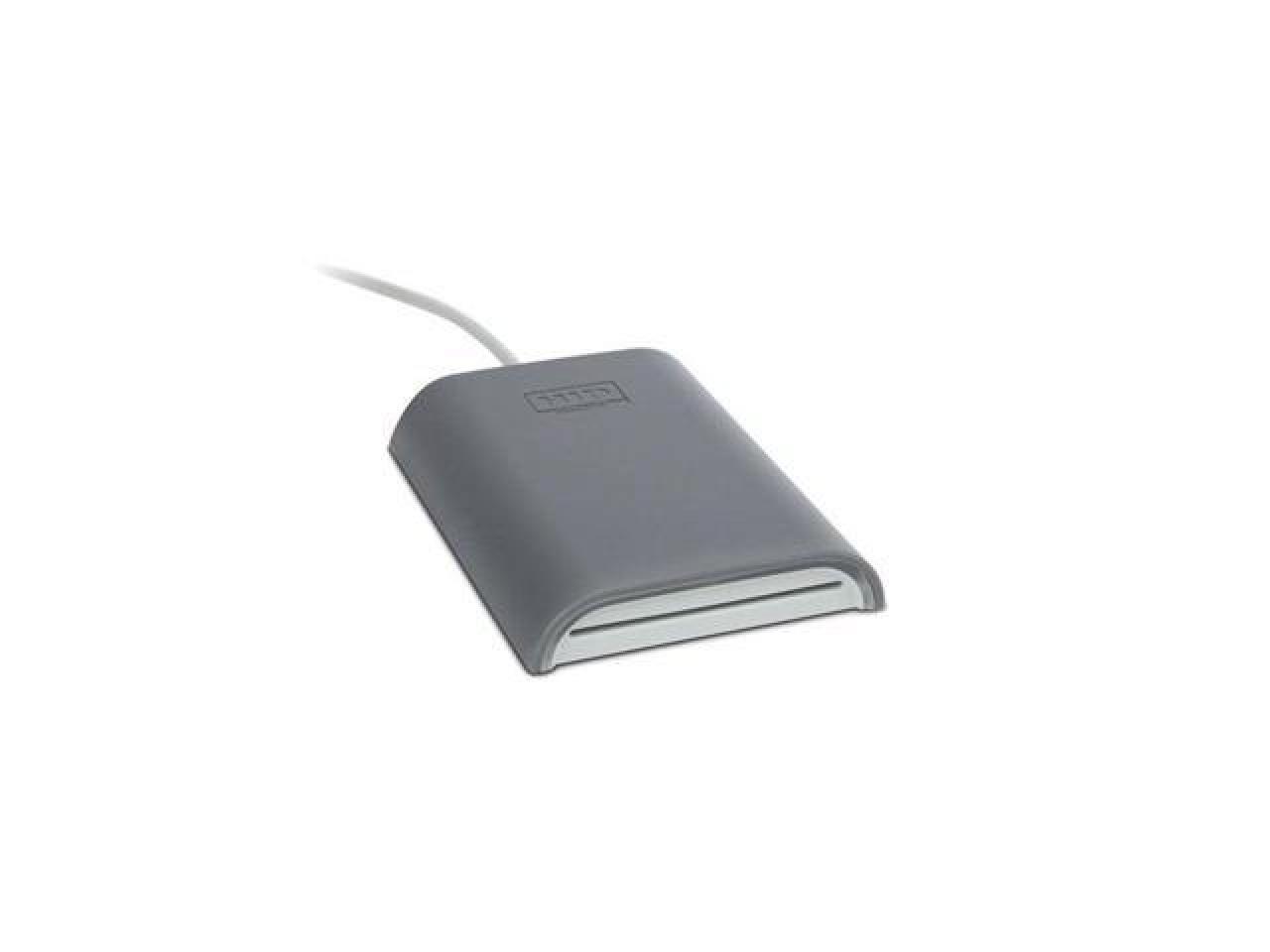

Omnikey 5422 USB

Base Model Number OMNIKEY® 5422Contact Smart Card InterfaceStandards & ProtocolsISO7816 Class A/B/CT=0, T=1S=8, S=9, S=10 (I˛C, 2WBP, 3WBP)Voltage 5V, 3V, 1.8VCard Size ID1 (Full size)Power to Smart Card 60mASmart Card Detection Movement detection with auto power-off / Automatic detection of smart card type/ Short circuit andthermal protection8-PIN Handling C4 / C8 supportedContactless Smart Card InterfaceProtocolsT=CL, MIFARE®, iCLASS®ISO 14443A/B - up to 848 kbps (depending on card)iCLASS 15693 up to 26kbps (depending on card)NFC Tag 1,2,4*Host InterfaceUSB Interface USB 2.0 Full Speed Device (12 MBps)USB 3.0 extended operability, tested with hubs/controllersConnector / Cable USB Type A connector; 59.1" (150 cm) cableOperating SystemsWindows 10/8.1/8/7/Server 2016/Server 2012/Server 2008R2Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+Mac OS X; Android™ 4.x-7.x**Driver CCID native driver from operating system (Windows/Linux/Mac)Supported APIs PC/SC - APIHuman InterfaceStatus Indicator White LEDHousingHousingOMNIKEY Professional Line Desktop DesignPoly CarbonateCover grey / Body light greyCustomer-specific logo or colour on requestDUAL INTERFACE CONTACT AND CONTACTLESS SMARTCARD READER. Versatile – Ideal for end-user environments using both contact andcontactless smart card technology and migration scenarios. Leverages existing employee badge – Expands the usage of existingphysical access cards to computer logon, as well as network andcloud access. Easy to install – Eliminates the need to install drivers; uses nativesupported CCID drivers within the operating system. Increased security and improved user experience – Reads and retrieveshighly secure one-time passwords (OTP) from Seos® cards.Dimensions 2.79" x 3.66" x 0.63" (71 mm x 93 mm x 16 mm)Weight ~100 g (3.53 oz)Protection Rating IP54 (dust/splashing water)Operating ConditionsOperating Temperature 32-131 F (0-55°C)Operating Humidity 10-95% rH (not condensing)Storage Temperature -4 - 176 F (-20 - 80°C)Durability 100.000 insertionsMeantime Between Failure (MTBF) 500.000 hoursCompliance and RegulatoryCompliance / Certification USB 2.0Regional certifications CE, FCC, UL, KCC, RCM, ICES (Canada)Environmental WEEE, RoHS2, ReachOrdering InformationWarranty Two-year manufacturer''s warrantyOptional Mounting accessories kitCard Holder for card presence operationPRODUCT FEATURES:. Designed for traditional clientsas well as thin-client productsand solutions. Uses native CCID driver fromoperating system – no additionaldrive installation required. Supports a broad range ofoperating systems and workswith the native CCID driver andPC/SC-API from the operatingsystem. Windows, Linux, Appleand Android*. Supports contactless smartscards with up to 848 Kbpsin the fastest ISO 14443transmission mode. Interoperable with various smartcard technologies, tags andstandards such as ISO 14443A/B, ISO 7816, Seos® (OTP only). Support for HID Global solutions:ActivID® ActivClient, ActivID®Applets, and HID Trusted Tag®Service.* reader/writer mode only; limited support of NTAG memory size / NDEF format to be implemented by additional software.
