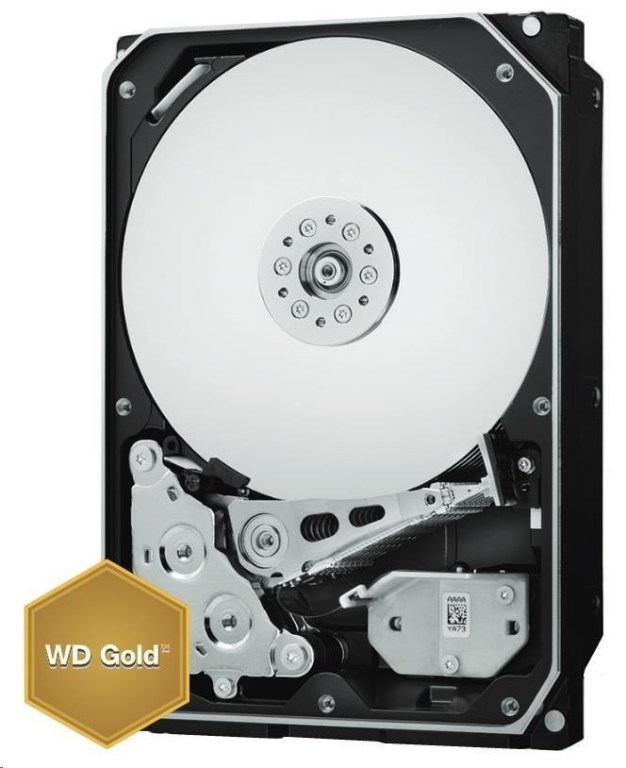

PodrobnostiWD Gold™ DC HA750 Enterprise Class SATA HDD 14TB
- Conquer tough workloads with enterprise-grade WD Gold™ HDDs. Available in 1TB to 14TB* capacities.
- Enhanced reliability with up to 2.5M hours MTBF
- Specifically designed for use in enterprise-grade data centers and storage systems
- Improve performance with our vibration protection technology
- HelioSeal™ technology delivers high capacities with a low power draw [12TB and above]
- Get peace of mind with a 5-year limited warranty
TECHNICAL SPECIFICATIONSPRODUCT FEATURESCapacity14TBInterfaceSATA 6BG/sFormat: Sector size (bytes)**512eNative Command QueuingYesForm Factor3.5-inchRoHS Compliant*** YesPERFORMANCEData Trasnfer Rate‡ (max sustained)267 MB/sPerformance Class7200 RPM ClassCache‡‡512 MBRELIABILITYMTBF (hours)2 500 000Annualized Failure Rate (AFR, %)‡‡‡0,35Load/unload cycles (minimum)600 000Limited Warranty (years)5POWER MANAGEMENTAverage Power RequirementsOperational§: 6.0 WIdle§§: 5.5 WPower efficiency indes (W/TB,idle): 0,4ENVIRONMENTAL SPECIFICATIONSShock (Read/Write)Operating (half-sine wave, 2ms): 70G/70GNon-operating (half-sine wave, 2ms): 300G (2ms)TemperatureOperating: 5° C to 60° CNon-operating: -40° C to 70° CAcoustics (average)Idle Mode: 20 dBA Seek Mode: 36 dBaPHYSICAL DIMENSIONSHeight (max)1.028 in. (26.1 mm) maxLenght (max)5.787 in. (147.0 mm) maxWidth (±.01 in.) 4.0 in. (101.6 mm) ±.01 in.Weight1.52 lb. (.69 kg) ± 10%*CAPACITY: One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.**FORMAT: 512e: Advanced Format drive with 512-byte logical sectors and 4K (4096-byte) physical sectors; 512n: Native 512-byte logical and physical sectors*** RoHS COMPLIANT: Western Digital hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU.‡ DATA TRANSFER RATE: MB/s is 1,000,000 bytes‡‡ CACHE BUFFER: Portion of buffer capacity used for drive firmware‡‡‡ MTBF and AFR: Specifications are based on a sample population and are estimated by statistical measurements and acceleration algorithms under typical operating conditions for this drive model. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.§ OPERATIONAL POWER: 8K Queue Depth = 1 @ 40 IOPS§§ IDLE POWER: Based on use of Idle_A§§§ Some models of Ultrastar are identical in form, fit and function to the respective WD Gold™ model. The only differences are limited to the brand, label and ID string as reported by the firmware. For these drives, any previously completed qualification of the equivalent Ultrastar™ models should not require a re-qualification.".
