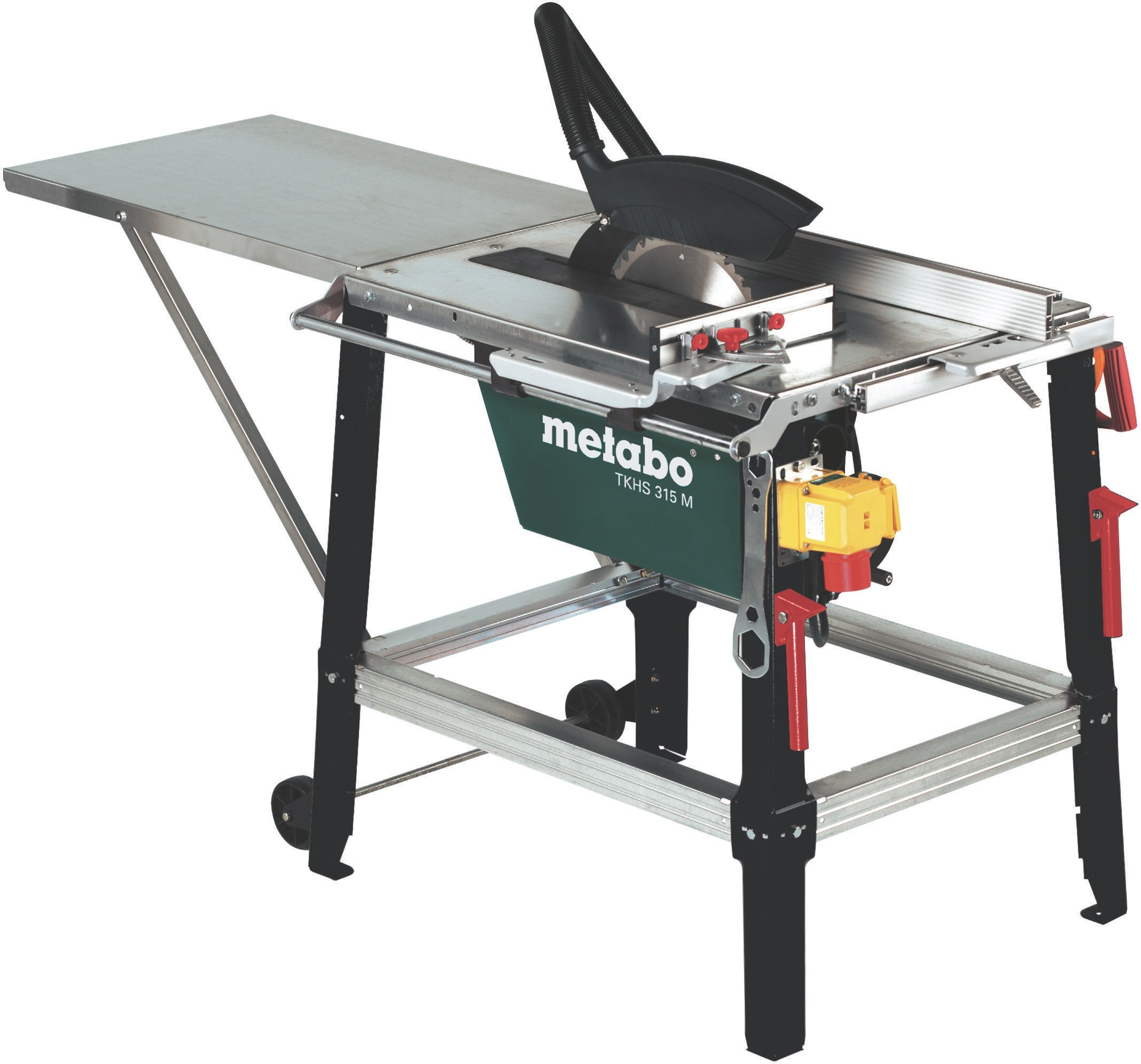

Metabo TKHS 315M 4.20 DNB

Maximum cutting height 90/45°: 85 / 53 mm // 3 5/16 / 2 1/16 " Maximum cutting width at parallel guide/rip fence: 340 mm / 13 3/8 " Saw blade: 315 x 30 mm / 12 3/8 x 1.181 " Rated input power: 4200 W Precise, powerful table saw in professional configuration – quick to adapt for every application Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites Sturdy parallel guide/ripping fence with quick fastening Sturdy, powder-coated sheet steel design and galvanised table-top Restart protection: prevents unintentional start-up after power supply interruption Precise, powerful table saw in professional configuration – quick to adapt for every application Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites Quiet induction motor with motor brake and overload protection - maintenance-free and robust. Mitre fence with linear stop, can also be used a sliding table Sturdy parallel guide/ripping fence with quick fastening Freely height-adjustable saw blade Comfortable setting of the saw blade inclination from the front Sturdy, powder-coated sheet steel design and galvanised table-top Foldable table length extension Frame and motor pre-mounted High torque three-phase motor Technical data Dimensions 1700 x 700 x 1000 mm / 5.6 x 2.3 x 3.3 ft Max. support surface 800 x 600 mm / 31 1/2 x 23 5/8 " mm Working height 850 mm / 33 1/2 " Cutting height 0 - 85 mm // 0 - 3 5/16 " Maximum cutting height 90/45° 85 / 53 mm // 3 5/16 / 2 1/16 " Maximum cutting width at parallel guide/rip fence 340 mm / 13 3/8 " Maximum material width at mitre fence 250 mm / 9 13/16 " No-load speed 2990 /min Cutting speed 50 m/s / 164 ft/s Saw blade 315 x 30 mm / 12 3/8 x 1.181 " Saw blade swivel range 0 - 45 ° Rated input power 4200 W Output power 3500 W Weight 77 kg / 170 lbs. Noise emission Sound pressure level 97 dB(A) Sound power level (LwA) 106 dB(A) Uncertainty of measurement K 4 dB(A) Scope Of Delivery: Carbide saw blade with alternately bevel-ground tips (24 teeth) Chip and dust extraction unit Push stick Wheel set incl. handles Parallel guide / rip fence Mitre fence Table extension (600 x 800 mm).
