Viewsonic CDE4320

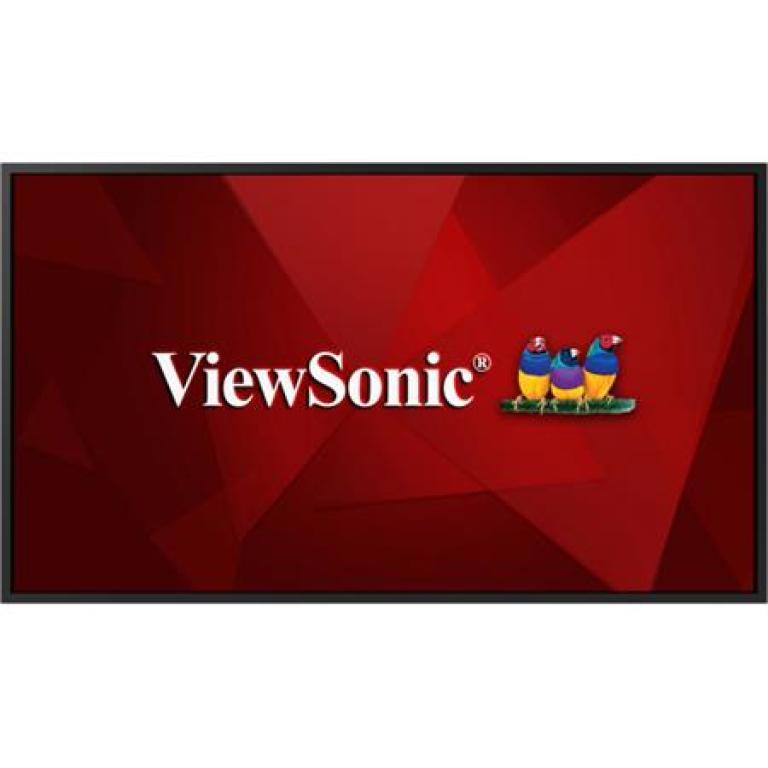

CDE4320 43" 4K CommercialPresentation Display Slim even bezel and chassis Easy Multi-Screen Setups Remote configuration management USB playback photos, music & video Multiple HDMI devices control OVERVIEW The ViewSonic® CDE4320 is a 43’’ commercialpresentation display with a slim even bezel, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. Integrated with an embedded media player, the CDE4320 is able to easily playback high definition messaging via USB port. Versatile connectivity options include 2 HDMI-IN ports, RS232 input, SPDIF output etc. The slim-bezel CDE4320 delivers sharp and vivid images to ensure crisp pictures and smooth content playback. SPECIFICATIONS DISPLAY Panel Size: 43" Type Tech: TFT LCD Module. IPS type, DLED backlight Display Area mm: 41.184 H x 529.416 V 42.51” diagonal Native Resolution: 16:09 Aspect Ratio: 3840 x 2160 Colors: 1.07B colors Brightness: 350 nits typ. Contrast Ratio: 1100:1 Typ. Response Time: 6 ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 40,000 Hours Typ Surface Treatment: Anti-Glare, 2H, Haze 3% Bezel: Slim Orientation: Landscape INPUT HDMI: x2 DVI: x1 Audio: x1 3.5mm RS-232: x1 IR Pass Thru: x1 OUTPUT Audio: x1 RCA SPDIF: x1 Fiber IR Pass Thru: x1 LAN RJ45: x1 USB Type A: 2.0 Type A : x2 USB Playback SPEAKERS SPEAKERS: 10Wx2 COMPATIBILITY RGB PCHDMI PC: Up to 1920x10@60Hz. Refer to timing table HDMI: 480i, 480p,720p,10i,10p, 4K2K@60Hz DVI: 480i, 480p,720p,10i,10p Android Version: Android 8.0 POWER Voltage: 100-240 VAC - 10% Wide Range Consumption: Normal 70 W, Max 85 W ERGONOMICS Wall Mount VESA® : 400x200 mm OPERATING CONDITIONS Temperature o C: 0 to 40°C Humidity: 20% 80% non-condensing DIMENSIONS W X H X D Physical inch mm: 38.19 x 21.98 x 3.33 in969.9 x 558.3 x 84.6 mm Packaging inch mm: 42.13 x 26.10 x 6.02 in1070 x 663 x 153 mm WEIGHT Net lb kg: 10.5 kg 23.1 lbs wo stand; 11.1 kg 24.47 lbs with Stand Gross lb kg: 13.5 kg 29.76 lbs REGULATIONS REGULATIONS: cULus, FCC, Energy Star, TUV Mexico, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE PACKAGE CONTENTS PACKAGE CONTENTS: 1. CDE4320 commercialpresentation display 2. Remote Control with batteries 4. Quick Start Guide 5. Power Cables 1.8mm 6. HDMI cable 1.8mm 7. RS232 cable 1.8m.
