Viewsonic TD1655

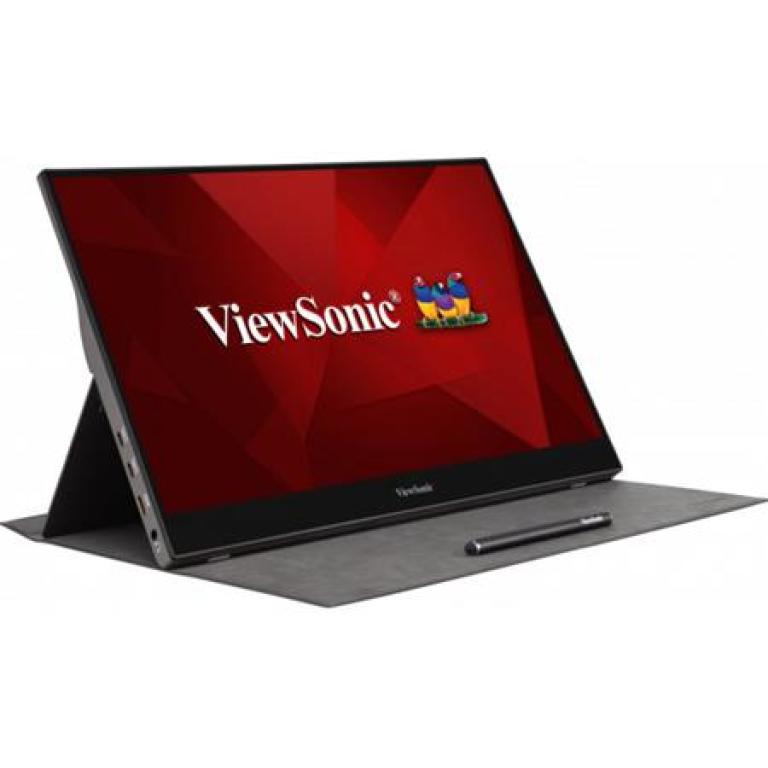

OVERVIEW The ViewSonic TD1655 is a portable 16” Full HD touch monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual, power, and touch signal transmission. The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, stainless case, aluminum stand, and 6H hardness screen, reliability is embodied in the design. SPECIFICATIONS DISPLAY Display Size (in.): 16 Viewable Area (in.): 15.6 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD Static Contrast Ratio: 800:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 250 cd/m2 (typ) Colors: 262K Color Space Support: 6 bit true Aspect Ratio: 16:9 Response Time (Typical GTG): 6.5ms Response Time (GTG w/OD): 6.599ms Response Time (Typical Tr+Tf): 30ms Viewing Angles: 178o horizontal, 178o vertical, CR>5; 170o horizontal, 170o vertical, CR>10 Backlight Life (Hours): 15000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Blue Light Filter: Yes Color Gamut: NTSC: 45% size (Typ), sRGB: 64% size (Typ) Pixel Size: 0.179 mm (H) x 0.179 mm (V) Touch Screen: Projected Capacitive, 10-point multi-touch Surface Treatment: Glossy w/ anti-finger print, Hard Coating (?6H) Cover Glass Thickness: 0.8mm COMPATIBILITY PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 10 certified; macOS tested Mac® Resolution (min): 1920x1080 CONNECTOR USB 3.1 Type C: 2 3.5mm Audio Out: 1 Mini HDMI: 1 Power in: External power adapter AUDIO Internal Speakers: 0.8Watts x2 POWER Eco Mode (Conserve): 6W Eco Mode (optimized): 6.9W Consumption (typical): 8W Consumption (max): 8.3W Voltage: AC 100-240V, 50/60 Hz Stand-by: 0.5W Power Supply: External CONTROLS Physical Controls: Up, Right, Down, Left, Power On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu OPERATING CONDITIONS Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% INPUT SIGNAL Frequency Horizontal: 15 ~ 82KHz Frequency Vertical: 50 ~ 75Hz VIDEO INPUT Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C ERGONOMICS Tilt (Forward/Back): 20o / 60o WEIGHT (IMPERIAL) Net (lbs): 2.1 Net Without Stand (lbs): 2.1 Gross (lbs): 5.1 WEIGHT (METRIC) Net (kg): 1 Net Without Stand (kg): 1 Gross (kg): 2.3 DIMENSIONS (IMPERIAL) (WXHXD) Packaging (in.): 17.3 x 11.3 x 3.5 Physical (in.): 14 x 8.8 x 0.6 Physical Without Stand (in.): 14 x 8.8 x 0.6 DIMENSIONS (METRIC) (WXHXD) Packaging (mm): 440 x 288 x 89 Physical (mm): 355 x 223 x 16 Physical Without Stand (mm): 355 x 223 x 16 GENERAL Regulations: cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI PACKAGE CONTENTS: TD1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protect cover x1, Clean cloth x1, Passive touch pen x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT.
