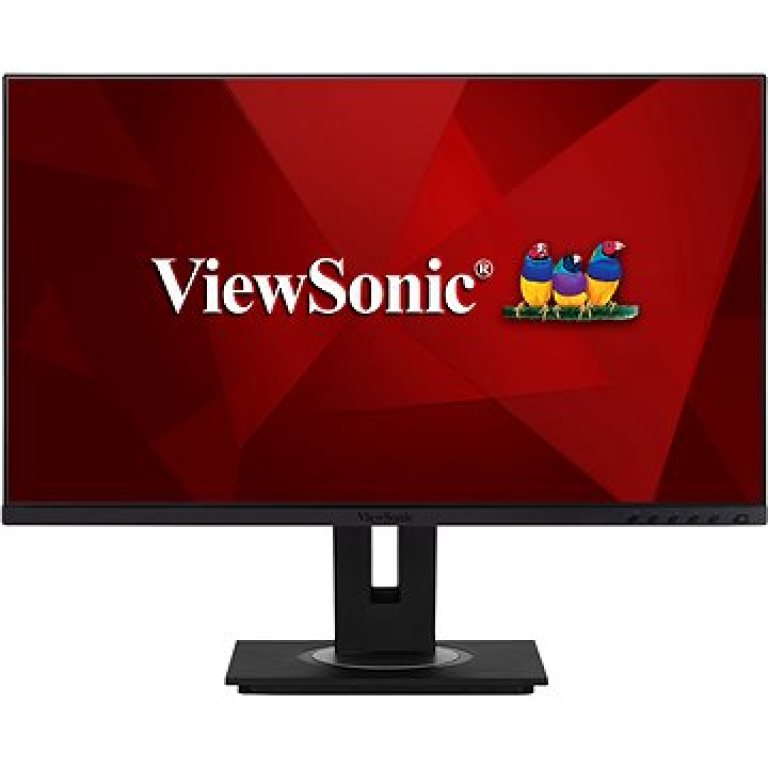

Viewsonic VG2755

OVERVIEW The ViewSonic VG2755 is a 27’’ (27’’ viewable) 1080P IPS monitor designed to fit the modern office space. The monitor comes with a built-in USB Type-C port. Charge and display content simply via a single cable from your device, enabling connection to your laptop through a single USB cable and keeping your workstation neat while also functioning as a docking monitor. In addition, the monitor is equipped with DisplayPort, HDMI, VGA, and three USB Type-A ports to expand your efficiency. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or have strategic group discussions around the screen. The packaging is environmentally friendly and offers quick and easy out-of-the-box setup, making VG2755 series monitors perfect for business environments. SPECIFICATIONS LCD PANEL Resolution : 1920 x 1080 Brightness : 250 cd/m2 (typ) Dynamic Contrast Ratio : 50M:1 Panel Surface : Anti-Glare, Hard Coating (3H) Display Size (in.) : 27 Viewable Area (in.) : 27 Panel Type : IPS Technology Resolution Type : FHD Static Contrast Ratio : 1,000:1 (typ) Light Source : LED Colors : 16.7M Color Space Support : 6 bit + FRC Aspect Ratio : 16:9 Response Time (Typical GTG) : 5ms Response Time (GTG W/OD) : 5ms Viewing Angles : 178o horizontal, 178o vertical Backlight Life (Hours) : 30000 Hrs (Min) Refresh Rate (Hz) : 75 Blue Light Filter : Yes Flicker-Free : Yes X Lighting : Yes Color Gamut : NTSC: 72% size (Typ) Pixel Size : 0.311 mm (H) x 0.311 mm (V) INPUT SIGNAL Frequency Horizontal : 15 ~ 82KHz Frequency Vertical : 24 ~ 75Hz COMPATIBILITY PC Resolution (max) : 1920x1080 Mac® Resolution (max) : 1920x1080 PC Operating System : Windows 7/8/8.1/10 certified; macOS tested Mac® Resolution (min) : 1920x1080 CONNECTOR VGA : 1 USB 3.1 Type A : 3 USB 3.1 Type B : 1 USB 3.1 Type C : 1 HDMI 1.4 : 1 Display Port : 1 Power In : 3-pin Socket (IEC C14 / CEE22) POWER Voltage : AC 100-240V, 50/60 Hz Eco Mode (Conserve) : 13W Eco Mode (optimised) : 15.6W Consumption (typical) : 19.1W Consumption (max) : 22.54W Stand-by : 0.3W Power Supply : Internal ERGONOMICS Height Adjust (mm) : 130 Swivel : 120o Tilt (Forward/Back) : -5o / 40o Pivot (Right/Left) : 90o / 90o WALL MOUNT VESA Compatible : 100 x 100 mm OPERATING CONDITIONS Temperature : 32°F to 104°F (0°C to 40°C) Humidity (non-condensing) : 20% to 90% TOUCH Touch Technology : N/A Touch Points : N/A AUDIO Internal Speakers : 2Watts x2 ADDITIONAL HARDWARE Kensington Lock Slot : 1 CONTROLS Physical Controls : Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) On Screen Display : Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu VIDEO INPUT Digital Sync : TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C Analog Sync : Separate/Composite/SOG - RGB Analog WEIGHT (IMPERIAL) Net (lbs) : 16.5 Net Without Stand (lbs) : 11.2 Gross (lbs) : 23.6 WEIGHT (METRIC) Net (kg) : 7.5 Net Without Stand (kg) : 5.1 Gross (kg) : 10.7 DIMENSIONS (IMPERIAL) (WXHXD) Packaging (in.) : 27.2 x 8.6 x 16.9 Physical (in.) : 24.1 x 21 x 8 Physical Without Stand (in.) : 24.1 x 14.2 x 2 DIMENSIONS (METRIC) (WXHXD) Packaging (mm) : 692 x 218 x 430 Physical (mm) : 612 x 533 x 202 Physical Without Stand (mm) : 612 x 362 x 52 GENERAL Regulations : cTUVus, FCC-B, ICES003, Energy Star, EPEAT, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 7.0, EAC, UkrSEPRO PACKAGE CONTENTS : VG2755 x1 3-pin Plug (IEC C13 / CEE22) x1 DisplayPort Cable (Male-Male) x1 USB A/B Cable (v3.1; Male-Male) x1 Quick Start Guide x1 Recycle/Disposal : Please dispose of in accordance with local, state or federal laws. Warranty : *Warranty offered may differ from market to market Country Of Origin : China Power Management : Energy Star standards, EPEAT.
