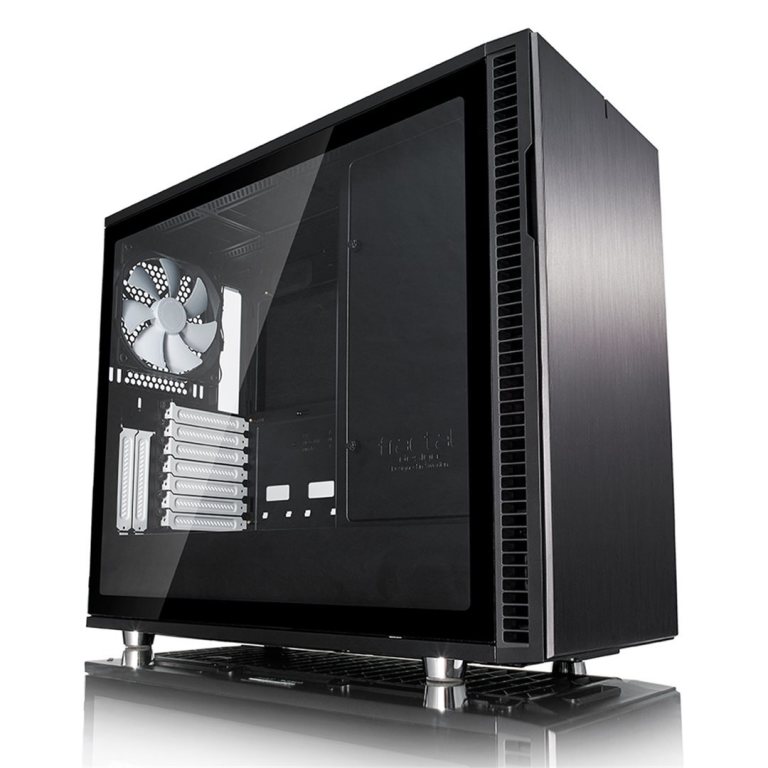

PodrobnostiDesigned from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – the latest and largest step in the legacy of the world-renowned Define Series.Seamless tempered glass and sound dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support and storage flexibility. Six 3.5”/2.5” drives and two 2.5” drives can be installed with precision placement in countless configurations throughout the case.The spacious and fully adaptable framework of the Define R6 sports nine fan mounts, integrated PWM fan hub and support for radiators up to 420mm, making it the perfect platform for building your dream water loop. Improved third generation ModuVent™ technology allows an effortless transition from steel-clad sound dampened top panel to filtered high airflow multi-fan ventilation setup.Expanding on the timeless elegant form and silent modular function that brought so much success to its predecessors, the new Define R6 offers the most demanding hardware enthusiast a solid foundation and flexible framework with limitless potential.Key features
- Full-size seamless scratch-resistant tempered glass side panel
- Optimized for silence with high-density industrial dampening on side, top and front panels
- USB 3.1 Gen 2 Type-C with Fast Charging support and up to 10Gbps transfer speeds
- Reversible front door with anodized aluminum cover and dual-handed mounting system for adaptability with elegance
- Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity
- Nexus+ Smart Hub offers superior fan control of six additional case fans and three PWM devices via your motherboard
- Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed, ensuring optimal airflow via two intake fans and a single exhaust
- Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and 280 mm in the base
- Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior
- Third generation ModuVent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation in the top panel
- Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
- Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths
- Vertical 2.5 slot GPU mount showcases your graphics hardware with full visibility (PCIe riser sold separately)
- Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing
- Customizable 2.5” storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud
Specification 3.5"/2.5" Universal drive brackets6Dedicated 2.5" drive brackets2Dedicated 5.25" drive bracket1 (removable)Expansion slots7 + 2 verticalMotherboard compatibilityEATX (up to 285 mm wide), ATX, mATX, ITXPower supply typeATXFront ports1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/OTotal fan mounts9Front fan3 x 120 mm or 2 x 140 mm, (2 x Dynamic X2 GP-14 included)Top fanStandard layout: 3 x 120 or 2 x 140Open layout: 3 x 120/140 mmRear fan1 x 120/140 mm (1 x Dynamic X2 GP-14 included)Bottom fan2 x 120/140 mmDust filtersBottom fan + PSUFront fansTop panelFront radiator120/240/360 mm140/280 mmTop radiatorStandard layout:- 120/240/140/360 mm (max 35 mm motherboard component height)Open layout:- 120/240/360 mm- 140/280/420 mm (max 35 mm motherboard component height)Rear radiator120 mmBottom radiator120/240 mm140/280 mmPSU max length300 mmGPU max lengthMax 440 mm with front fan mountedStandard layout: Maximum width 155 mm (including power connectors) for graphics cards longer than 300 mm.CPU cooler max height185 mmCable routing space23 mmCable routing grommetsYesFixed velcro strapsYesTool-less push-to-lockBoth side panelsCaptive thumbscrewsHDD brackets, SSD bracketsLeft side panelTempered glassRight side panelIndustrial sound-dampened steelDimensionsDefine R6 USB-C - TGCase dimensions (LxWxH)543 x 233 x 465 mmCase dimensions w/o feet/protrusions/screws 535 x 233 x 448 mmNet weight 12.4 kgPackage dimensions (LxWxH) 535 x 325 x 650 mmPackage weight 14.2 kgPackage contents
- Define R6 USB-C - Tempered Glass computer case
- User manual
- Accessory box
Additional information
- Product code: FD-CA-DEF-R6C-GY-TGL
- EAN: 7340172701187
- UPC: 843276101183
- JAN: 4537694257459
.
