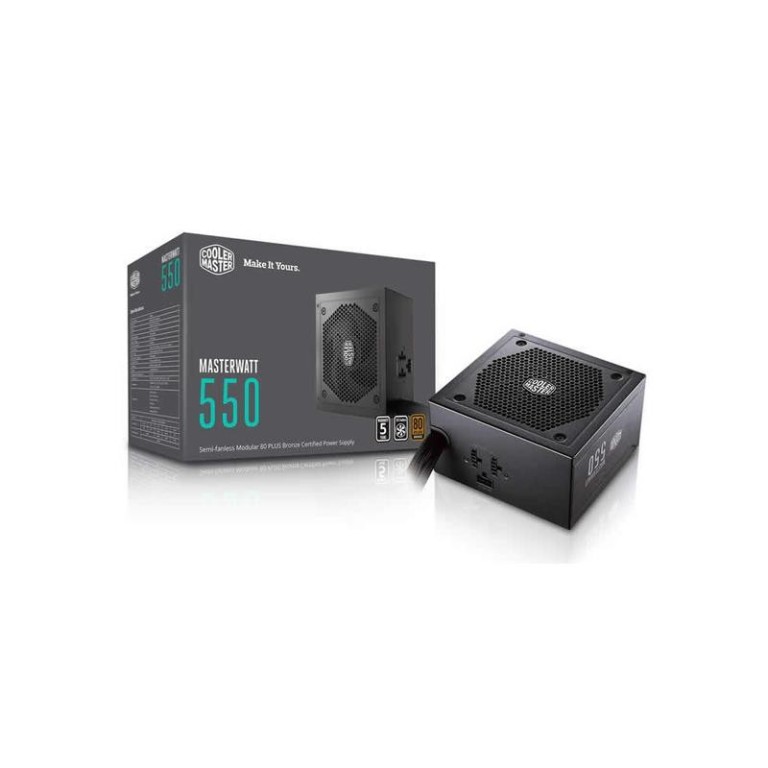

PodrobnostiMASTERWATT550SEMI-FANLESS MODULAR 80 PLUS BRONZE CERTIFIED POWER SUPPLY
- Semi-Fanless up till 15% load
- Dual Forward and DC-to-DC circuit design
- 5 years warranty
- More Conductive PCI-e Cables
- 80 PLUS Bronze Certified
- Durable LDB bearing
80 PLUS BRONZE CERTIFIEDThe 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.DURABLE LDB BEARINGCooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.SEMI-FANLESS UP TO 15% LOADMasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.DUAL FORWARD AND DC-TO-DC CIRCUIT DESIGNThe Dual Forward and DC-to-DC circuit design offers reliability and stability.This is especially significant in +3.3V and +5V outputs.MORE CONDUCTIVE PCI-E CABLESThe MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,providing you a safer user environment.TECHNICAL SPECIFICATIONSModel NumberMPX-5501-AMAABModularSemi ModularATX VersionATX 12V v2.4PFCActive PFCOperation Voltage100-240VacInput Voltage100-240VacInput Current8-4AInput Frequency50-60HzDimension (L x W x H)140 x 150 x 86 mmFan Size120mmFan BearingLDBPower Good Signal100-500msHold Up Time16ms at 80% LoadEfficiency85% @ Typical LoadERP 2013 LOT 6YesMTBF>100,000 HoursOperating Temperature0-40°CProtectionsOPP, OVP, UVP, OCP, OTP, SCPRegulatoryCCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CBMB 20+4 pin Connectors1CPU 12V 4+4 pin Connectors1SATA Connectors6PERIPHERAL 4-pin Connectors2FDD CABLE 4-pin Connectors1PCI-E 6+2 pin Connectors280 PLUSBronzeWattage500 to 750WSerieMasterWatt Series.
