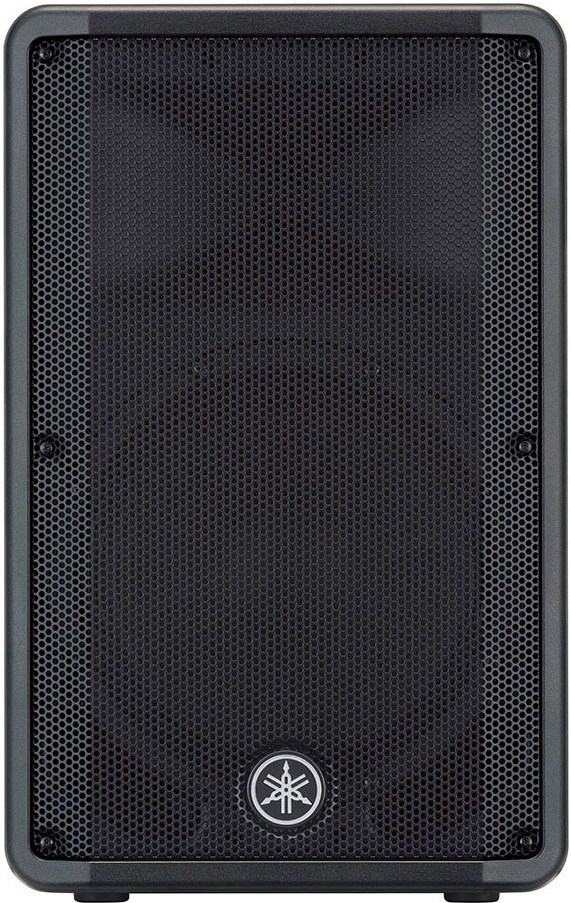

Yamaha DBR12

Yamaha DBR12 dosahuje max. SPL 131dB. Disponuje jedným 12" nízkofrekvenčným Driverom a jedným 1,4" vysokofrekvenčným Driverom, oba s feritovým magnetom. GENERAL SPECIFICATIONS Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type Frequency range (-10dB) 52Hz – 20kHz Nominal coverageH 90° V 60° ComponentsLF Diameter:12" cone, Voice Coil:2", Magnet:Ferrite HF Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter) Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) Maximum output level (1m; on axis) 131dB SPL I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF Heat dissipation Fan cooling, 4 speeds Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz Power consumption 74W(1/8 Power Consumption), 18W(Idle) Cabinet material Plastic Finish Black Handle Side x 2 Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) Pole socket 35mm (Bottom x 1) DimensionsW 376mm (14.8") H 601mm (23.7") D 348mm (13.7") Net weight 15.8 kg (34.8 lbs) Accessories BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket).
