D-Link DAP-1665

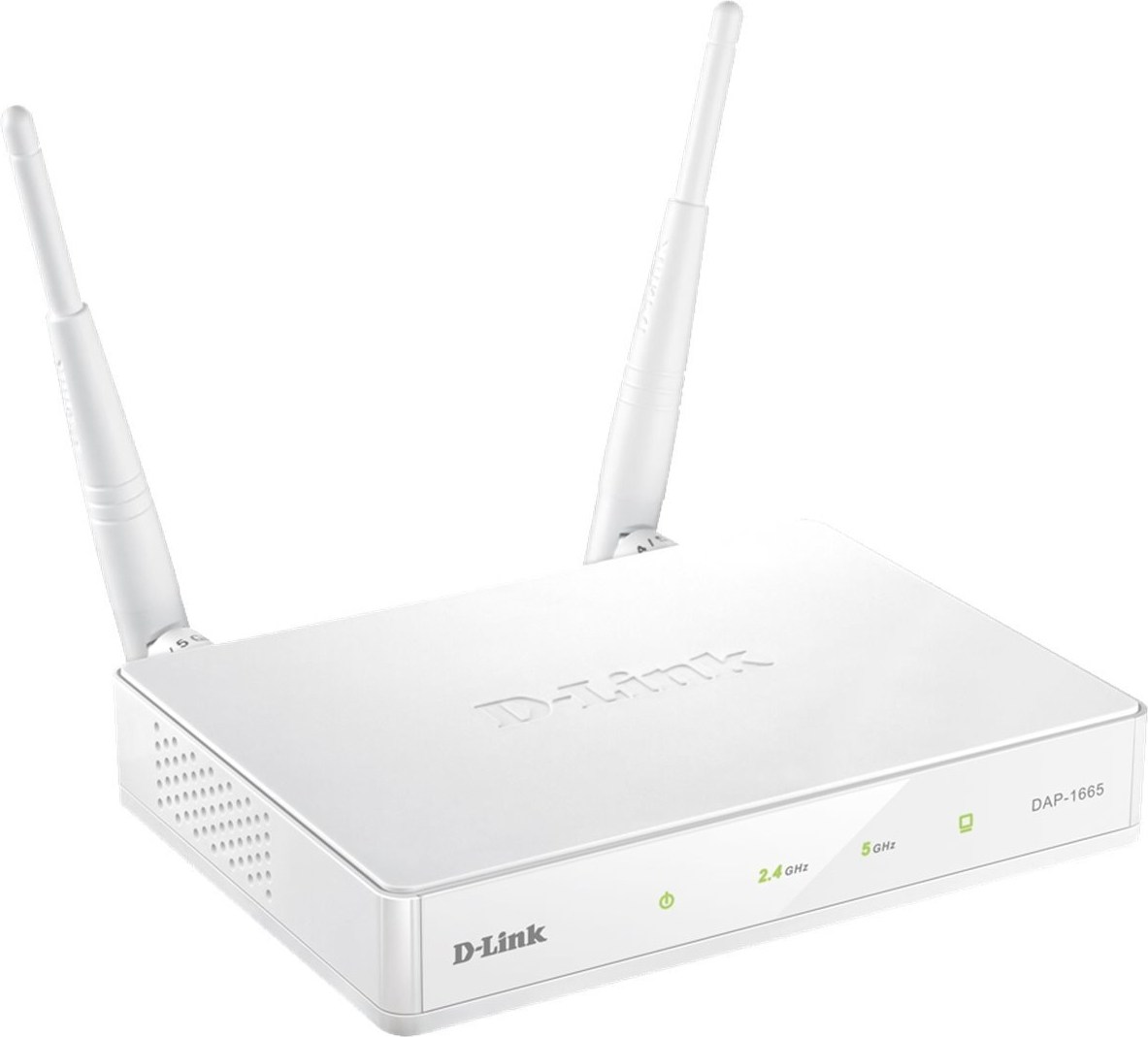

D-Link DAP-1665 Wireless AC1200 DB Access Point.OVERVIEW.The DAP-1665 Wireless AC1200 Dual-Band Access Point is a fast and versatile solution for bringing Wireless AC to your existing wired network, or extending your current wireless network. The latest 802.11ac technology delivers combined speeds of up to 1200 Mbps, so you can create a high-speed wireless link between networks, or quickly transfer large files wirelessly between computers on the same network.SPECIFICATIONS.FEATURES.Wireless and Wired LAN.· Latest 802.11ac wireless technology with combined wireless speeds of up to 1200 Mbps1.· Backwards-compatible with 802.11n/g/b/a clients.· Two external antennas increase range.· Gigabit LAN port for wired connections up to 1000 Mbps.Operating Modes.· Access Point mode to add wireless to your existing network.· Repeater mode extends the range of your existing wireless network to reach further throughout your home or office.· Bridge mode lets you create a direct wireless link between two existing LANs.· Bridge mode with AP adds the functionality of a wireless access point to your bridged network.· Client mode delivers wireless connectivity to a LAN device such as a storage device, media server, or gaming console.Security.· WPA/WPA2 security encryption to protect your wireless traffic.· Quickly and easily add new wireless devices with Wi-Fi Protected Setup (WPS).· Kensington lock port to protect against theft.GENERAL.Networking Standards.· IEEE 802.11ac.· IEEE 802.11n.· IEEE 802.11g.· IEEE 802.11b.· IEEE 802.11a.· 802.3/802.3u.Interface.· IEEE 802.11ac wireless LAN.· IEEE 802.11n/g/b/a wireless LAN.· 10/100/1000BASE-TX wired LAN.Operating Modes.· Access Point (AP).· Bridge.· Bridge with AP.· Wireless Client.· Repeater.Operating Frequency.· 5 GHz Band:.o 5.15 GHz to 5.35 GHz.o 5.47 GHz to 5.85 GHz.· 2.4 GHz Band:.o 2.4 - 2.4835 GHz.Antenna.· 2 x 2 dBi external antennas.LEDs.· Power.· 2.4 GHz wireless.· 5 GHz wireless.· LAN.ADVANCED FEATURES.Security.· 64/128-bit WEP.· WPA-PSK/WPA2-PSK.· Wi-Fi Protected Setup (WPS).· MAC address filtering.· Kensington security slot.· SSID broadcast disable.Device Management.· Web-based interface minimum requirements:.o Internet Explorer 7, Firefox 12.0, Chrome 20.0, or Safari 4.0.Physical.Dimensions.· 147 x 108 x 27.8 mm (5.79 x 4.25 x 1.1 inches).Weight.· 222 grams (0.489 lbs).Power.· Input: 12 V/1 A.· Consumption: Maximum 5.18 W.Temperature.· Operating: 0 to 40 °C (32 to 104 °F).· Storage: -20 to 65 °C (-4 to 149 °F).Humidity.· Operating: 10% to 90% non-condensing.· Storage: 5% to 95% non-condensing.Certifications.· CE.· FCC.· TELEC.· IC.· Wi-Fi Certified.· VCCI.1. Maximum wireless signal rate derived from 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless N product from D-Link.
