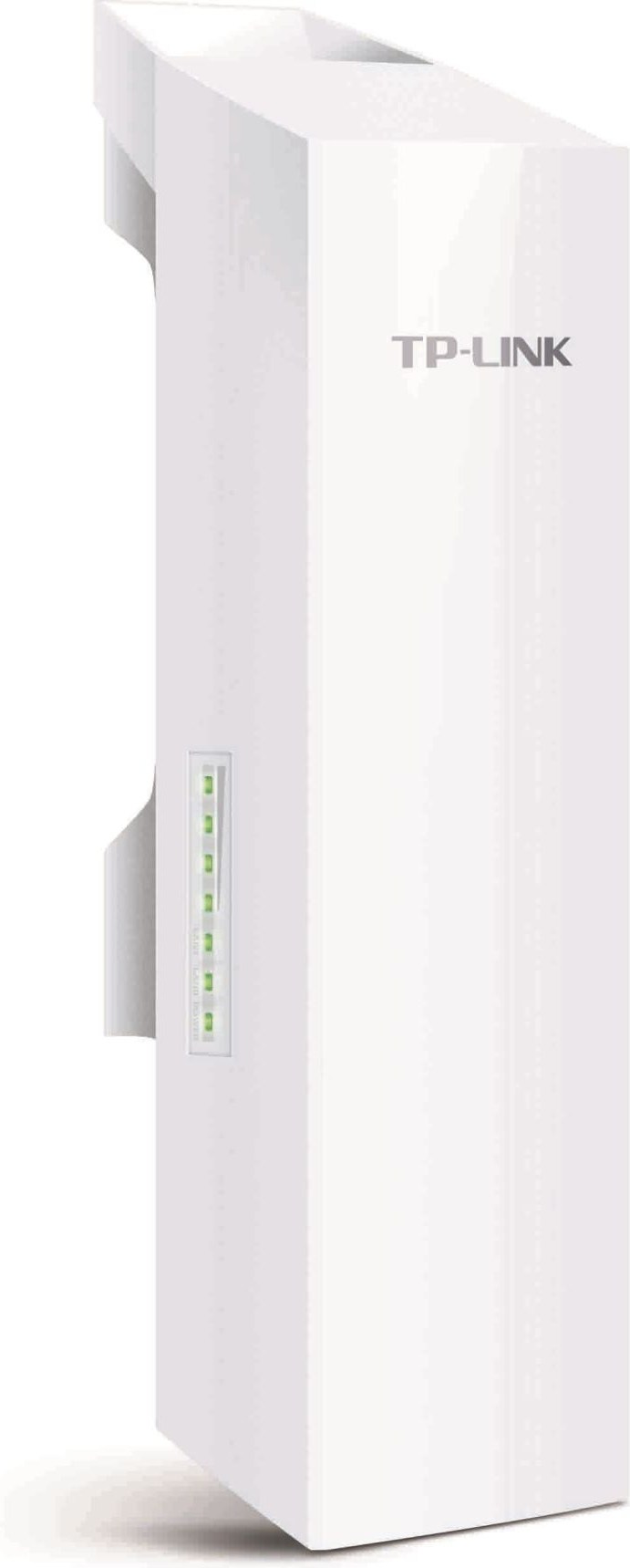

TP-Link CPE210.Outdoor 2.4GHz 300Mbps High power Wireless Access Point,WISP Client Router, up to 27dBm, QCA, 2T2R, 2.4Ghz 802.11b/g/n, High Sensitivity, 9dBi directional antenna, Weather proof, Passive PoE, support TDMA and central control.Highlights: Built-in 9dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 27dBm/500mw System-level optimizations for more than 5km long range wireless transmission TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications Centralized Management System – Pharos Control AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely.What this product doesTP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.Enterprise Hardware DesignWith Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?).Advanced Antenna SystemBuilt-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.High Power & High SensitivityIn advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE210 an ideal product for outdoor wireless networking applications.Professional Outdoor DesignCPE210 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions. Weatherproof Design With its outdoor weatherproof enclosure and industrial-level hardware design, CPE210 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C). Double Protection against ESD AttacksBesides its grounding terminal, CPE210 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE210’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.TP-LINK MAXtream TDMA TechnologyAs network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE210 uses MAXtream TDMA Technology.5km+ Wireless Data TransmissionSpecially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.Pharos Control – Centralized Management SystemCPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.PharOSUser-friendly web-based management system allows professionals to apply more specific configurations.
.- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
.- Adjustable transmission power from 0 to 27dBm/500mw
.- System-level optimization for more than 5km long range wireless transmission
.- TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
.- Centralized Management System – Pharos Control
.- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
.- Outdoor stabilized enclosure with IPX5 waterproof certification
.- Dual Ethernet ports and grounding terminal integrated
.- 6000V Lightning Protection, 15KV ESD Protection
.- Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
.- Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
.- Selectable bandwidth of 5/10/20/40MHz
.- Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
.- Easy antenna alignment with wireless signal quality indicators via Web interface
.
.HARDWARE FEATURES.Processor.Qualcomm Atheros 560MHz CPU, MIPS 74Kc.Memory.64MB DDR2 RAM, 8MB Flash.Interface.1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in).1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE.Passthrough).1 Grounding Terminal.1 Reset Button.Dimensions (W X D X H).224 x 79 x 60 mm.Antenna Type.Built-in 9dBi 2x2 Dual-polarized Directional Antenna.Beam Width: 65° (H-Plane) / 35° (E-Plane).Note: For more details, please refer to datasheet.Protection.15KV ESD Protection.6000V Lightning Protection.Power Consumption.10.5 Watts Max.Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.Power Supply.Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins).Voltage range: 16-27VDC.Enclosure.Outdoor ASA stabilized plastic material.IPX5 waterproof Certification.WIRELESS FEATURES.Wireless Standards.IEEE 802.11b/g/n (with Pharos MAXtream disabled).Proprietary Protocol.TDMA Mode (with Pharos MAXtream enabled).Wireless Speeds.Up to 300Mbps (40MHz,Dynamic).Up to 144.4Mbps (20MHz,Dynamic).Up to 72.2Mbps (10MHz,Dynamic).Up to 36.1Mbps (5MHz,Dynamic).Frequency.2.4~2.483GHz.Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.Reception Sensitivity.802.11b:.11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm.802.11g:.54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm.802.11n:.MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,.MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,.MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,.MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,.MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm.Transmission Power.27dBm/500mw (Adjustable power by 1dBm).Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.SOFTWARE FEATURES.Wireless Configurations.Pharos MAXtream TDMA Technology.802.11b/g/n Modes.Selectable Channel Width: 5/10/20/40MHz.Automatic Channel Selection.Transmission Power Control.Dynamic Frequency Selection (DFS).WDS Enable/Disable.Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption.SSID Broadcast Enable/Disable.Multi-SSID with VLAN Tagging (AP mode only).Distance/ACK Timeout Setting.Wireless MAC Address Filter.Wireless Advanced:.> Beacon Interval/RTS Threshold/Fragmentation.>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia.Management.Discovery and Remote Management via Pharos Control application.HTTP/HTTPS Web-based management.System Log.SNMP Agent(v2c).Ping Watch Dog.Dynamic DDNS.SSH Server.System Tools.Wireless Signal Quality Indicators:.Signal Strength/Noise/Transmit CCQ/CPU/Memory.Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP.Spectrum Analyzer.Speed Test.Ping.Traceroute.System-level Optimizations.Optimized IGMP Snooping/Proxy for multicast applications.Hardware watch dog.OTHERS.Certification.CE, FCC, RoHS, IPX5.Package Contents.Outdoor Wireless CPE.24V 1A Passive PoE Adapter.Pole Mounting Straps.AC Power Cord.Installation Guide.System Requirements.Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.Environment.Operating Temperature: -30°C~70°C (-22?~158?).Storage Temperature: -40?~70? (-40?~158?).Operating Humidity: 10%~90% non-condensing.Storage Humidity: 5%~95% non-condensing.POE ADAPTER FEATURES.Button.Remote Reset Button.Certifications.CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark.Dimensions(W x D x H).110*57*33.5mm.Efficiency.>80%.Input.100-240VAC, 50/60Hz.Input Current.0.8A Max @ 100VAC.Input Voltage.100VA~240VAC @ 50Hz~60Hz.Interfaces.1 AC Jack with Earth Ground.1 10/100Mbps Shielded Ethernet Port (Power + Data).1 10/100Mbps Shielded Ethernet Port (Data).Output.24VDC, 1.0A Max.+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet).Output Voltage.24VDC(+4,5pins; -7,8pins).Power Status LEDs.0~0.8A: Green.0.8A~1.0A: Red.
