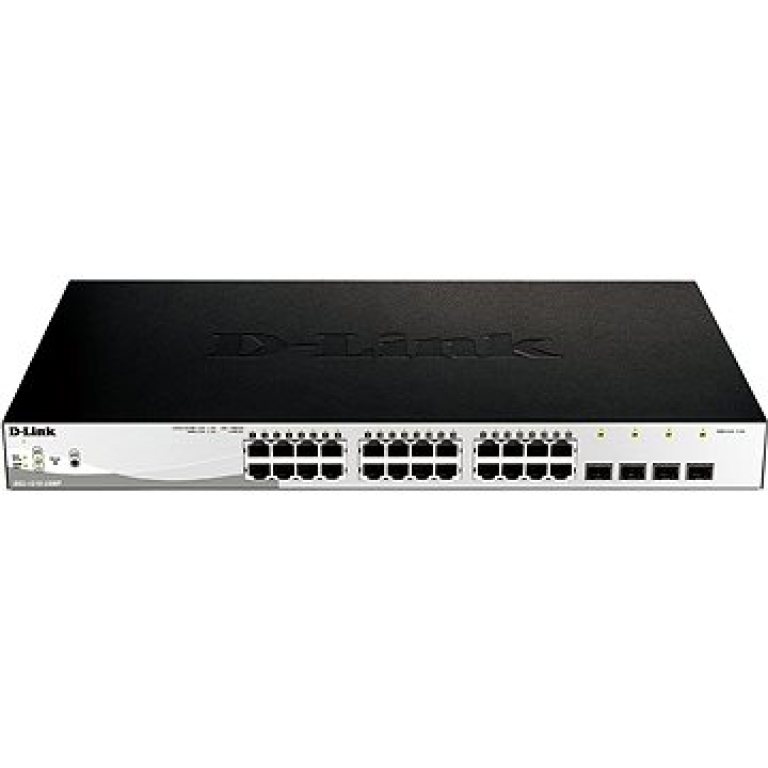

D-Link DGS-1210-28MP

DGS-1210-28MP: 28-Port Gigabit Max PoE Smart Managed Switch including 4 SFP ports (24 x PoE ports, fan).Features.Green Technology.Power saving via the following features:.Link Status detection.LED Shut-Off.Port Shut-Off.System Hibernation.Time-based PoE (DGS-1210-10P/28P/52P/52MP only).Security Features.Access Control List secures network.D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding.Port Security supports 64 MACs per port.ARP Spoofing Prevention.Intuitive Management.D-Link Network Assistant Utility or Web-based GUI.Built-in SNMP MIB for remote NMS (D-View 6.0).Compact CLI through Telnet.Advanced Features.Auto Surveillance VLAN.Loopback Detection automatically disables a port when a loop is detected.Cable Diagnostics allows administrators to determine cable status.SFP ports for flexibility.Auto MDI/MDIX.Interface.Number of 10/100/1000BASE-TX ports.DGS-1210-28/28P/28MP - 24 ports.Number of SFP ports.DGS-1210-20/28/28P/28MP/52/52P/52MP - 4 ports.PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget).DGS-1210-28MP (802.3af/802.3at/24 ports/370W).Performance.Switch Capacity.DGS-1210-28/28P/28MP - 56 Gbps.64-Byte Packet Forwarding Rate.DGS-1210-28/28P/28MP - 41.7 Mpps.MAC Address Table Size.16K.Packet Buffer.DGS-1210-10/20/28/28P/28MP - 1.5 MB per device.Jumbo Frame.Up to 9,216 Bytes.Physical & Environmental.Power Consumption (Standby/Maximum).DGS-1210-28MP - 33.1W / 454.4W (PoE).Power Input.10 to 240 VAC, 50/60HZ internal universal power supply.Dimensions (W x D x H).DGS-1210-28MP - 440 x 250 x 44 mm.Weight.DGS-1210-28MP - 3.86 kg.Ventilation.DGS-1210-28MP - smart fans.Heat Dissipation.DGS-1210-28MP - 1,552.32 BTU per hour.Temperature.Operating: -5° to 50°C (23° to 112°F).Storage: -20° to 70°C (-4° to 158°F ).Humidity.Operating: 0% ~ 95% non-condensing.Storage: 0% ~ 95% non-condensing.Certification.CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick.Software Feature.L2 Features.MAC Address Table.16K entries.IGMP Snooping.IGMP v1/v2 Snooping.Supports 256 IGMP groups.Supports at least 64 static multicast addresses.IGMP per VLAN.Supports IGMP Snooping Querier.Loopback Detection.802.3ad Link Aggregation:.DGS-1210 28/28P/28MP: Maximum of 14 groups/8 ports per group.DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group.DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group.LLDP.LLDP-MED.Jumbo Frame.Up to 9,216 bytes.Spanning Tree Protocol.802.1D STP.802.1w RSTP.802.1s MSTP (for DGS-1210-28MP only).Flow Control.802.3x Flow Control.HOL Blocking Prevention.Port Mirroring.One-to-One.Many-to-One.Supports Mirroring for Tx/Rx/Both.Multicast Filtering.Forwards all unregistered groups.Filters all unregistered groups.Configurable MDI/MDIX.MLD snooping v1/v2 (256 groups).VLAN.802.1Q.VLAN Group.Max. 256 static VLAN groups.Configurable VID from 1 - 4094.Asymmetric VLAN.Auto Voice VLAN.Max. 10 user-defined OUI.Max. 8 default OUI.Auto Surveillance VLAN.Quality of Service (QoS).802.1p Quality of Service.8 queues per port.Queue Handling.Strict.Weighted Round Robin (WRR).Bandwidth Control.Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps).QoS based on:.802.1p Priority Queues.DSCP.ToS.IPv6 Traffic Class.TCP/UDP port.L3 Features.IP Interface.Supports 1 interface.IPv6 Neighbor Discovery (ND).Static Routing (for DGS-1210-28MP only).64 IPv4 Static Route Entries.32 IPv4 Static Route Entries.Access Control List (ACL).Max. 50 access list.Max. 768 rules shared by IPv4, MAC and IPv6.Each rule can only be associated with a single port.ACL based on.802.1p priority.VLAN.MAC address.Ether type.IP address.DSCP.Protocol type.TCP/UDP port number.IPv6 Traffic Class.Security.Broadcast/Multicast/Unicast Storm Control.D-Link Safeguard Engine.DHCP Server Screening.IP-MAC-Port Binding (Smart Binding).Supports 512 address binding entries.ARP Inspection.ARP + IP Inspection.Supports DHCP Snooping.802.1X Port-based Access Control.ARP Spoofing Prevention.Max. 64 entries.Traffic Segmentation.SSH v2.SSL.Su.
