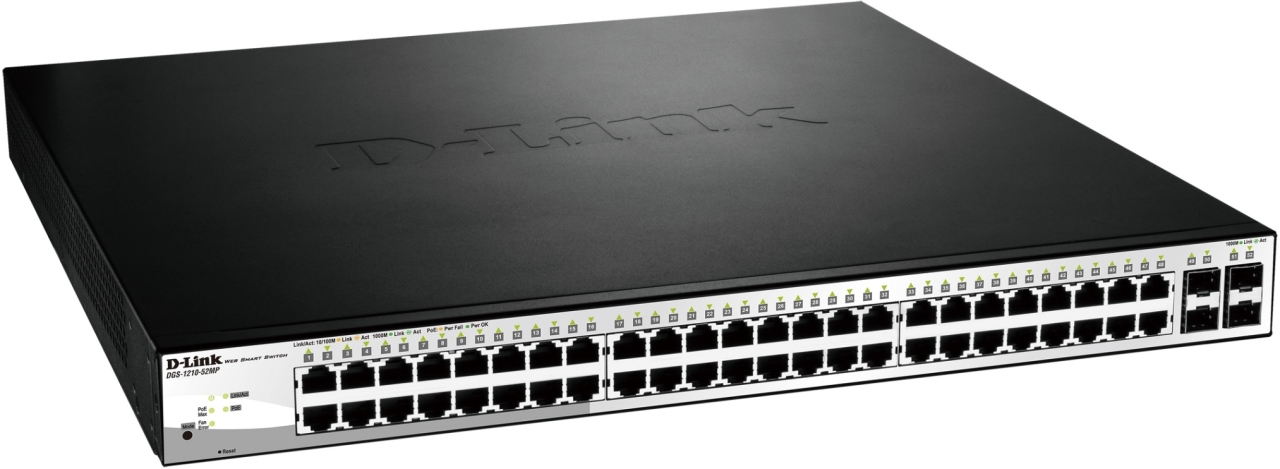

D-Link DGS-1210-52MP

DGS-1210-52MP: 52-Port Gigabit Max PoE Smart Managed Switch including 4 SFP ports (48 x PoE ports, fan).Features.Green Technology.Power saving via the following features:.Link Status detection.LED Shut-Off.Port Shut-Off.System Hibernation.Time-based PoE (DGS-1210-10P/28P/52P/52MP only).Security Features.Access Control List secures network.D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding.Port Security supports 64 MACs per port.ARP Spoofing Prevention.Intuitive Management.D-Link Network Assistant Utility or Web-based GUI.Built-in SNMP MIB for remote NMS (D-View 6.0).Compact CLI through Telnet.Advanced Features.Auto Surveillance VLAN.Loopback Detection automatically disables a port when a loop is detected.Cable Diagnostics allows administrators to determine cable status.SFP ports for flexibility.Auto MDI/MDIX.Interface.Number of 10/100/1000BASE-TX ports.DGS-1210-52/52P/52MP - 48 ports.Number of SFP ports.DGS-1210-20/28/28P/28MP/52/52P/52MP - 4 ports.PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget).DGS-1210-52MP (802.3af/802.3at/52 ports/370W).Performance.Switch Capacity.DGS-1210-52/52P/52MP - 104 Gbps.64-Byte Packet Forwarding Rate.DGS-1210-52/52P/52MP - 77.4 Mpps.MAC Address Table Size.16K.Packet Buffer.DGS-1210-52/52P/52MP - 3 MB per device.Jumbo Frame.Up to 9,216 Bytes.Physical & Environmental.Power Consumption (Standby/Maximum).DGS-1210-52MP - 48.9W / 483.1W (PoE).Power Input.10 to 240 VAC, 50/60HZ internal universal power supply.Dimensions (W x D x H).DGS-1210-52MP - 440 x 430 x 44 mm.Weight.DGS-1210-52MP - 5.78 kg.Ventilation.DGS-1210-52MP - smart fans.Heat Dissipation.DGS-1210-52MP - 1,648.23 BTU per hour.Temperature.Operating: -5° to 50°C (23° to 112°F).Storage: -20° to 70°C (-4° to 158°F ).Humidity.Operating: 0% ~ 95% non-condensing.Storage: 0% ~ 95% non-condensing.Certification.CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick.Software Feature.L2 Features.MAC Address Table.16K entries.IGMP Snooping.IGMP v1/v2 Snooping.Supports 256 IGMP groups.Supports at least 64 static multicast addresses.IGMP per VLAN.Supports IGMP Snooping Querier.Loopback Detection.802.3ad Link Aggregation:.DGS-1210 28/28P/28MP: Maximum of 14 groups/8 ports per group.DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group.DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group.LLDP.LLDP-MED.Jumbo Frame.Up to 9,216 bytes.Spanning Tree Protocol.802.1D STP.802.1w RSTP.802.1s MSTP (for DGS-1210-28MP only).Flow Control.802.3x Flow Control.HOL Blocking Prevention.Port Mirroring.One-to-One.Many-to-One.Supports Mirroring for Tx/Rx/Both.Multicast Filtering.Forwards all unregistered groups.Filters all unregistered groups.Configurable MDI/MDIX.MLD snooping v1/v2 (256 groups).VLAN.802.1Q.VLAN Group.Max. 256 static VLAN groups.Configurable VID from 1 - 4094.Asymmetric VLAN.Auto Voice VLAN.Max. 10 user-defined OUI.Max. 8 default OUI.Auto Surveillance VLAN.Quality of Service (QoS).802.1p Quality of Service.8 queues per port.Queue Handling.Strict.Weighted Round Robin (WRR).Bandwidth Control.Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps).QoS based on:.802.1p Priority Queues.DSCP.ToS.IPv6 Traffic Class.TCP/UDP port.L3 Features.IP Interface.Supports 1 interface.IPv6 Neighbor Discovery (ND).Static Routing (for DGS-1210-28MP only).64 IPv4 Static Route Entries.32 IPv4 Static Route Entries.Access Control List (ACL).Max. 50 access list.Max. 768 rules shared by IPv4, MAC and IPv6.Each rule can only be associated with a single port.ACL based on.802.1p priority.VLAN.MAC address.Ether type.IP address.DSCP.Protocol type.TCP/UDP port number.IPv6 Traffic Class.Security.Broadcast/Multicast/Unicast Storm Control.D-Link Safeguard Engine.DHCP Server Screening.IP-MAC-Port Binding (Smart Binding).Supports 512 address binding entries.ARP Inspection.ARP + IP Inspection.Supports DHCP Snooping.802.1X Port-based Access Control.ARP Spoofing Prevention.Max. 64 entries.Traffic Segmentation.SSH v2.SSL.Supports v1/v2/v3.Port Security.Supports up to 64 MAC addresses per port.Duplicate address detection.AAA.802.1X Authentication.Supports local/RADIUS database.Supports port-based access control.Supports EAP, OTP, TLS, TTLS, PEAP.IPv6 RADIUS Server.Support MD5 authentication.MIB/RFC Standards.RFC 783 TFTP.RFC 951 BootP/DHCP Client.RFC 1157 SNMP v1, v2, v3.RFC 1213 MIB II.RFC 1215 MIB Traps Convention.RFC 1350 TFTP.RFC 1493 Bridge MIB.RFC 1769 SNTP.RFC 1542 BootP/DHCP Client.RFC 1901 SNMP v1, v2, v3.RFC 1907 SNMP v2 MIB.RFC 1908 SNMP v1, v2, v3.RFC 2131 BootP/DHCP Client.RFC 2138 RADIUS Authentication.RFC 2139 RADIUS Authentication.RFC 2233 Interface Group MIB.RFC-2246 SSL.RFC 2475.RFC 2570 SNMP v1, v2, v3.RFC 2575 SNMP v1, v2, v3.RFC 2598 CoS.RFC 2618 RADIUS Authentication.RFC 2819 RMON v1.RFC 2865 RADIUS Authentication.RFC 3164 System Log.RFC 3195 System Log.RFC 3411-17 SNMP.D-Link Private MIB.LLDP MIB.Zone Defense MIB.2233 Interface Group MIB.OAM.Cable Diagnostics.Factory Reset.Management.Web-based GUI.D-Link Network Assistant Utility.Compact CLI.Telnet Server.TFTP Client.Configurable MDI/MDIX.SNMP.Supports v1/v2c/v3.SNMP Trap.Backup/Upgrade firmware.Smart Wizard.Upload/Download Configuration file.System Log.Max. 500 log entries.BootP/DHCP Client.SNTP.ICMP v6.IPv4/v6 Dual Stack.DHCP Auto Configuration.Time Setting.SNTP.RMONv1.Trusted Host.Green V3.0 Technology.Power Saving by:.Link Status.Time-based PoE: PoE ports can be turned on/off by port or system through schedule.LED Shutoff.System Hibernation.Port Shutoff.
