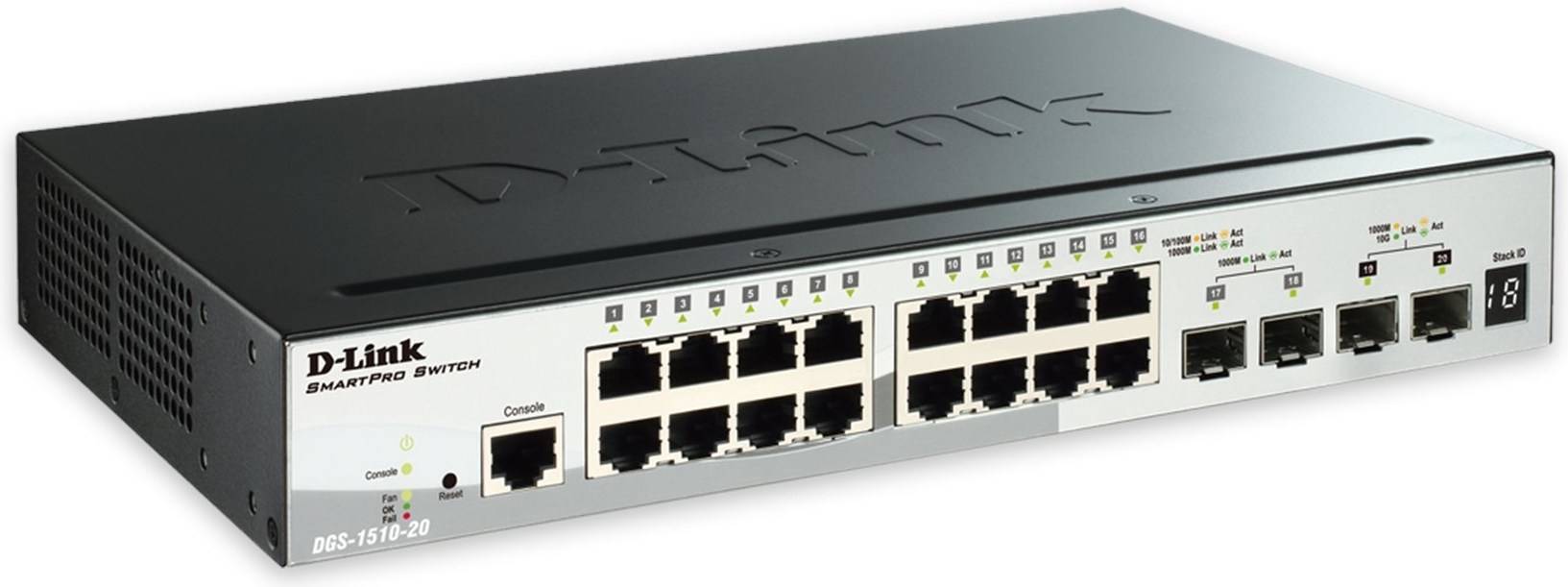

D-Link DGS-1510-20

Switche, D-Link, DGS-1510-20, Informace k záruce:.Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in.DGS-1510-20: 20-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans).OVERVIEW.The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port models, these switches also include 2 Gigabit SFP ports and 2 10G SFP+ ports.SPECIFICATIONS.GENERAL.Port Standards & Functions.IEEE 802.3 10BASE-T Ethernet.IEEE 802.3u 100BASE-TX Fast Ethernet.IEEE 802.3ab 1000BASE-T Gigabit Ethernet.802.3ae 10 GbE,.IEEE 802.3x Flow Control for Full-Duplex Mode,.Auto-negotiation.Number of Ports.16 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+.Network Cables.UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.).Full/Half Duplex.Full/half duplex for 10/100 Mbps and Gigabit speed.Media Interface Exchange.Auto or configurable MDI/MDIX.PERFORMANCE.Switching Capacity.76 Gbps.Transmission Method.Store-and-forward.MAC Address Table.16,000 entries per device.MAC Address Update.Up to 512 static MAC entries,.Enable/disable auto-learning of MAC addresses.Maximum 64 bytes Packet Forwarding Rate.56.54 Mpps.Packet Buffer Memory.1.5 MB per device.PHYSICAL & ENVIRONMENTAL.AC Input.100 to 240 VAC 50/60 Hz internal universal power supply.Maximum Power Consumption.20.3 W.Standby Power Consumption.12.2 W.Smart Fan Quantity.1.Acoustics.43.8 dB(A).Heat Dissipation.41.602 BTU/hr.Operation Temperature.-5 to 50 °C.Storage Temperature.-20 to 70°C.Operation Humidity.0% to 95% non-condensing.Storage Humidity.0% to 95% non-condensing.Dimensions.280 x 180 x 44 mm (11 x 7.09 x 1.73 inches).19” standard rack mounting width, 1U height.Weight.1.24 kg.Diagnostic LEDs.Power/Stacking ID/Fan (per device),.Link/Activity/Speed (per 10/100/1000 Mbps port),.Link/Activity/Speed (per Gigabit SFP port),.Link/Activity/Speed (per 10G SFP+ port).Certifications.CE, FCC, C-Tick, VCCI, BSMI, CCC.Safety cUL, CB.
