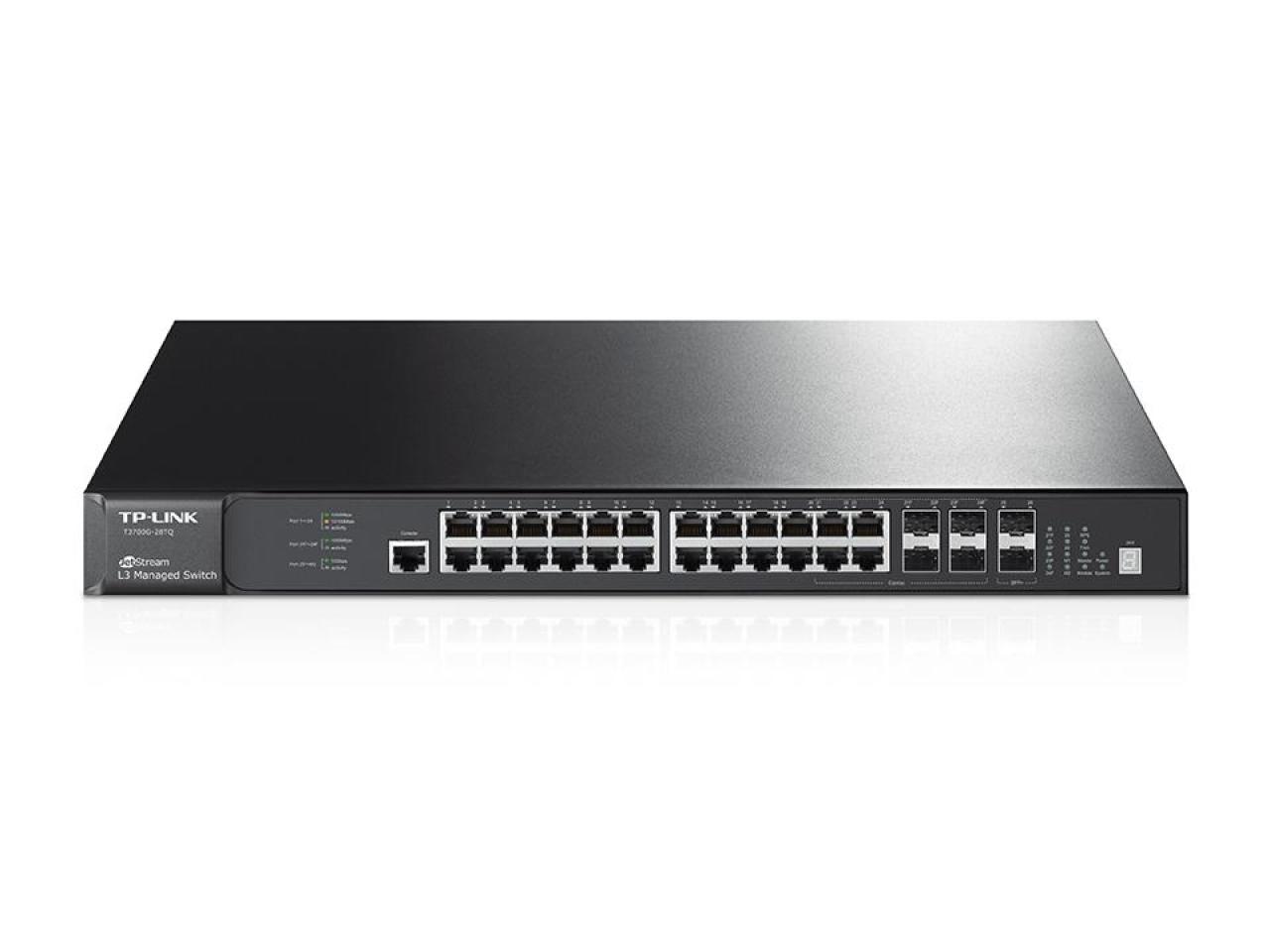

TP-Link T3700G-28TQ

TP-Link L3 Managed Switch, 24x1G,4x combo,2+2 10G SFP+ OVERVIEW * Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network * True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy * 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery * Removable power unit and redundant power supply functionality minimizes downtime * PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments SPECIFICATIONS HARDWARE FEATURES Standards and Protocols * IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p Interface * 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) * 4 combo gigabit SFP Slots * Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots) * 1 Console Port Network Media * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) * 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) * 100BASE-FX: MMF, SMF * 1000BASE-X: MMF, SMF * 10GBASE-LR * 10GBASE-SR Dimensions (W X D X H) * 440*330*44 mm Fan Quantity * 4 Power Consumption * 63W (220V/50Hz) max Power Supply * 100~240VAC, 50/60Hz PHYSICAL STACKING Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables * TXM431-SR * TXM431-LR * TXC432-CU1M * TXC432-CU3M Max Number of Stacking Ports Installable * 2 SFP+ No. of Units Per Stack * 8 Stacking Speed (Per Port) * 20 Gbps (Full-Duplex) PERFORMANCE Switching Capacity * Up to 128Gbps for a standalone switch Bandwidth/Backplane * Up to 320Gbps when 8 units in the stack MAC Address Table * 32K Packet Buffer Memory * 16 Mbits Packet Forwarding Rate * Up to 95.2Mpps for a standalone switch Jumbo Frame * 10240 Bytes Number of IP Interfaces * 128 Number of Routes * 12K Number of Static Routes * 256 SOFTWARE FEATURES L3 Features * Wire-speed IP forwarding * Static Routing * RIP v1, v2 * OSPF v2 * ECMP * PIM-SM/PIM-DM/IGMP * DHCP Server/Relay * ARP Proxy * VRRP Quality of Service * Support 802.1p CoS/DSCP priority * Support 8 priority queues * Queue scheduling: SP, WRR, SP+WRR * Port/Flow- based Rate Limiting * Voice VLAN L2 Features * IGMP Snooping V1/V2/V3 * 802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group) * Spanning Tree STP/RSTP/MSTP * BPDU Filtering/Guard * TC/Root Protect * Loop back detection * 802.3x Flow Control VLAN * Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) * IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP Access Control List * L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID * Time Range Based Security * IP-MAC-Port-VID Binding * IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN * DoS Defence * Dynamic ARP inspection (DAI) * SSH v1/v2 * SSL v2/v3/TLSv1 * Port Security * Broadcast/Multicast/Unknown-unicast Storm Control Management * Web-based GUI and CLI management * SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs * RMON (1, 2, 3, 9 groups) * DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 * CPU Monitoring * Port Mirroring * Time Setting: SNTP * Integrated NDP/NTDP feature * Firmware Upgrade: TFTP & Web * System Diagnose: VCT * SYSLOG & Public MIBS * Dual Image OTHERS Certification * CE, FCC, RoHS Package Contents * Switch, Power Cord, Quick Installation Guide, Resource CD, Rackmount Kit, Rubber Feet System Requirements * Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. Environment * Operating Temperature: 0°,C~40°,C * Storage Temperature: -40°,C~70°,C * Operating Humidity: 10%~90% non-condensing * Storage Humidity: 5%~90% non-condensing.
