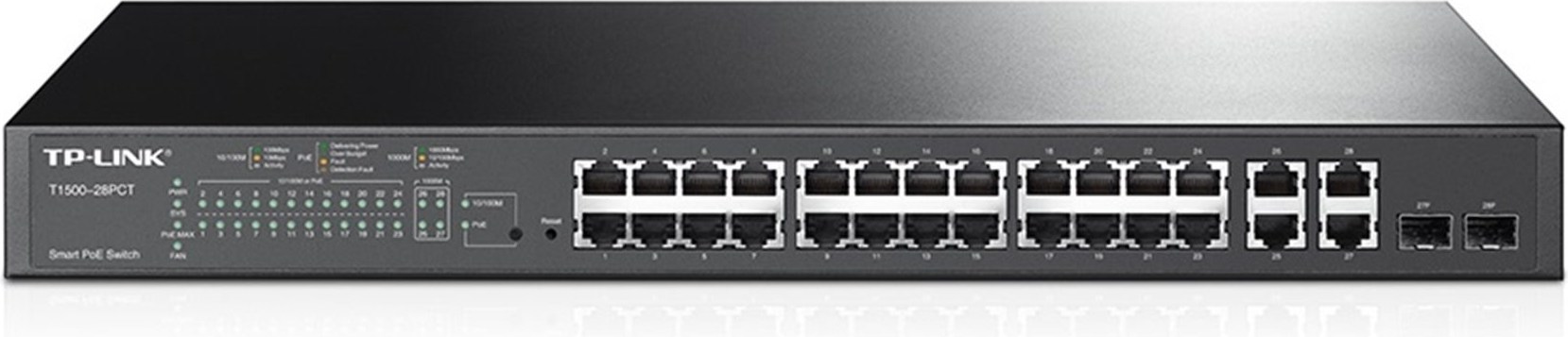

TP-Link TL-SL2428P

JetStream 24-Port 10100Mbps 4-Port Gigabit Smart PoE Switch T1500-28PCT TL-SL2428P Features 24 PoE ports, with total PoE power budget of 192W and useful PoE power management features Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment L2L3L4 QoS and IGMP snooping optimize voice and video applications WEBCLI managed modes, SNMP, RMON bring abundant management features Dual Firmware Image improves reliability and up-time of your network HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at Interface 24 10100Mbps RJ45 Ports Auto NegotiationAuto MDIMDIX 4 101001000Mbps RJ45 Ports Auto NegotiationAuto MDIMDIX 2 Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3, 4, 5 cable maximum 100m 100BASE-TX1000Base-T: UTP category 5, 5e or above cable maximum 100m 1000BASE-X: MMF, SMF Fan Quantity 2 PoE Budget 192W Dimensions W x D x H 17.37.11.7 in.44018044 mm Mounting Rack Mountable Max Power Consumption 21.7W 220V50Hz with no PD connected 229.73W 110V60Hz with 192W PD connected Max Heat Dissipation 74.04 BTUh with no PD connected 783.84 BTUh with 192W PD connected PERFORMANCE BandwidthBackplane 12.8Gbps Packet Forwarding Rate 9.5Mpps MAC Address Table 8k Jumbo Frame 9216 Bytes SOFTWARE FEATURES Quality of Service.. 802.1p CoS DSCP priority.. 8 priority queues.. Priority Schedule Mode - SP Strict Priority - WRR Weighted Round Robin.. Queue Weight Config.. Bandwidth Control - PortFlow based Rating Limit.. Smoother Performance.. Actions for flows - Mirrorto supported interface - Redirectto supported interface - Rate Limit - QoS Remark.. Storm Control - Multiple Control Modeskbpsratiopps - BroadcastMulticastUnknown-Unicast Control L2 Features.. Link Aggregation - static link aggregation - Up to 8 aggregation groups and up to 8 ports per group - 802.3ad LACP.. Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: Loop back detection, TC Protect, BPDU FilterProtect, Root Protect.. Loopback Detection.. Flow Control - 802.3x Flow Control.. Mirroring - Port Mirroring - One-to-One - Many-to-One - Flow-Based - IngressEgressBoth - CPU Mirroring.. Device Link Detect ProtocolDLDP L2 Multicast.. 512 IPv4,IPv6 shared multicast groups.. IGMP Snooping - IGMP v1v2v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication - Static Group Config.. MLD Snooping - MLD v1v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config.. Multicast VLAN Registration.. Multicast Filtering IPv6 Support.. IPv6 Dual IPv4IPv6.. Multicast Listener DiscoveryMLD Snooping.. IPv6 neighbor discovery ND.. Path maximum transmission unit MTU discovery.. Internet Control Message Protocol ICMP version 6.. TCPv6UDPv6.. IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnetv6 - IPv6 SNMP - IPv6 SSH - IPv6 SSL - HttpHttps - IPv6 TFTP VLAN.. VLAN Group - Max. 4K VLAN Groups.. 802.1Q tag VLAN.. MAC VLAN.. Protocol VLAN.. GVRP.. Voice VLAN Access Control List.. Support up to 230 entries.. Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday.. Time-based ACL.. MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type.. IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCPUDP Source Port - TCPUDP Destination Port - DSCPIP TOS.. IPv6 ACL.. Combined ACL.. Rule Operation - PermitDeny.. Policy Action - Mirror - Rate Limit - Redirect - QoS Remark.. ACL Rules Binding - Port Binding - VLAN Binding Security.. AAA.. 802.1X - Port based authentication - MACHost based authentication - Authentication Method includes PAPEAP-MD5EAP-TLSEAP-TTLSEAP-PEAP - MAB - Guest VLAN - Support Radius authentication and accountability.. IPIPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection.. IP Source Gurad - 253 Entries - Source IPSource MAC.. IPv6 Source Gurad - 183 Entries - Source IPv6 AddressSource MAC.. DoS Defend.. StaticDynamicPermanent Port Security - Up to 64 MAC addresses per port.. BroadcastMulticastUnicast Storm Control - kbpsratiopps control mode.. Port Isolation.. Secure web management through HTTPS with SSLv3TLS1.0.. Secure Command Line Interface CLI management with SSHv1SSHv2.. IPPortMAC based access control Management.. Web-based GUI.. Command Line InterfaceCLI through console port, telnet.. SNMPv1v2cv3.. SNMP TrapInform.. RMON 1,2,3,9 groups.. SDM Template.. DHCPBOOTP Client.. Dual Image, Dual Configuration.. CPU Monitoring.. Cable Diagnostics.. EEE.. System Log.. 802.1ab LLDP LLDP-MED MIBs.. MIB II RFC1213.. Interface MIB RFC2233.. Ethernet Interface MIB RFC1643.. Bridge MIB RFC1493.. PQ-Bridge MIB RFC2674.. RMON MIB RFC2819.. RMON2 MIB RFC2021.. Radius Accounting Client MIB RFC2620.. Radius Authentication Client MIB RFC2618.. Remote Ping, Traceroute MIB RFC2925.
