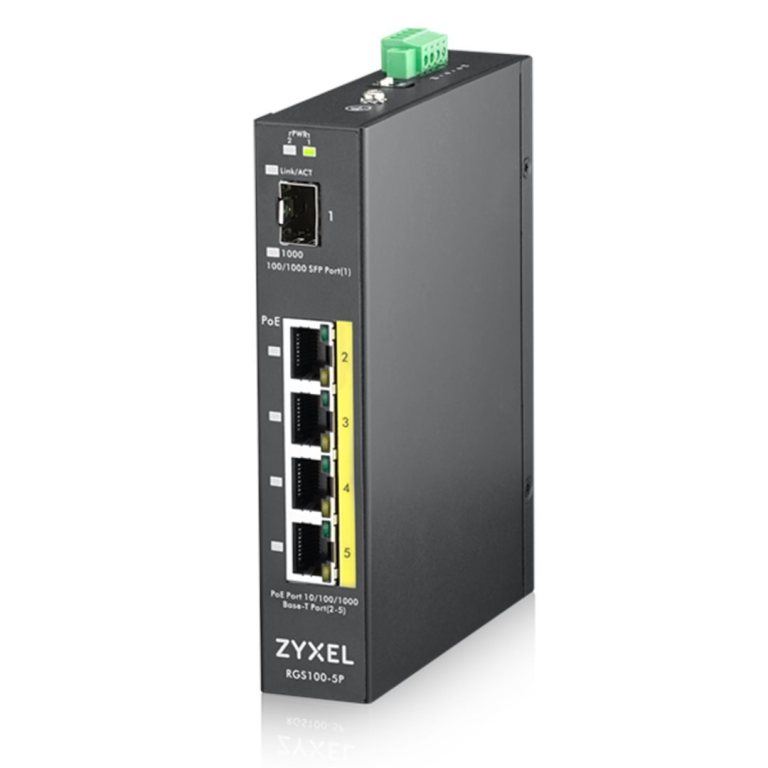

Zyxel RGS100-5P

5-port Gigabit switch: 4x GbE 1x SFP, PoE 802.3at, 30W, Power budget 120W, DIN railWall mount, IP30, operation temperature: from -40 to 75°C, dual power 12-58V DC Rugged and reliable design for harsh environments Zyxel’s newest rugged PoE switch RGS100-5P is designed with ruggedized concept to meet stringent outdoor and harsh network deployment scenario. The wide-ranging operating temperature from -40°C to 70°C enables RGS100-5P operates with reliability in harsh environment. Also, the IP30 standard metal mechanism and fanless design allow RGS100-5P withstand dusty environment. Easy extendibility and flexible installation The RGS100-5P comes with four Gigabit PoE ports to accommodate power-hungry devices with ease and one Gigabit SFP fiber uplink which can extend the network to long-distance nodes up to 40 km 43,744 yards away for added flexibility. To adopt different deployments, the RGS100-5P can be installed on either a DIN rail or wall mount for efficient use of cabinet space. High availability Equipped with dual DC power inputs, the RGS100-5P is capable of high-availability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD electrostatic discharge and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances. RGS100-5P 5-port GbE Unmanaged PoE Switch Switch class Unmanaged Port Density Total port count 5 1001000 Mbps PoE 4 Gigabit SFP 1 Performance Switching capacity Gbps 10 Forwarding rate Mpps 7.44 Packet buffer byte 0.25 M MAC address table 2 K Jumbo frame byte 9 K Power Input Dual power input 12V58VDC Max. power consumption watt 125 Total PoE power budget watt 120 Physical Specifications Item Dimensions WxDxHmmin.: 29.1 x 107.3 x 1391.15 x 4.22 x 5.47 Weight kglb.: 0.51.1 Packing Dimensions WxDxHmmin.: 70 x 177.8 x 2052.76 x 7 x 8.07 Weight kglb.: 0.71.54 Included accessories Wall mount kit DIN-rail mounting kit Green Feature Fanless Yes Environmental Specifications Operating environment Temperature : -40°C to 75°C-40°F to 167°F Temperature : 5% to 95% non-condensing Storage environment Temperature : -40°C to 85°C-40°F to 185°F Temperature : 5% to 90% non-condensing MTBF hr 568,430 Heat dissipation BTUhr 426.25 Acoustic noise dBA 0.
