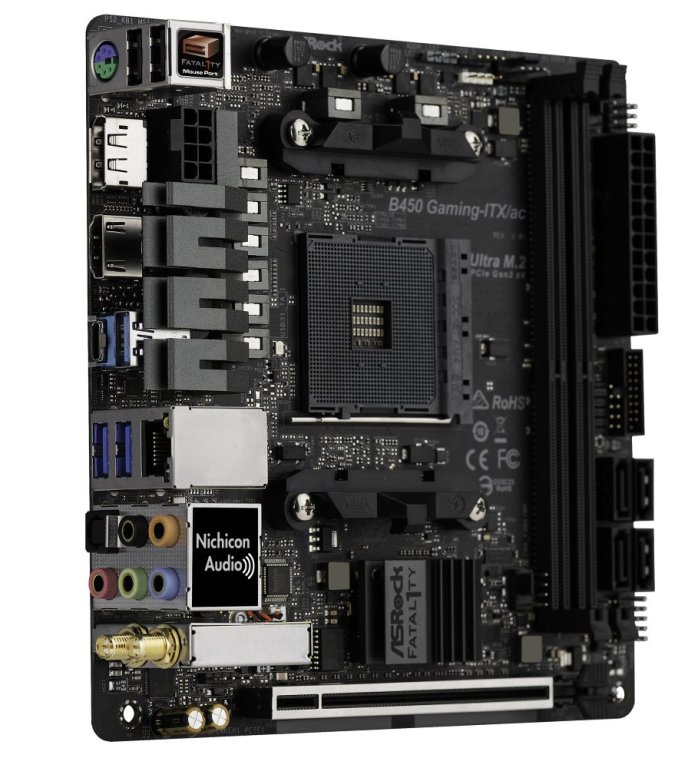

PodrobnostiFatal1ty B450 Gaming-ITX/ac
- AMD AM4 Socket
- Supports DDR4 3466+ (OC)
- 1 PCIe 3.0 x16
- Graphics Output: DisplayPort 1.2, HDMI 2.0
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 Gen2 (Rear Type-A+C)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2
TECHNICAL SPECIFICATIONSGaming ArmorPower- Hi-Density Power Connector (8 pin)Memory- 15µ Gold Contact in DIMM SlotsVGA Card- 15µ Gold Contact in VGA PCIe Slot (PCIE1)Internet- Intel® LANCooling- 2oz Copper PCBAudio- Creative Sound Blaster™ Cinema 5Unique FeatureUSB 3.1 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- Premium Power Choke- Dual-N MOSFET- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCB Intel® 802.11ac WiFiASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopCPU- AMD AM4 Socket- Digi Power design- 8 Power Phase design- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)Chipset- AMD Promontory B450Memory- Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*- Max. capacity of system memory: 32GB**- 15µ Gold Contact in DIMM SlotsMore info in specification.Graphics- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- Integrated AMD Radeon™ R-Series Graphics in A-series APU*- DirectX 12, Pixel Shader 5.0- Max. shared memory 2GB- Dual graphics output: Support HDMI and DisplayPort 1.2 by independent display controllers- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI 2.0 monitor is required)- Supports HDCP with HDMI 2.0 and DisplayPort 1.2 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports*Actual support may vary by CPUSlotsAMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*AMD Ryzen series CPUs (Raven Ridge)- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)- 15µ Gold Contact in VGA PCIe Slot (PCIE1)*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUsSupports NVMe SSD as boot disksStorage- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug- 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)**Supports NVMe SSD as boot disksLAN- Gigabit LAN 10/100/1000 Mb/s- GigaLAN Intel® I211AT- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXEWireless LAN- Intel® 802.11ac WiFi Module- Supports IEEE 802.11a/b/g/n/ac- Supports Dual-Band (2.4/5 GHz)- Supports high speed wireless connections up to 433Mbps- Supports Bluetooth 4.2 / 3.0 + High speed class IIConnector- 1 x LPC Header- 1 x Addressable LED Header*- 1 x AMD Fan LED Header**- 1 x CPU Fan Connector (4-pin)***- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15µ Gold Audio Connector)- 1 x AMD LED Fan USB Header- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*Supports in total up to 5V/3A, 15W LED Strip**The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- Nichicon Fine Gold Series Audio Caps- 120dB SNR DAC with Differential Amplifier- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Line Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- Supports Creative Sound Blaster™ Cinema 5Rear panel I/O- 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.2- 1 x Optical SPDIF Out Port- 2 x USB 2.0 Ports (Supports ESD Protection)*- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*1 x Fatal1ty Mouse Port (USB 2.0) is includedSoftware and UEFISoftware- ASRock F-Stream- ASRock Polychrome RGB- ASRock Key Master- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarBIOS- 128Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment Accessories- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5 GHz Antennas- 1 x Screw for M.2 Socket Hardware Monitor- Temperature Sensing: CPU, Chassis/Water Pump Fans- Fan Tachometer: CPU, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU VcoreOperating System- Microsoft® Windows® 10 64-bitForm Factor- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cmCertifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required).
