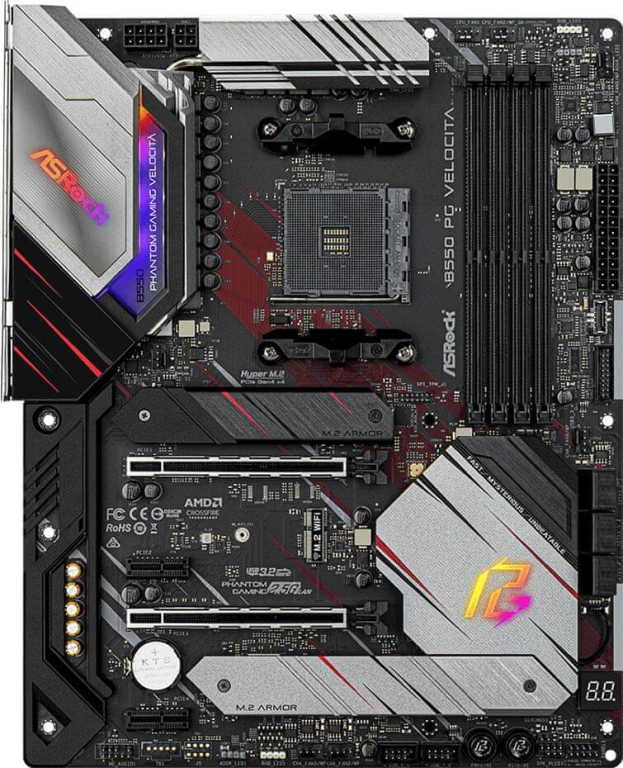

Asrock B550 PG Velocita

CPU Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors Digi Power design 14 Power Phase design Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. Chipset AMD B550 Memory Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC& non-ECC, un-buffered memory AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC& non-ECC, un-buffered memory Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) memory modules 15µ Gold Contact in DIMM Slots For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. Ryzen Series CPUs (Matisse): Graphics Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with HDMI 2.1 Port Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft® PlayReady Actual support may vary by CPU The Max shared memory 16GB requires 32GB system memory installed. Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection 120dB SNR DAC with Differential Amplifier NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) Pure Power-In Direct Drive Technology PCB Isolate Shielding Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Gold Audio Jacks 15µ Gold Audio Connector Nahimic Audio LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE Slots AMD Ryzen series CPUs (Matisse) 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode) 2 x PCI Express 3.0 x1 Slots Supports AMD Quad CrossFireX™ and CrossFireX™ 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 15µ Gold Contact in VGA PCIe Slot (PCIE1) Supports NVMe SSD as boot disks Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled. Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) Ultra USB Power is supported on USB_34 ports. ACPI wake-up function is not supported on USB_34 ports. Software and UEFI Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 2oz Copper PCB OS Microsoft® Windows® 10 64-bit.
