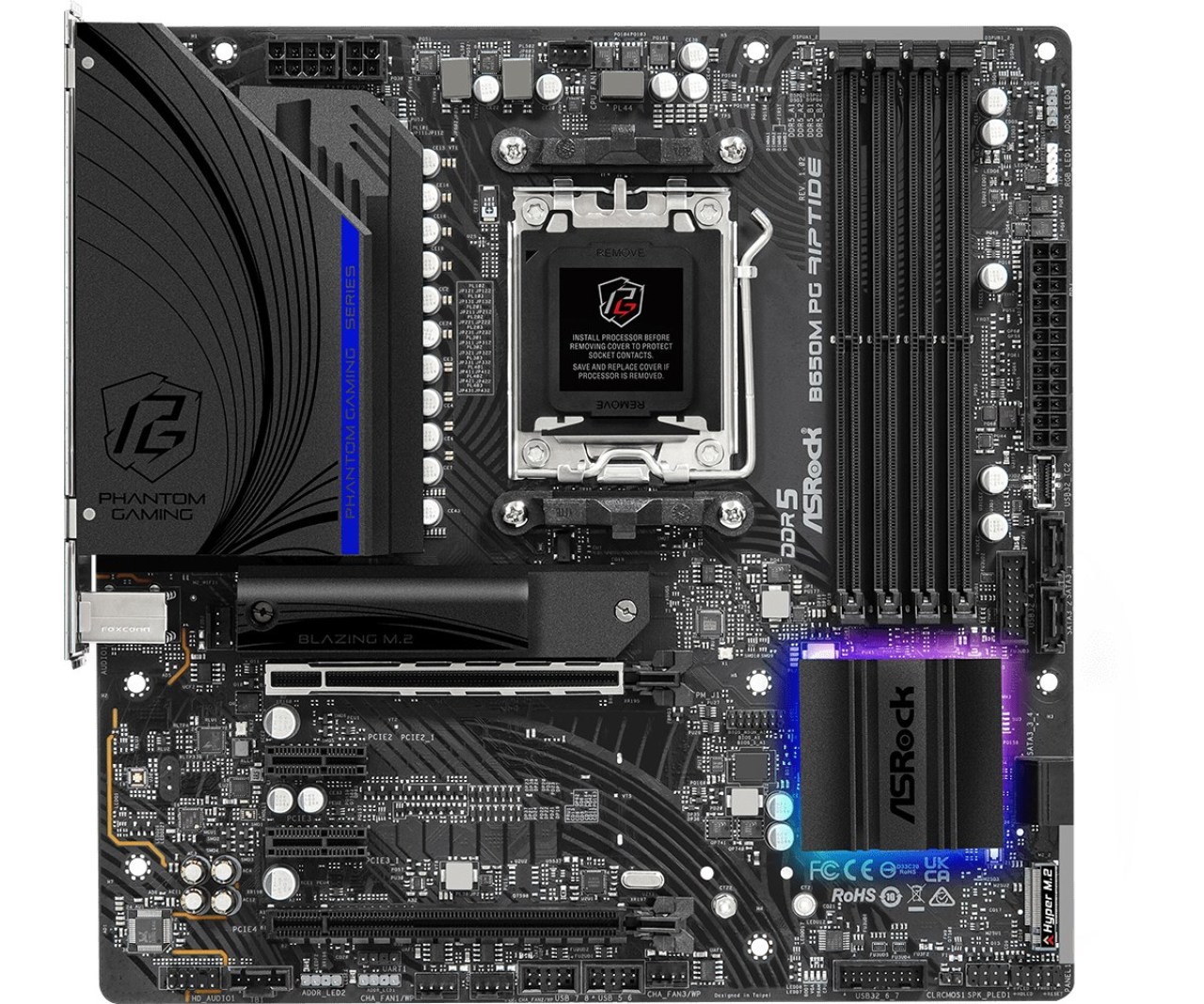

Asrock B650M PG Riptide

B650M PG Riptide Supports AMD Ryzen™ 7000 Series Processors 12+2+1 Phase Power Design, Dr.MOS 4 x DDR5 DIMMs, supports up to 6200+(OC) 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1 Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 4 SATA3 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front) Realtek 2.5G LAN Unique Feature Superb Productivity- PCIe Gen5 (M.2)- Dual Channel DDR5Rock-Solid Durability- 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor- Flexible Integrated I/O ShieldUltrafast Gaming- 2.5G LAN- ASRock Lightning Gaming PortsEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker CPU - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors Chipset - AMD B650 Memory - Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 6200+(OC)- Max. capacity of system memory: 128GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Graphics Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Phantom Gaming LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control Slots CPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) - Supports AMD CrossFire™- 15µ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks Storage CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disksSupports ASRock U.2 Kit RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *Requires additional M.2 NVMe expansion cards to support RAID 10 USB - 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear)- 1 x USB 3.2 Gen1 Type-C (Front)- 6 x USB 3.2 Gen1 (2 Rear, 4 Front)- 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection Connector - 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x 4 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~3/WP support the fan power up to 2A (24W).CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)- 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)- 4 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Phantom Gaming LAN Software- ASRock Polychrome SYNC*UEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - 1 x User Manual- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm- 2oz Copper PCB OS - Microsoft® Windows® 10 64-bit / 11 64-bit Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required).
