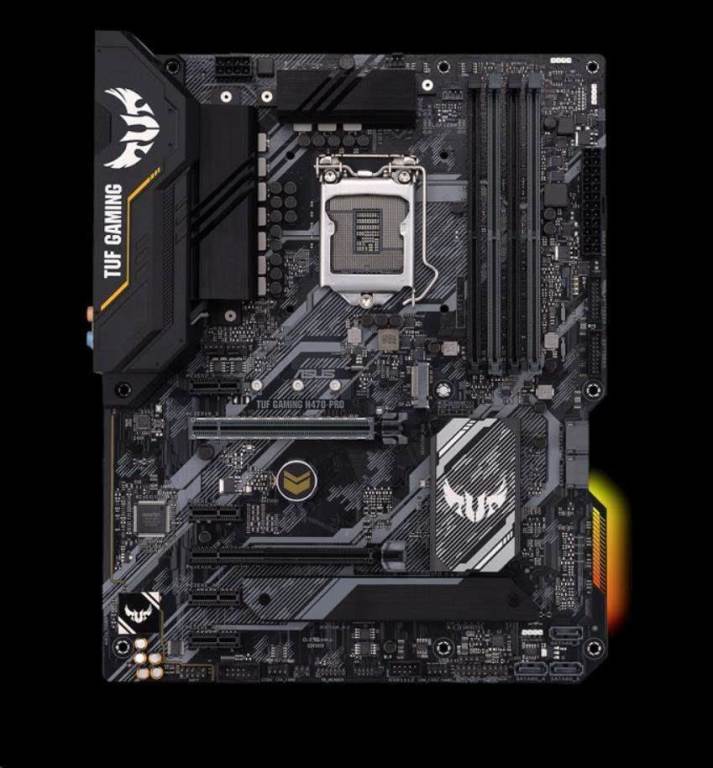

Asus H470 Pro Gaming

CPU Build in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Build in Intel® H470 Memory 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Graphics specifications may vary between CPU types. Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H470 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe x1 Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® H470 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA& PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 5 x SATA 6Gb/s port Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Intel® I219-V 1Gb Ethernet TUF LANGuard Audio Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : Optical S/PDIF out port(s) at back panel Audio cover Audio Shielding Dedicated audio PCB layers Premium Japanese audio capacitors Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB Ports Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port (1 x Type-A +1 x USB Type-C®) 2 x USB 3.2 Gen 1 port (2 x Type-A) 2 x USB 2.0 port Front USB Port ( Total 7 ) 2 x USB 3.2 Gen 1 port (4 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x USB 2.0 port (1 x Type-A) ASUS Exclusive Software Armoury Crate Aura Sync AI Suite 3: Performance And Power Saving Utility Turbo V Evo EPU Digi+ VRM Fan Xpert 4 System information EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS Exclusive Software Armoury Crate Aura Sync AI Suite 3: Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 4 System information EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Back I/O Ports 1 x PS/2 keyboard/mouse combo port 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 2 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack Internal I/O Ports 1 x CPU Fan connector 1 x CPU OPT Fan connector 3 x Chassis Fan connector 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header 2 x USB 3.2 Gen 1(up to 5Gbps) connector support additional 4 USB 3.2 Gen 1 port 1 x USB 2.0 connector support additional 1 USB 2.0 port 2 x M.2 Socket 3 5 x SATA 6Gb/s connector 1 x Thunderbolt header 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector 1 x Front panel audio connector (AAFP) 1 x System panel (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper 1 x COM port header 1 x USB 2.0 connector support additional 2 USB 2.0 port Operating System Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ).
