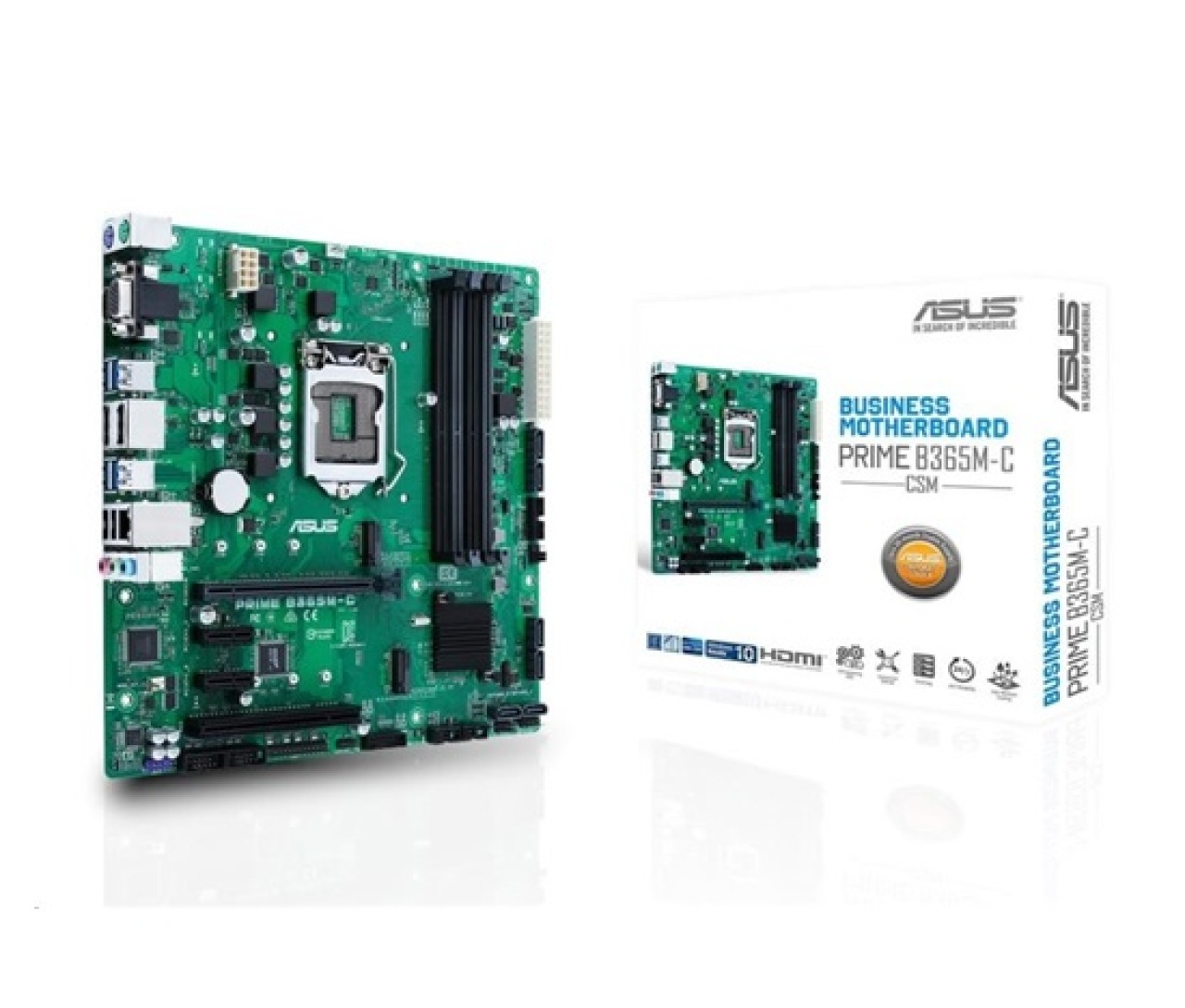

Asus PRIME B365M-C/CSM

Veškeré Informace o ASUS CSM deskám najdete zde:.ASUS CSM desky obsahují doživotní licenci speciálního softwaru pro vzdálenou správu a management v hodnote 40 USD.ASUS CSM desky mají speciální servis: Pick up & Return servis.Youtube videa:.Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors.Supports Intel® 14 nm CPU.Supports Intel® Turbo Boost Technology 2.0.The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.Refer to www.asus.com for CPU support list.4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory.Supports Intel® Extreme Memory Profile (XMP).Hyper DIMM support is subject to the physical characteristics of individual CPUs.Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).The maximum memory frequency supported varies by processor.DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.Integrated Graphics Processor- Intel® HD Graphics support.Multi-VGA output support : HDMI/DisplayPort /D-Sub ports.Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz.Supports D.Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz.Maximum shared memory of 1024 MB (for iGPU exclusively).Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™.Supports up to 3 displays simultaneously.1 x PCIe 3.0/2.0 x16.2 x PCIe 3.0/2.0 x1.1 x PCI.Intel® B365 Chipset :.1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode).1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode).Support Raid 0, 1, 5.Intel® B365 Chipset :.6 x SATA 6Gb/s port(s),.Support Raid 0, 1, 5, 10.Intel® Optane™ Memory Ready.Intel® I219V, 1 x Gigabit LAN Controller(s).Intel® B365 Chipset :.8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board).Intel® B365 Chipset :.6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board).Bespoke Motherboard Design & Business Focused Features :.ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen.ASUS Event Log: Record activities of system and provides information in BIOS.ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design.Anti.24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment.Easy Assembly Design:.Fixed.. position&Color.. coded Connectors: Enable easy identification and cable.Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage.Digi+VRM.1 x PS/2 keyboard (purple).1 x PS/2 mouse (green).1 x D-Sub.2 x DisplayPort.1 x HDMI.1 x LAN (RJ45) port(s).4 x USB 3.1 Gen 1 Type-A.2 x USB 2.0.3 x Audio jack(s).1 x MONO out header *2.2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s).2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s).1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode).1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only).1 x LPT header.2 x COM port(s) connector(s).6 x SATA 6Gb/s connector(s).1 x CPU Fan connector(s) (1 x 4 -pin).2 x Chassis Fan connector(s) (2 x 4 -pin).1 x 24-pin EATX Power connector(s).1 x 8-pin ATX 12V Power connector(s).1 x Front panel audio connector(s) (AAFP).1 x Internal speaker connector(s).1 x System panel(s).1 x Chassis Intrusion connector(s).1 x 14-1 pin TPM connector.1 x LPC Debug header.User''s manual.I/O Shield.2 x SATA 6Gb/s cable(s).1 x M.2 Screw Package.1 x Supporting DVD.Informace jak reklamovat: https://eu-rma.asus.com/pickup_europe/rog_tuf/landing_csm.aspx.
