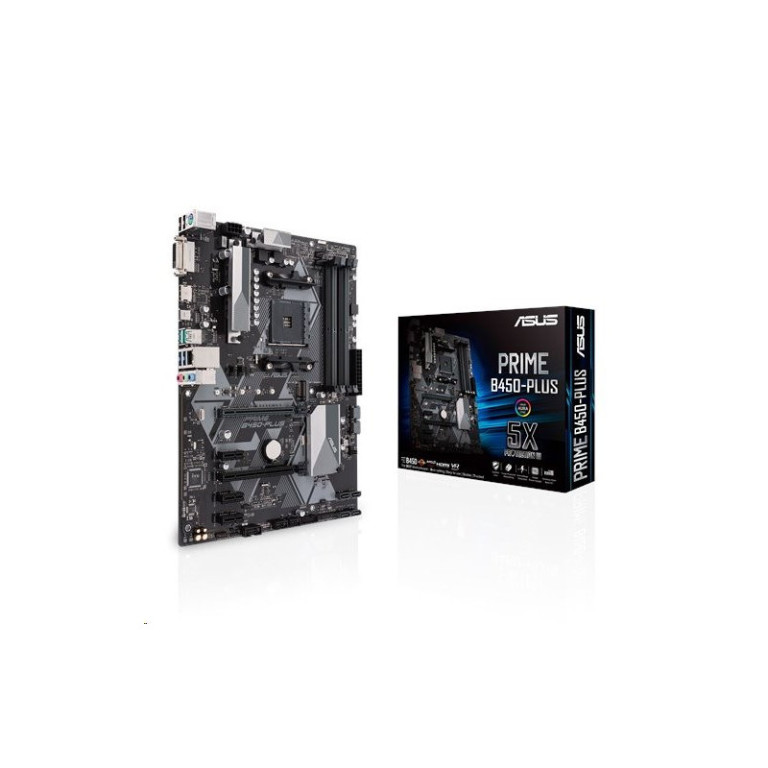

Asus PRIME B450-PLUS

Základní deska AMD AM4 ATX s headerem Aura Sync RGB, DDR4 3200MHz, M.2, HDMI 2.0b, SATA 6Gb/s a USB 3.1 Gen 2 Fan Xpert 4 Core: Kompletní ovládání ventilátorů a čerpadla AIO a snímač teploty GPU pro chlazení během hry Ultra rychlá konektivita: Výborná flexibilita s USB 3.1 Gen 2 a nativním M.2 Header ASUS Aura Sync: Vestavěný konektor pro RGB LED pásky, snadno synchronizovaný s neustále se rozšiřujícím portfoliem hardwaru Aura Sync 5X Protection III: Vícenásobné hardwarové zabezpečení pro ochranu celého systému Procesor AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list Čipová sada AMD B450 Operační paměť AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Grafická karta Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Podpora více grafických procesorů Supports AMD CrossFireX™ Technology Rozšiřující sloty AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 Úložný prostor AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 2 x SATA 6Gb/s port(s) AMD B450 chipset : 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 LAN Realtek® RTL8111H ASUS LAN Guard Zvuk Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity USB Porty AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 2 x USB 3.1 Gen 1 port(s) (2 at back panel,, Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 1 x USB 3.1 Gen 1 port(s) (1 at back panel,, USB Type-CTM) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel,, Type-A) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel,, 4 at mid-board) Speciální funkce ASUS TUF PROTECTION - ASUS SafeSlot Core: Fortified PCIe with solid soldering - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Zadní vstupy a výstupy 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-CTM 2 x USB 3.1 Gen 2 (teal blue)Type-A, 2 x USB 3.1 Gen 1 (blue) Type-A, 2 x USB 2.0 3 x Audio jack(s) Vnitřní vstupy a výstupy 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header Příslušenství User''s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WOL by PME, PXE Operační systém Windows® 10 64-bit Formát ATX Form Factor 12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) Poznámka *1 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
