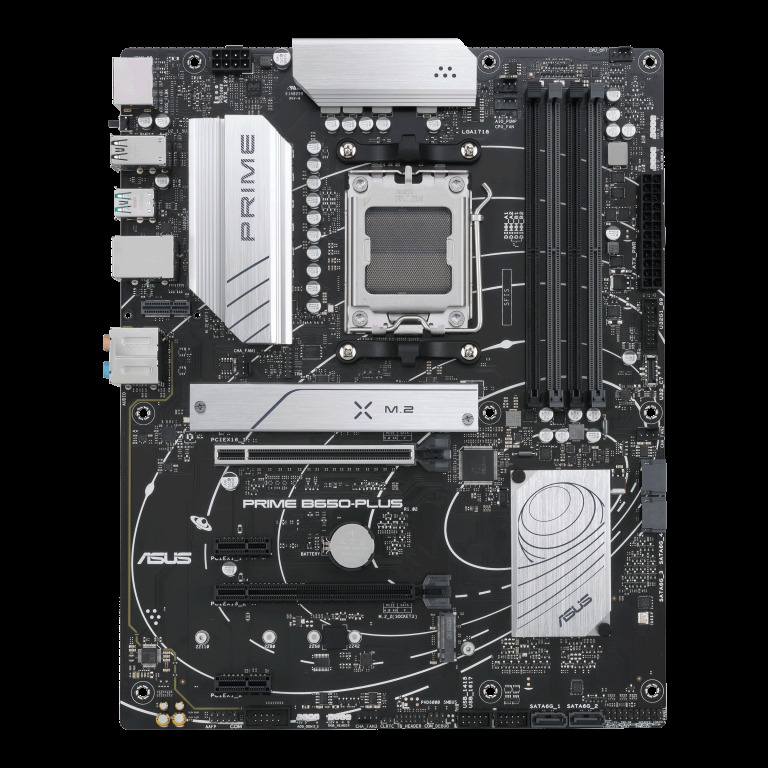

Asus PRIME B650-PLUS

PRIME B650-PLUS AMD B650 ATX motherboard with DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, USB4® Support and Arua Sync support AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C®, USB4® Support ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors** Refer to www.asus.com for CPU support list. Chipset AMD B650 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Graphics 1 x DisplayPort**1 x HDMI® port**** Graphics specifications may vary between CPU types.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD B650 Chipset1 x PCIe 4.0 x16 slot (support x4 mode)2 x PCIe 4.0 x1 slots* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD B650 Chipset4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. Ethernet 1 x Realtek 2.5Gb EthernetWireless & BluetoothVertical M.2 slot only (Key E, PCIe)** Wi-Fi module is sold separately. USB Rear USB (Total 8 ports)4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers Back Panel I/O Ports 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI® port1 x Vertical M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C® )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header Special Features ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCoolAura Sync- Aura RGB header- Addressable Gen 2 headers Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power SavingAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerASUS CPU-ZNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package1 x Screw package for M.2 SSDDocumentation1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ).
