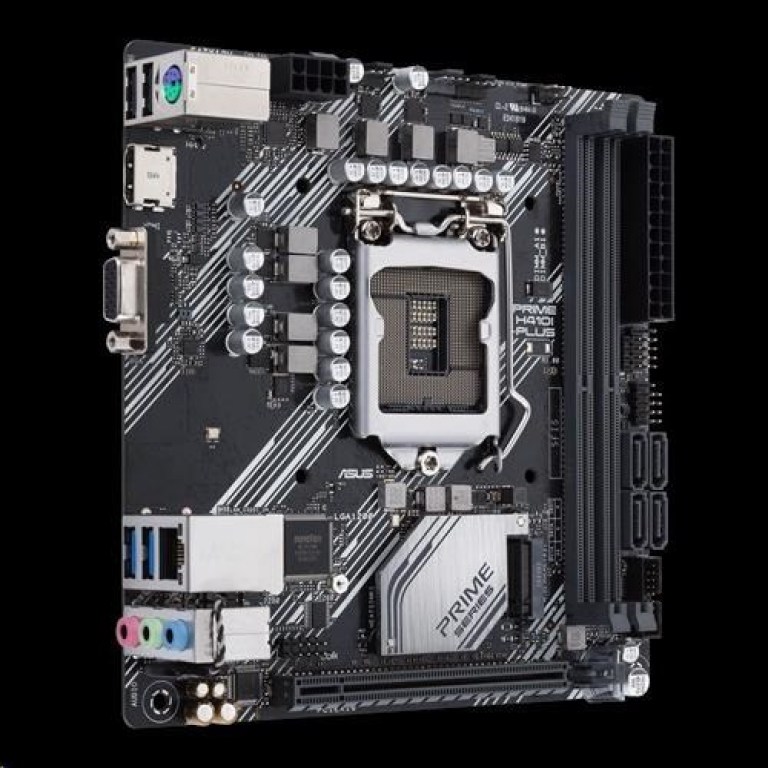

Asus PRIME H410I-PLUS

Intel® H410 (LGA 1200) Mini-ITX motherboard, M.2, DDR4 2666MHz, HDMI,D-SUB, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors Enhanced power solution: 4+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery ASUS OptiMem II: Careful routing of traces and vias to preserve signal integrity for improved memory stability. Fan Xpert 4: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming. 5X Protection III: Multiple hardware safeguards for all-round protection. CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. *Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel® CPU support list. Chipset Intel® H410 Memory 2 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Supports Intel® Extreme Memory Profile (XMP) OptiMem II Graphic Integrated Graphics Processor- Intel® UHD Graphics support 1 x HDMI 1.4b 1 x D-Sub *Graphics specifications may vary between CPU types. Expansion Slots 16-Lane CPU- 1 x PCIe 3.0/2.0 x16 (x16 mode) Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 4 x SATA 6Gb/s port(s) LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC * - Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 2 x USB 2.0 port(s) Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-Slot - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-Slot - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-Slot AURA Sync - Aura RGB header(s) Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector Accessories User''s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 10 64-bit Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ).
