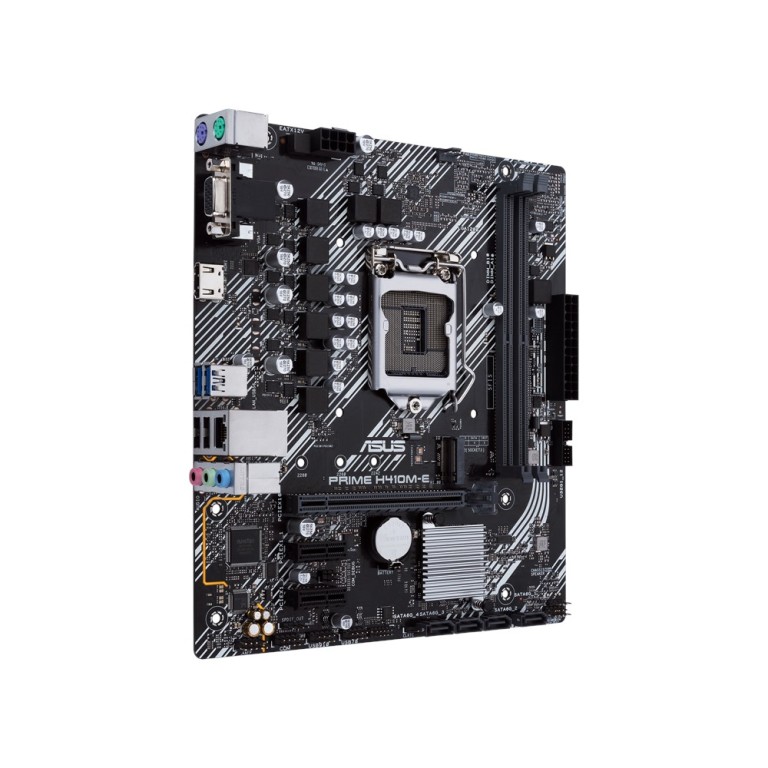

Asus PRIME H410M-E

Chipset: Intel® H410 Rozměrový formát: mATX Form Factor (226 mm x 203 mm) Podpora pro procesory: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 2x DDR4 DIMM (dual channel) Podpora pro paměti: 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 *Intel® Extreme Memory Profile (XMP) Grafická karta: *Integrated Graphics Processor (na základě procesoru) Zvuková karta: *Realtek ALC887 7.1-Channel High Definition Audio CODEC Síťová karta: *Realtek® RTL8111H Rozšiřující sloty: *1x PCIe 3.0 x16 (x16 mode) *2x PCIe 3.0 x1 RAID řadič: není SATA: *4x SATA 6 Gb/s M.2: *1x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) USB: *zadní USB porty ( celkem 4 ) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) *přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s) Interní porty: *1x CPU Fan connector(s) *1x Chassis Fan connector(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) *1x COM port(s) connector(s) *4x SATA 6Gb/s connector(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x Clear CMOS jumper(s) *1x System panel connector *1x Speaker connector Externí porty: *1x PS/2 keyboard (purple) *1x PS/2 mouse (green) *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 1 Type-A *2x USB 2.0 *3x Audio jack(s) Obsah balení: *I/O Shield *2x SATA 6Gb/s cable(s) *1x M.2 Anchor *1x Supporting DVD *User manual BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/PRIME-H410M-E/overview/.
