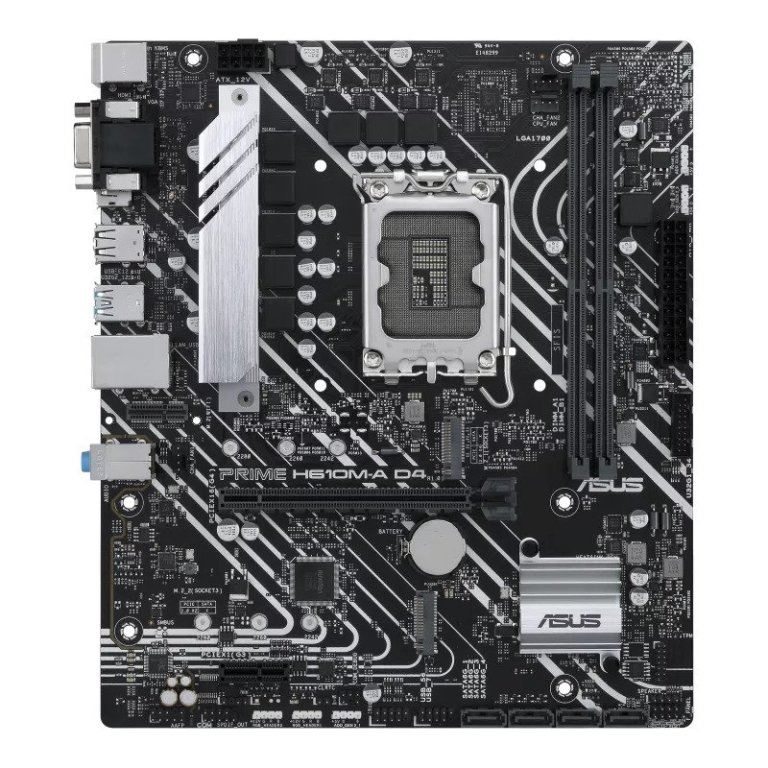

Asus PRIME H610M-A D4-CSM

PRIME H610M-A D4-CSM Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+ Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 2 ports Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware ASUS Control Center Express (ACCE) for easier IT endpoint management CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H610 ChipsetMemory2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics 1 x DisplayPort**1 x D-Sub port1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 12th Gen Processors1 x PCIe 4.0 x16 slotIntel® H610 Chipset1 x PCIe 3.0 x1 slot Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® H610 ChipsetM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)4 x SATA 6Gb/s ports Ethernet 1 x Intel® 1Gb Ethernet Wireless & Bluetooth V-M.2 slot only (Key E, CNVi & PCIe)** Wi-Fi module is sold separately. USB Rear USB (Total 6 ports)2 x USB 3.2 Gen 2 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 5 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI® port1 x D-Sub port1 x V-M.2 slot (Key E)1 x Intel® 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x COM Port header1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-SlotASUS Thermal Solution- VRM heatsink designAURA Sync- AURA RGB headers- Addressable Gen 2 headers Software Features ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 2+AI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMASUS CPU-ZIT Management software supported- ASUS Control Center Express(ACCE)Norton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw packageInstallation Media1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User guide Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor mATX Form Factor9.6 inch x 8.3 inch (24.4 cm x 21.1 cm).
