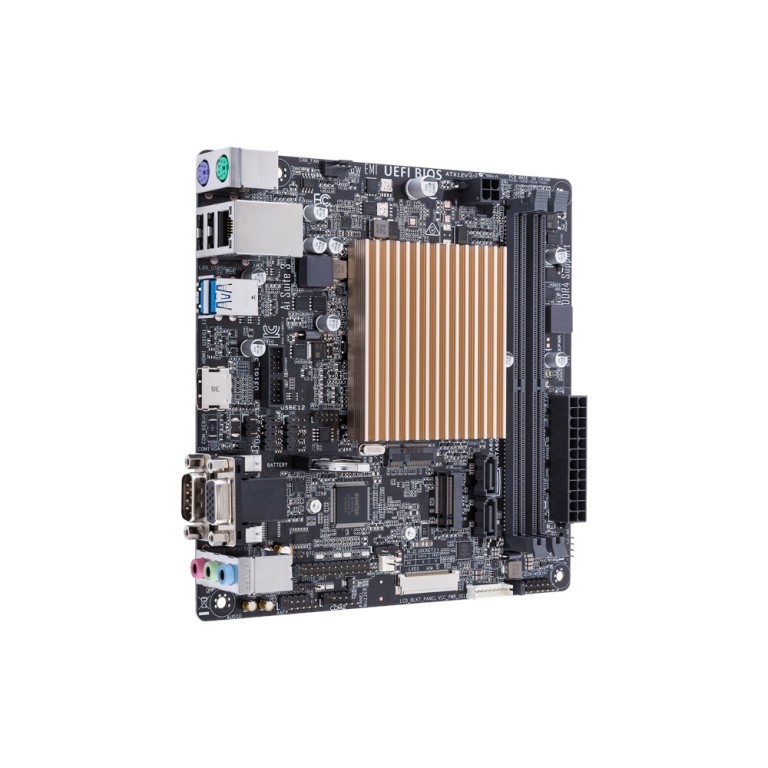

PodrobnostiPRIME J4005I-CLow-power, fan-less motherboard for Intel Celeron® SoC J4005 processor, with 2 x DDR4 2400/2133 MHz, 5X Protection II and HDMI/D-Sub/LVDS support.
- Proven quality - 5X Protection. 1000+ compatible devices. 8000+ validation hours.
- AI Suite 3:One-stop access to innovative ASUS features
- New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added
TECHNICAL SPECFICATIONMemory2 x U-DIMM, Max. 8GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).GraphicIntegrated Graphics Processor Multi-VGA output support : HDMI/RGB/LVDS ports - Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 512 MB (for iGPU exclusively)Supports up to 3 displays simultaneouslyStorage1 x M.2 Socket 3,, with M Key, type 2260/2280 storage devices support (PCIE mode)2 x SATA 6Gb/s port(s),LANRealtek® RTL8111H, 1 x Gigabit LAN Controller(s)AudioRealtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2- Supports : Jack-detection, Front Panel Jack-retaskingUSB Ports Built-in Controller: 4 x USB 3.1 Gen 1 port(s) (2 at back panel,, 2 at mid-board)Built-in Controller: 2 x USB 2.0 port(s) (2 at back panel, )GL852G USB Hub: 4 x USB port(s) (4 at mid-board)Special FeaturesASUS 5X Protection II:- ASUS LANGuard - 2.5X higher surge tolerance- ASUS Overvoltage Protection - World-class circuit-protecting power design- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability- ASUS ESD Guards - Electrostatic discharge protectionASUS Exclusive Features:- AI Suite 3- Ai Charger ASUS Quiet Thermal Solution:- Stylish Fanless Design Heat-sink solutionASUS EZ DIY:- ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-DIMMOperating System SupportWindows® 10 64-bitLinuxBack I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 1, 2 x USB 2.0 1 x COM port(s)3 x Audio jack(s)Internal I/O Ports2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode)1 x LPT header1 x COM port(s) connector(s)2 x SATA 6Gb/s connector(s)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Chassis Intrusion connector(s)1 x Clear CMOS jumper(s)1 x Panel off header1 x LVDS connector(s)1 x System panel connector1 x Flat panel display brightness connector1 x Display panel VCC power selector1 x Speaker connectorAccessoriesUser''s manualI/O Shield2 x SATA 6Gb/s cable(s)2 x M.2 Screw PackageBIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP readyManageabilityWfM 2.0, DMI 2.0, WOL by PME, PXESupport DiscDriversASUS UtilitiesEZ Update Anti-virus software (OEM version)Form FactorThin Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )Note*1 We recommend that you use 8GB or less memory modules.*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
