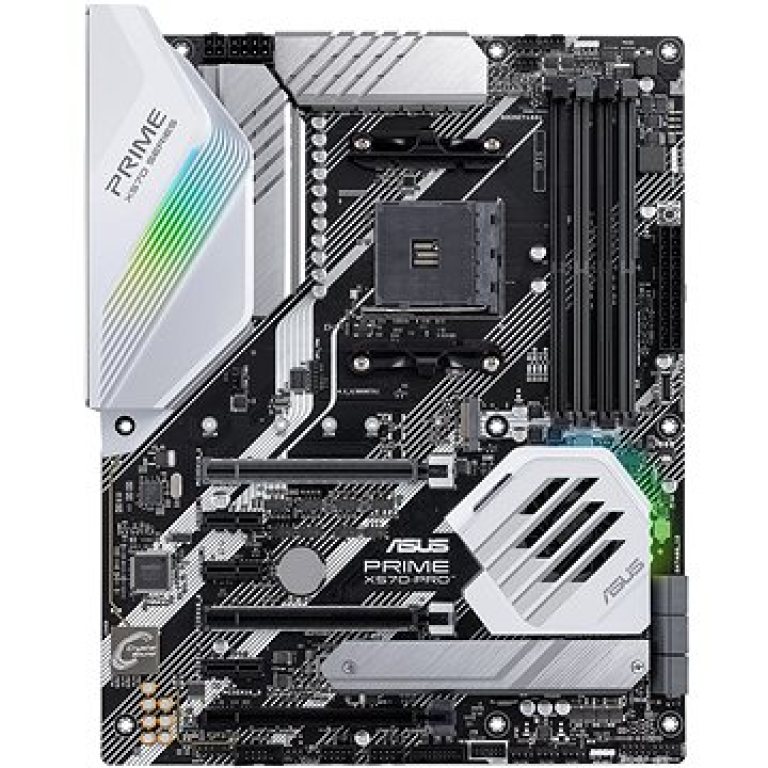

PodrobnostiPRIME X570-PROAMD AM4 ATX motherboard with PCIe Gen4, dual M.2, HDMI, SATA 6Gb/s and USB 3.2 Gen 2 front-panel connector
- Enhanced power solution: Premium components better power efficiency
- 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
- Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: Supreme flexibility with PCIe Gen 4 support, dual M.2 support, USB 3.2 Gen 2 ports and front-panel header
- M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips
TECHNICAL SPECIFICATIONSCPUAMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors * Refer to www.asus.com for CPU support list* Due to CPU limitation, CPU cores supported varies by processors.ChipsetAMD X570Memory3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory capacity supported vary depending on the CPU you installed.GraphicIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 HzMulti-GPU Support3rd and 2nd Gen AMD Ryzen™ ProcessorsSupports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics ProcessorsSupports AMD 2-Way CrossFireX™ TechnologyExpansion Slots3rd Gen AMD Ryzen™ Processors2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1Storage3rd Gen AMD Ryzen™ Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support6 x SATA 6Gb/s port(s)Support Raid 0, 1, 10LANIntel® I211-ATASUS LAN GuardAudioRealtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Front panel audio connector (AAFP)- Supports up to 32-Bit/192kHz playback *Audio Feature:- Optical S/PDIF out port(s) at back panel- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- EMI protection cover to prevent electrical noise to affect the amplifier quality* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.USB Ports3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A)AMD X570 chipset: 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset: 4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C)AMD X570 chipset: 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)AMD X570 chipset: 4 x USB 2.0 port(s) (4 at mid-board)Special Features5-Way Optimization by Dual Intelligent Processors 5- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo AppDIGI+ VRM: Digital power design with Dr. MOSEPU GuidanceTPU InsightFan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlTurbo App: system performance tuning, network priority, and audio scene configuration for selected applications.ASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM - Digital power design with Dr. MOS- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protectionASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem:- Improved DDR4 StabilityAURA:- Aura Lighting Control- Aura RGB Strip Headers- Addressable Gen 2 HeaderASUS Exclusive Features:- AI Suite 3- Ai Charger - Turbo LAN- Armoury Crate- Pre-mounted I/O ShieldASUS Quiet Thermal Solution:- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM - ASUS Q-ConnectorBack I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x Optical S/PDIF out5 x Audio jack(s)4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)Internal I/O Connectors2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)1 x SPI TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)3 x Chassis Fan connector(s) (3 x 4 -pin)1 x PCH_FAN (1 x 4 -pin)1 x AIO_PUMP connector (1 x 4 -pin)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) 1 x Power-on button(s)1 x Clear CMOS jumper(s)1 x Node Connector(s)1 x Water Pump header (4-pin)1 x T_Sensor Connector1 x USB 3.2 Gen 2 (up to 10Gbps) connector1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB portsAccessoriesUser''s manual2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x Q-connector(s) (1 in 1) 1 x Extension cable for Addressable LEDBIOS256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory informationOperating SystemWindows ® 10 64-bitForm FactorATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ).
