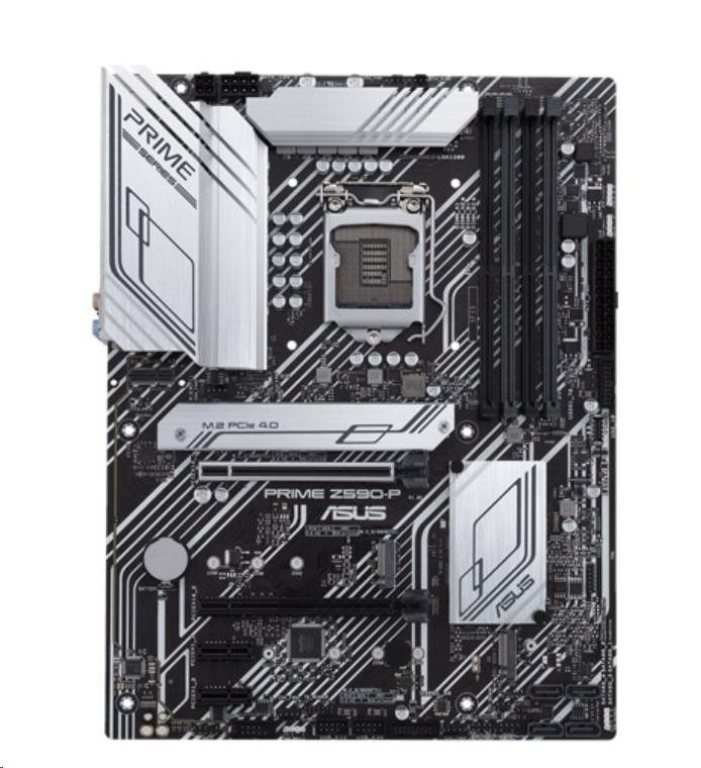

Asus PRIME Z590-P

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors& 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset Intel® Z590 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics 1 x DisplayPort 1.4 1 x HDMITM 1.4 / 2.0 Graphics specifications may vary between CPU types. Intel® 11th& 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. Expansion Slots Intel® 11th& 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Supports PCIe bandwidth bifurcation for RAID on CPU function. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4& SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4& SATA modes) 4 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless& Bluetooth V-M.2 slot only (Key E, CNVi& PCIe)* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately." USB Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback" Audio Features Audio Shielding Rear optical S/PDIF out port Premium Japanese audio capacitors Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header Special Features ASUS 5X PROTECTION III DIGI+ VRM (- Digital power design with DrMOS) LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-Slot ASUS Thermal Solution Flexible M.2 heatsink VRM heatsink design ASUS EZ DIY ProCool AURA Sync AURA RGB headers Addressable Gen 2 RGB headers Software Features ASUS Exclusive Software Armoury Crate AURA Sync AI Suite 3 Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Operating System Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ).
