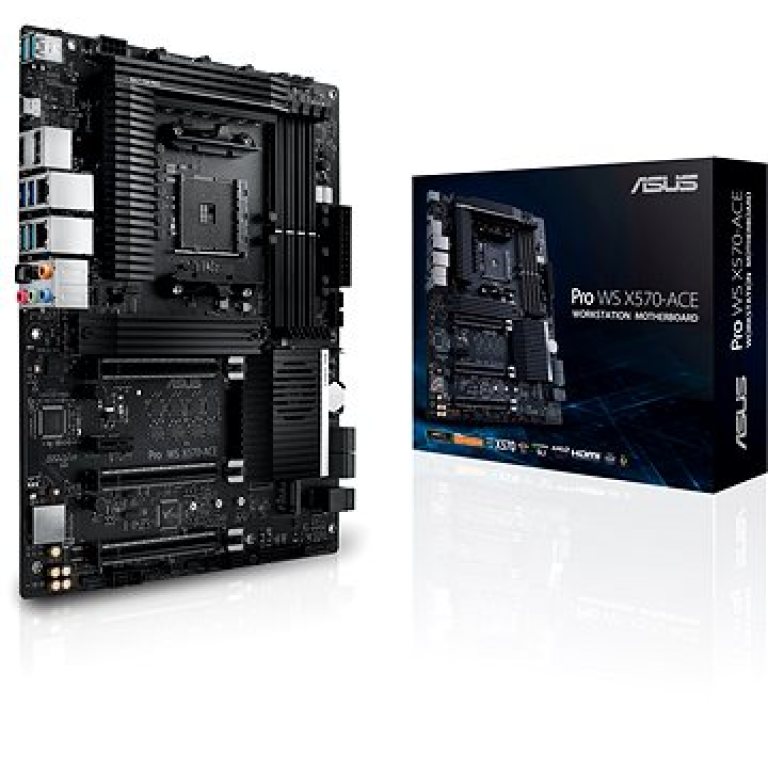

PodrobnostiPro WS X570-ACEAMD AM4 X570 ATX Workstation motherboard with 3 PCIe 4.0 x16, 14 with IR3555 power stages, DDR4 ECC memory support, Intel Gigabit LAN, dual M.2, U.2, and ASUS Control Center ExpressFeatures
- Three PCIe 4.0 x16 slots with optimized lane arrangement of 3-way x8/x8/x8 to accelerate an increasingly diverse array of workloads
- Reliable and responsive ECC memory suitable for mission critical tasks
- ASUS Control Center Express: A software utility equipped with a GbE LAN controller for out-of-band management to enhance hardware-level control for improved IT efficiency
- Ultra-fast storage: Up to 64Gbps M.2 & 32Gbps U.2, plus up to 10Gbps back-panel USB 3.2 Gen 2 with Type-A and Type-C ports
- Ultra-efficient VRM heatsink: Beefy heatsinks, heatpipe, and built-in PCH fan design maximizes surface area for heat dissipation to enable unthrottled performance
- Enhanced power solution: 12+2 IR3555 power stages, ProCool II connectors, alloy chokes and durable capacitors for stable power delivery
- Active PCH heatsink solution: The low-noise custom Delta Superflo fan with a 60,000-hour durability, plus Air Duct and finned heatsink design for cooling control
TECHNICAL SPECIFICATIONSCPUAMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics ProcessorsChipsetAMD X570Memory3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *2nd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666(O.C.)/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory capacity supported vary depending on the CPU you installed.GraphicIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics ProcessorsVGA output support : HDMI port- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 HzMulti-GPU Support3rd and 2nd Gen AMD Ryzen™ ProcessorsSupports NVIDIA® 2-Way SLI® TechnologySupports AMD 3-Way CrossFireX™ TechnologyExpansion Slots3rd Gen AMD Ryzen™ Processors2 x PCIe 4.0 x16 (x16 or dual x8)2nd Gen AMD Ryzen™ Processors2 x PCIe 3.0 x16 (x16 or dual x8)2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x16 (x8 mode)1 x PCIe 4.0 x1Storage3rd Gen AMD Ryzen™ Processors:1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors:1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset:1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280(PCIE 4.0 x2) storage devices support1 x U.2 connector, support PCIe 3.0 x4 NVM Express storage4 x SATA 6Gb/s port(s)Support Raid 0, 1, 10LANRealtek® RTL8117Intel® I211-ATASUS Turbo LAN UtilityASUS LAN GuardAudioRealtek® S1220A 8-Channel High Definition Audio CODEC *- Supports: Jack-detection, Front Panel Jack-retasking- Front panel audio connector (AAFP)Audio Feature:- Optical S/PDIF out port(s) at back panel- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Unique de-pop circuit: Reduces start-up popping noise to audio outputs- EMI protection cover to prevent electrical noise to affect the amplifier qualitySeparate layer for left and right track, ensuring both sound deliver equal quality* Choose the chassis with HD audio module in front panel to support 8-channel audio output.USB Ports3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors:3 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A, 1 at mid-board)AMD X570 chipset:5 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, Type-A, 1 x Type-C)AMD X570 chipset:4 x USB 2.0 port(s) (4 at mid-board)Workstation FeatureProCool Power ConnectorASUS Control Center (ACC)Special Features5-Way Optimization by Dual Intelligent Processors 5- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo AppFan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlASUS 5X Protection III:- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention- ASUS ESD Guards - Enhanced ESD protectionASUS SafeSlot - Protect your graphics card InvestmentASUS OptiMem:- Improved DDR4 StabilityASUS EPU:- EPUASUS Exclusive Features:- OptiMem- AI Suite 3- Ai Charger- ESD Guards- Turbo LAN- Armoury Crate- ASUS EZ Flash 3- ASUS NODE: hardware control interfaceASUS Quiet Thermal Solution:- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-Shield- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMMBack I/O Ports1 x DisplayPort1 x HDMI2 x LAN (RJ45) port(s)1 x Optical S/PDIF out5 x Audio jack(s)2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)Internal I/O Ports1 x PCH_FAN2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)3 x Chassis Fan connector(s) (3 x 4 -pin)1 x AIO_PUMP connector (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x U.2 Connector (support U.2 NVMe device)2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB portsAccessoriesUser''s manualI/O Shield4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x ASUS VGA HolderBIOS256 Mb Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory informationManageabilityWOL by PME, PXEOperating SystemWindows® 10 64-bitForm FactorATX Form Factor30.5 x 24.4 cm.
