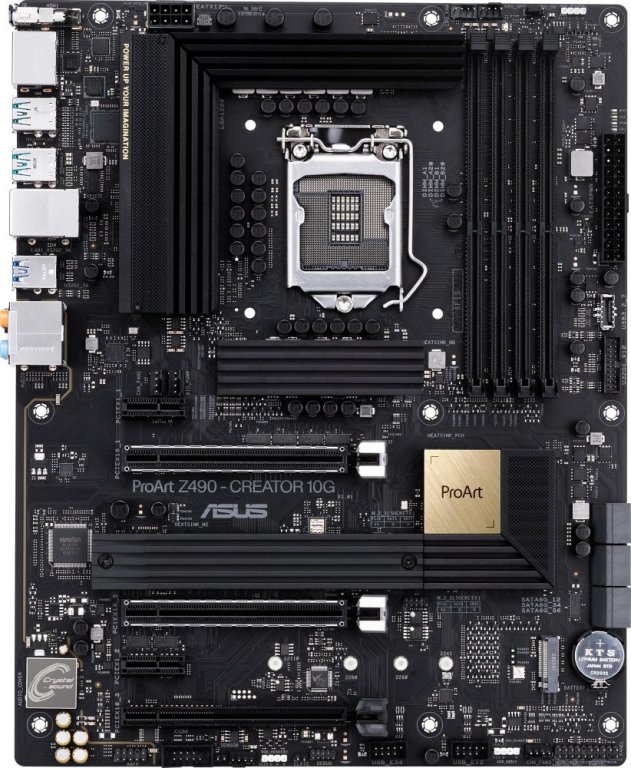

Asus ProArt Z490-CREATOR 10G

CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z490 Memory 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Thunderbolt 2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz VGA resolution support depends on VGA cards'' resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Graphics specifications may vary between CPU types. Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Multi-GPU Support Supports AMD 3-Way CrossFireX™ Technology Expansion Slots Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA& PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Intel® I225-V 2.5Gb Ethernet Audio Realtek® ALC S1220A 8-Channel High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : Optical S/PDIF out port(s) at back panel Audio Shielding Dedicated audio PCB layers Premium Japanese audio capacitors Audio Cover Unique de-pop circuit Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB Ports Intel® Thunderbolt™ 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C®) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port (4 x Type-A) 2 x USB 3.2 Gen 1 port (2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.1 Gen 1 port (1 x USB Type-C®) 2 x USB 3.2 Gen 1 port (2 x Type-A) 4 x USB 2.0 port Operating System Support Windows® 10 64-bit ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync AI Suite 3 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM EZ update Fan Xpert 4 Turbo app ProArt Creator Hub AI Charger Optimization tool specially for content creators WinRAR UEFI BIOS AI Optimization Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode FlexKey ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III ASUS DIGI+ VRM (- Digital power design with Dr. MOS) ASUS Enhanced DRAM Overcurrent Protection ASUS ESD Guards ASUS LANGuard ASUS Overvoltage Protection ASUS SafeSlot Core+ ASUS Stainless-Steel Back I/O ASUS Q-Design ASUS Q-DIMM ASUS Q-LED ASUS Q-Shield ASUS Q-Slot ASUS Thermal Solution Aluminum heatsink design ASUS EZ DIY Procool SafeSlot AURA Sync Standard RGB headers Addressable Gen 2 RGB header Addressable Gen 2 RGB header Back I/O Ports 2 x Thunderbolt 3 ports TypeC™ 2 x DisplayPort IN ports for Thunderbolt™ 1 x HDMI 1 x LAN (2.5G) port(s) 4 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 1 x Optical S/PDIF out 5 x Audio jack Internal I/O Ports 1 x CPU Fan connector 1 x CPU OPT Fan connector 3 x Chassis Fan connector 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header 1 x USB 3.2 Gen 1(up to 5Gbps) connector support additional 1 USB 3.2 Gen 1 port (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector support additional 2 USB 3.2 Gen 1 port 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA& PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector 1 x Thunderbolt header 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector (AAFP) 1 x System panel (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector 1 x CPU OV 1 x Clear CMOS jumper 1 x COM port header Operating System Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ).
