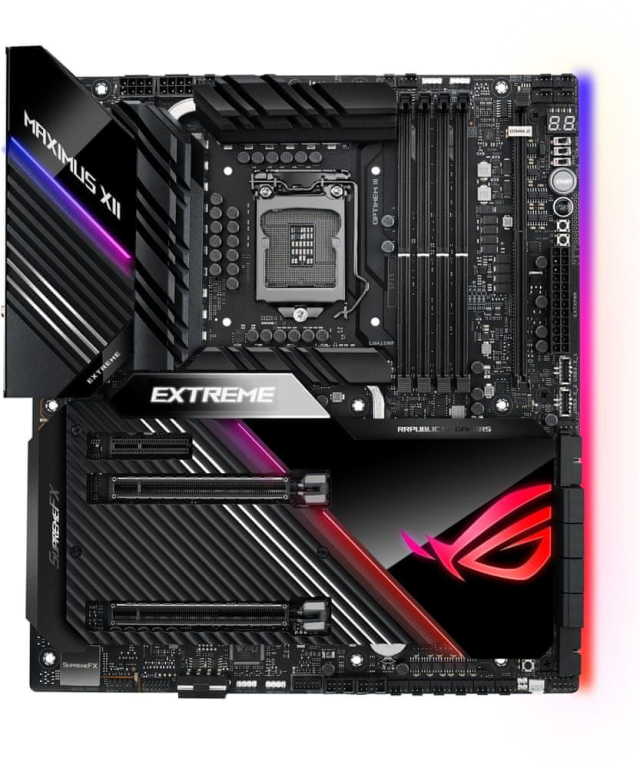

Asus ROG Maximus XII Extreme

CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z490 Memory 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Multi-GPU Support Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Expansion Slots Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x4 Storage Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 10th Gen Processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Intel® I225-V 2.5Gb Ethernet Marvell® AQtion AQC107 10Gb Ethernet ASUS LANGuard Wireless Data Network Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth Bluetooth v5.1 BT 5.1 function will be ready in Windows 10 build 19041 or later. Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 Impedance sense for front and rear headphone outputs Supports : Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input ESS™ ES9023 DAC + RC4580 OP AMP Supports up to 32-Bit/192kHz playback LED-illuminated audio jacks Audio Feature : SupremeFX Shielding™ Technology Optical S/PDIF out port(s) at back panel Premium Japanese audio capacitors Audio Cover Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB Ports Rear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2x2 port 3 x USB 3.2 Gen 2 port (2 + Type-A +1 + USB Type-CTM) 6 x USB 3.2 Gen 1 port (6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port 4 x USB 2.0 port ROG Exclusive Software Mem Tweakit RAMCache III ROG CPU-Z GameFirst VI Sonic Studio III + Sonic Studio Virtual Mixer Sonic Radar III DTS® Sound Unbound Overwolf BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync OLED Display AI Suite 3: 5-Way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features ROG Extreme OC kit EZ PLUG FlexKey button LN2 Mode Probelt ReTry button Safe boot button Start button Slow Mode Extreme Engine Digi+ 10K Black Metallic Capacitors Infineon TDA21490 Power Stage MicroFine Alloy Choke ASUS Q-Design ASUS Q-Code ASUS Q-Connector ASUS Q-DIMM ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Q-Slot ASUS Thermal Solution Aluminum M.2 heatsink cover Steel backplate ASUS EZ DIY BIOS Flashback™ button Clear CMOS button Procool II Pre-mounted I/O shield SafeSlot AURA Sync ROG Aura sync backplate Standard RGB header Addressable Gen 2 RGB header LiveDash OLED 2" Back I/O Ports 1 x LAN (2.5G) port 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 6 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button 1 x USB BIOS FlashBack™ Button 1 x ASUS Wi-Fi Module 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port Internal I/O Ports 1 x CPU Fan connector 1 x CPU OPT Fan connector 2 x Chassis Fan connector 2 x W_PUMP+ connector 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header 2 x USB 3.2 Gen 1(up to 5Gbps) connector support additional 4 USB 3.2 Gen 1 port 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA& PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s connector 1 x Thunderbolt header 1 x 24-pin EATX Power connector 2 x 8-pin ATX 12V Power connector 1 x 4-pin EZ_PLUG Power connector 1 x Slow Mode switch 8 x ProbeIt Measurement Points 1 x Thermal sensor connector 1 x BIOS Switch button 1 x LN2 Mode jumper 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x Start button 1 x FlexKey button Form Factor Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ).
