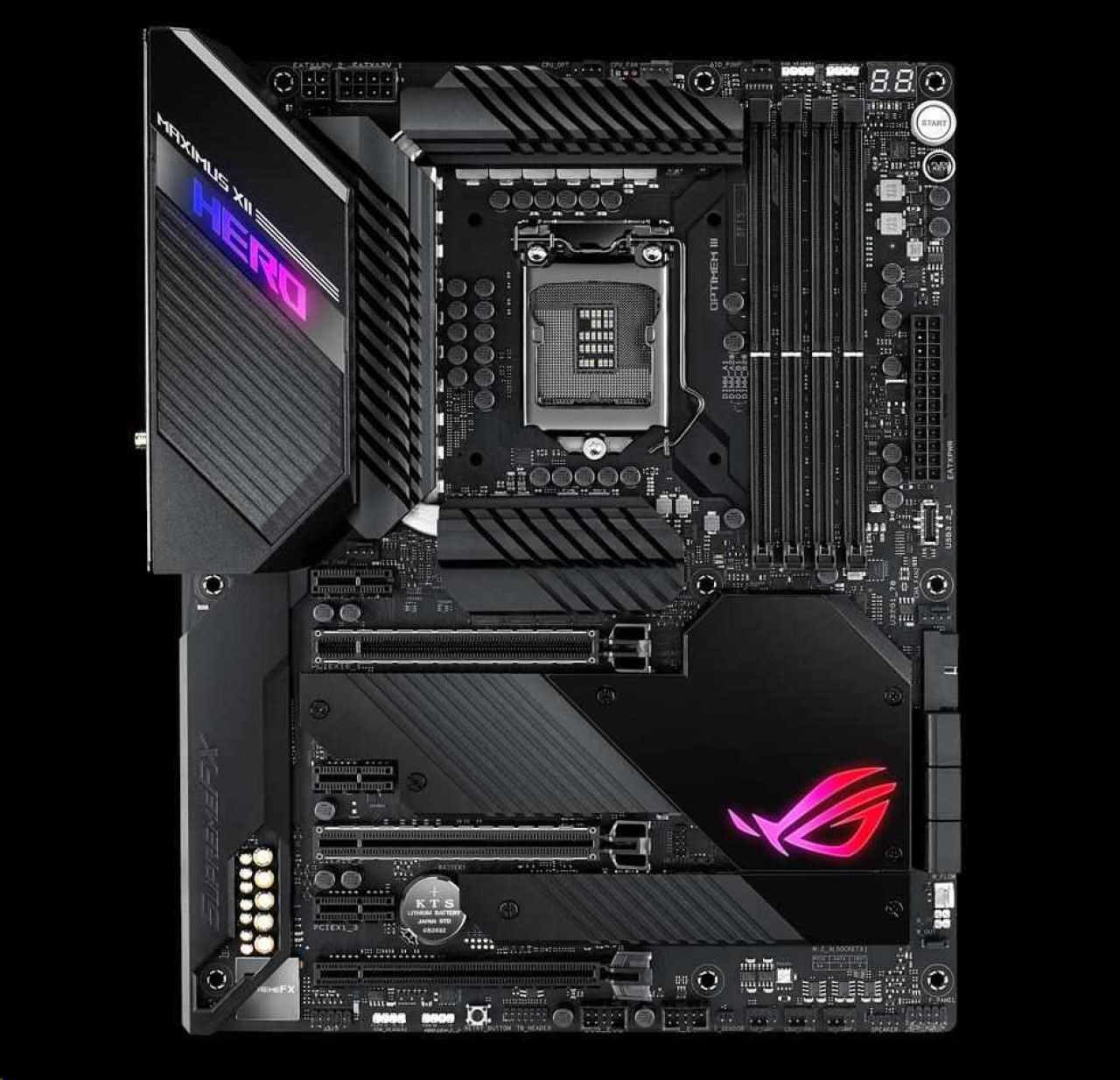

Asus ROG Maximus XII Hero (WIFI)

CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z490 Memory 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x HDMI 1.4b Graphics specifications may vary between CPU types. Multi-GPU Support Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology Expansion Slots Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA& PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*4 1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA& PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready LAN Intel® I219-V 1Gb Ethernet Marvell® AQtion AQC111C 5Gb Ethernet ASUS LANGuard Wireless Data Network Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth Bluetooth v5.1 BT 5.1 function will be ready in Windows 10 build 19041 or later. Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 Impedance sense for front and rear headphone outputs Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback High quality 120 dB SNR stereo playback output and 113 dB SNR recording input ESS™ ES9023 DAC + RC4580 OP AMP Supports up to 32-Bit/192kHz playback Audio Feature : SupremeFX Shielding™ Technology Gold-plated jacks Optical S/PDIF out port at back panel Premium Japanese audio capacitors Audio Cover USB Ports Rear USB Port ( Total 10 ) 4 x USB 3.2 Gen 2 port (3 + Type-A +1 + USB Type-C®) 4 x USB 3.2 Gen 1 port (4 x Type-A) 2 x USB 2.0 port (2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 front panel connector port(s) 2 x USB 3.2 Gen 1 port 4 x USB 2.0 port Software Features Mem Tweakit RAMCache III ROG CPU-Z GameFirst VI Sonic Studio III + Sonic Studio Virtual Mixer Sonic Radar III DTS® Sound Unbound Overwolf BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync AI Suite 3 5-way Optimization with AI Overclocking: TPU, EPU, Digi+ Power Control, Fan Xpert 4, Turbo app EZ update AI Charger WinRAR [UEFI BIOS] AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features ROG Extreme OC kit FlexKey button ReTry button Start button Extreme Engine Digi+ 10K Black Metallic Capacitors MicroFine Alloy Choke ASUS Q-Design ASUS Q-Code ASUS Q-Connector ASUS Q-DIMM ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Q-Slot ASUS Thermal Solution Aluminum M.2 heatsink cover ASUS EZ DIY BIOS Flashback™ button Clear CMOS button Procool II Pre-mounted I/O shield SafeSlot AURA Sync Standard RGB headers Addressable Gen 2 RGB headers Back I/O Ports 1 x Marvell® AQtion AQC111C 5Gb Ethernet 1 x Intel® I219-V 1Gb Ethernet 1 x HDMI 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button 1 x USB BIOS FlashBack™ Button 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks Internal I/O Ports 1 x CPU Fan connector 1 x CPU OPT Fan connector 3 x Chassis Fan connector 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header 1 x USB 3.2 Gen 1(up to 5Gbps) connector support additional 2 USB 3.2 Gen 1 port 2 x USB 2.0 connector support additional 4 USB 2.0 port 3 x M.2 Socket 3 6 x SATA 6Gb/s connector 1 x Thunderbolt header 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector 1 x 4-pin ATX 12V Power connector 1 x Thermal sensor connector 1 x ReTry button 1 x System panel connector 1 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x Start button 1 x FlexKey button Operating System Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm ).
