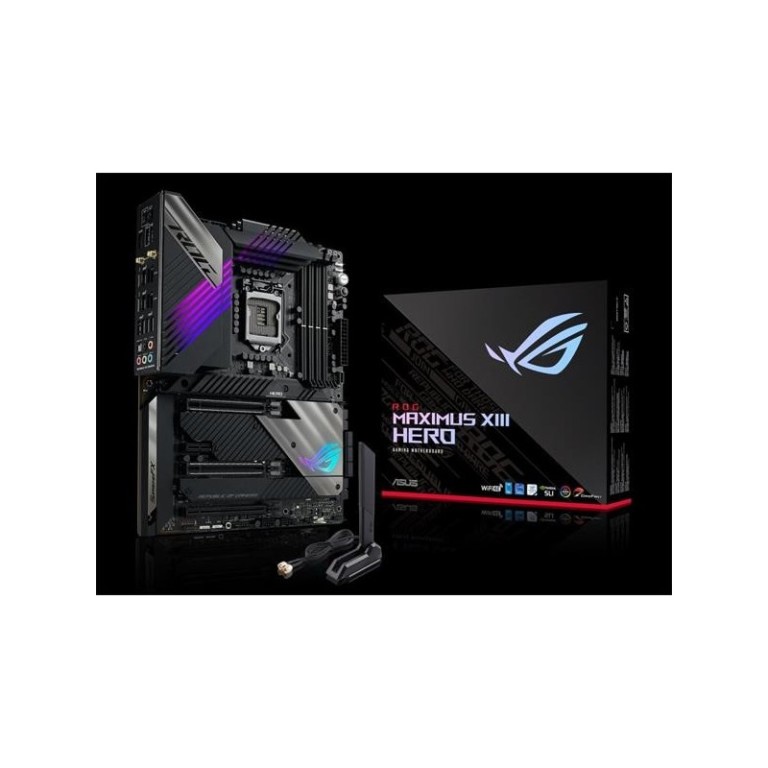

Asus ROG Maximus XIII Hero

Chipset: Intel® Z590 Chipset Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *Intel® Extreme Memory Profile (XMP) *OptiMem III Grafická karta: *Integrated Graphics Processor (na základě procesoru) Multi GPU: NVIDIA 2-Way SLI® Technology Zvuková karta: *ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Síťová karta: *2x Intel® I225-V 2.5Gb Ethernet *Intel® Wi-Fi 6E *Bluetooth v5.2 Rozšiřující sloty: *2x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) *1x PCIe 3.0 x16 (max. x4) *1x PCIe 3.0 x1 slots SATA: *6x SATA 6Gb/s ports M.2: *M.2_1 slot (Key M), type 2242/2260/2280/22110 *M.2_2 slot (Key M), type 2242/2260/2280 *M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) *M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) USB: *zadní USB porty ( celkem 10 ) *2x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support *6x USB 3.2 Gen 2 port(s) (6 x Type-A) *2x USB 2.0 port(s) (2 x Type-A) *přední USB porty ( celkem 9 ) *1x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®) *4x USB 3.2 Gen 1 ports *4x USB 2.0 ports Interní porty: *1x 4-pin CPU Fan header(s) *1x 4-pin CPU OPT Fan header(s) *1x 4-pin AIO Pump header(s) *3x 4-pin Chassis Fan header(s) *1x 4-pin H_AMP Fan header(s) *1x W_PUMP+ header(s) *1x 2-pin Water In header *1x 2-pin Water Out header *1x 3-pin Water Flow header *1x 24-pin Main Power connector *2x 8-pin +12V Power connector *4x M.2 slots (Key M) *6x SATA 6Gb/s ports *1x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®) *2x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports *2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports *3x AURA Addressable Gen 2 header(s) *1x AURA RGB header(s) *1x FlexKey button *1x Front Panel Audio header (AAFP) *1x ReTry button *1x Speaker header *1x SPI TPM header (14-1pin) *1x Start button *1x 10-1 pin System Panel header *1x Thermal Sensor header Externí porty: *2x Thunderbolt™ 4 USB Type-C® port(s) *6x USB 3.2 Gen 2 port(s) (6 x Type-A) *2x USB 2.0 port(s) (2 x Type-A) *1x HDMI™ port *1x ASUS Wi-Fi Module *2x Intel® I225-V 2.5Gb Ethernet *5x Gold-plated audio jacks *1x Optical S/PDIF out port *1x BIOS FlashBack™ button *1x Clear CMOS button Obsah balení: *1x ARGB RGB extension cable *1x RGB extension cable *4x SATA 6Gb/s cables *1x ASUS Wi-Fi moving antennas *1x M.2 SSD screw package(s) *1x Q-connector *1x ROG key chain *1x ROG logo plate stickers *1x ROG Graphics card holder *1x ROG stickers *1x ROG thank you card *1x Support DVD *1x User manual BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://rog.asus.com/motherboards/rog-maximus/rog-maximus-xiii-hero-model.
