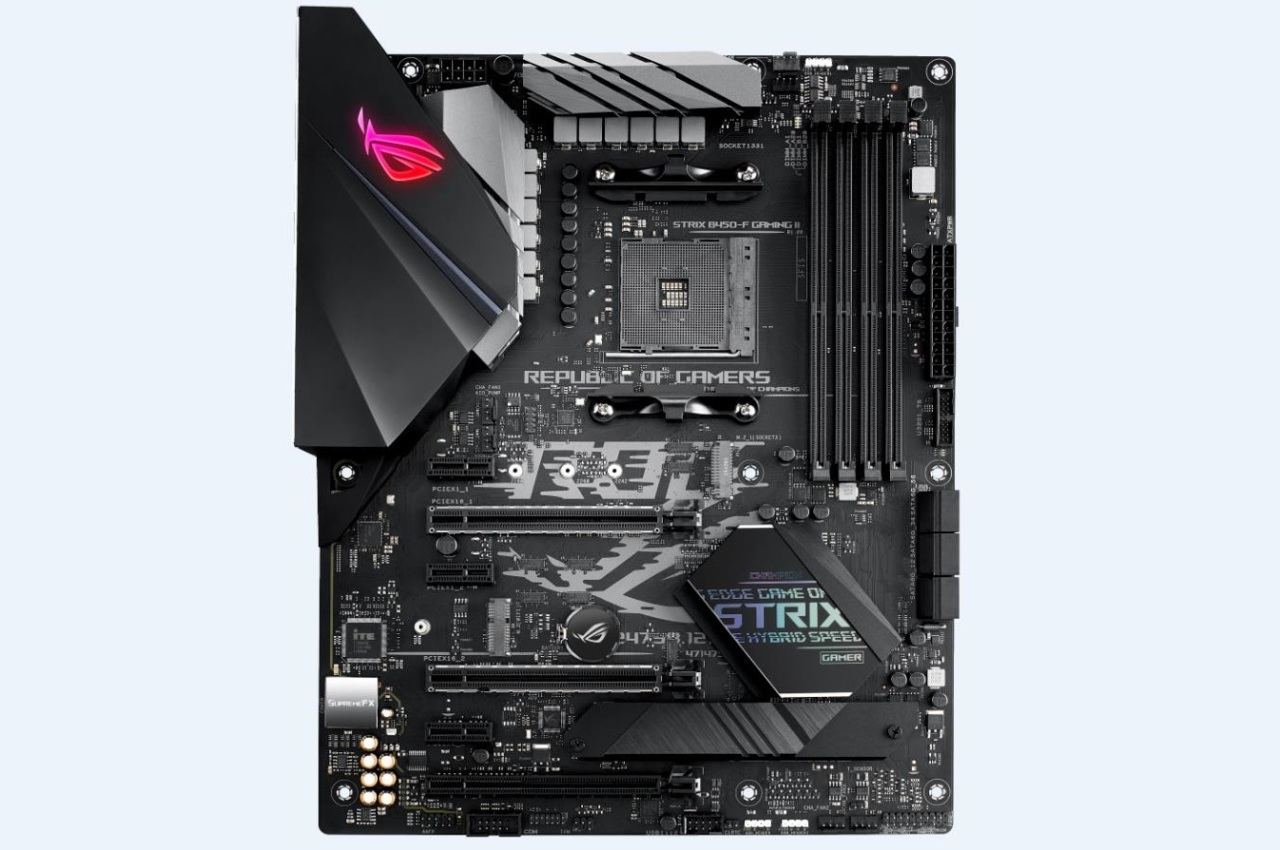

Asus ROG STRIX B450-F GAMING II

AMD AM4 B450 Gaming ATX motherboard with DDR4 4400 MHz support, AI Noise-Canceling Microphone, M.2 with heatsink, USB 3.2 Gen 2, SATA 6 Gbps and Aura Sync RGB lighting AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors Robust power solution: 8+4 discrete MOS with high-quality alloy chokes and durable capacitors Gaming-optimized connectivity: Dual M.2, USB 3.2 Gen 2, plus HDMI® 2.0 and DisplayPort™ 1.2 output support Smooth networking: M.2 socket with E-key and Intel® Gigabit Ethernet with ASUS LANGuard Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable RGB header Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec and Sonic Studio III for immersive sound CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors * Refer to www.asus.com for CPU support list Chipset AMD B450 Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.0b *Graphics specifications may vary between CPU types. Multi-GPU Support Supports AMD 3-Way CrossFireX™ Technology Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or x8/x4) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (x4 mode) * 3 x PCIe 2.0 x1 Storage Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)* 2 x SATA 6Gb/s port(s) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x SATA 6Gb/s port(s), AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 2 x SATA 3Gb/s port(s), AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Intel® I211-AT 1Gb Ethernet ASUS LANGuard Audio ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out header(s) at mid-board - Audio Shielding - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB Ports Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(3 x Type-A +1 x USB Type-C®) 2 x USB 2.0 port(s) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) Software Features ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync Ai noise cancelling microphone AI Suite 3: - 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update AI Charger UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -Pre-mounted I/O shield - SafeSlot Back I/O Ports 1 x Intel® I211-AT 1Gb Ethernet 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 1 USB Type-C® 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) Accessories User''s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note * PCIe x16_3 slot share bandwidth with PCIe x1_1, PCIe x1_2 and PCIe x1_3 * When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled. *When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode.
