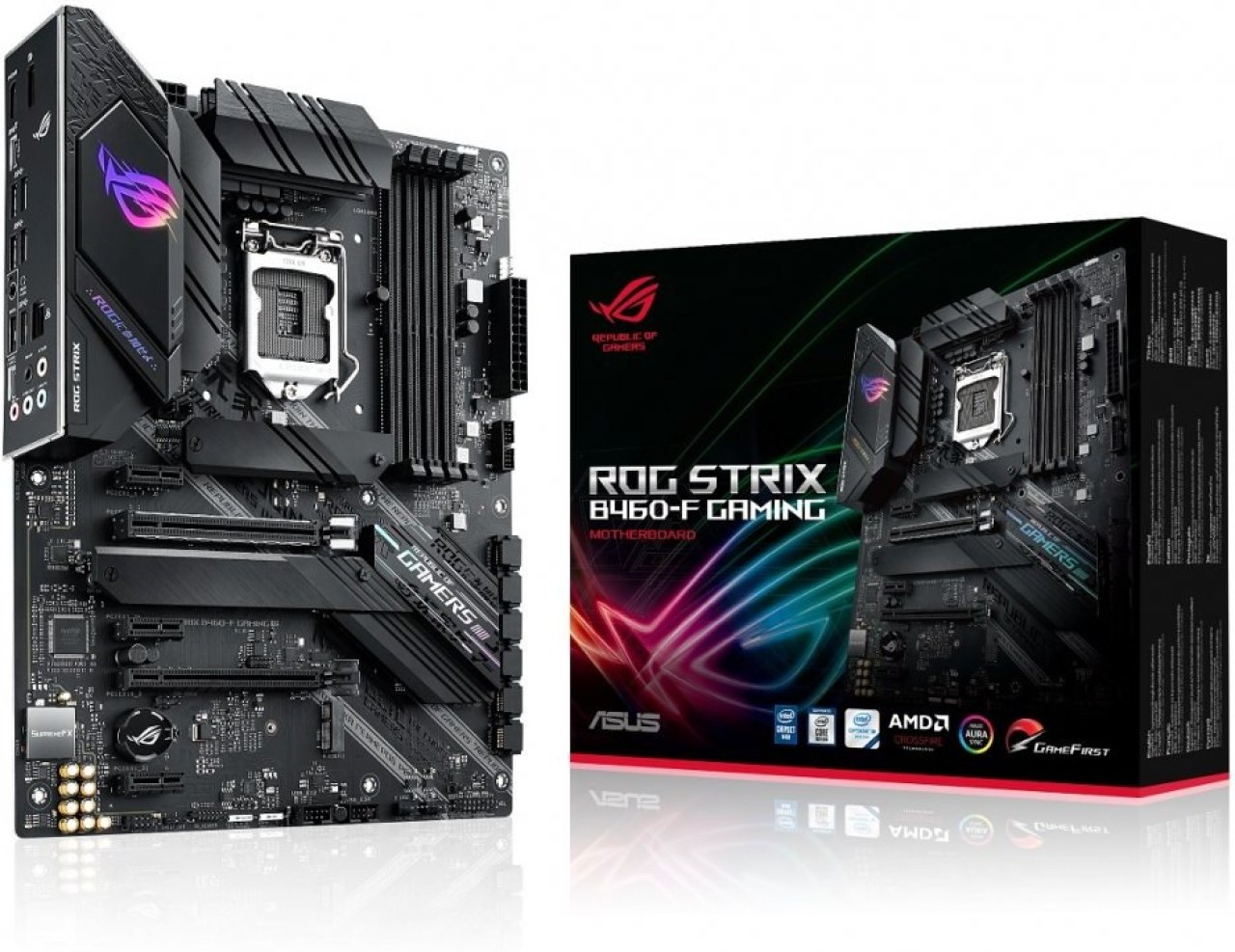

Asus ROG STRIX B460-F GAMING

ROG Strix B460-F Gaming motherboard features solid power delivery and effective cooling designed to handle the latest 10th Generation Intel® Core™ processors. With its arresting futuristic aesthetic and intuitive ROG software, ROG Strix B460-F Gaming gives you a head start on your dream gaming build. CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B460 Memory 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots I ntel® 10th Gen Processors 1 x PCIe 3.0 x16 Intel® B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) *1 3 x PCIe 3.0 x1 *2 Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready LAN Intel® I219-V 1Gb Ethernet ASUS LANGuard Wireless Data Network M.2 slot only (Key E) (Support PCIe interface)* *Wi-Fi module is sold separately. Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB Ports Rear USB Port ( Total 8 ) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C®) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 1 x USB 2.0 port(s)(1 x audio USB Type-C® ) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) Software Features [ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool - Pre-mounted I/O shield  - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector Back I/O Ports 1 x Intel® I219-V 1Gb Ethernet 1 x DisplayPort 1 x HDMI 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 6 x USB 3.2 Gen 1 1 x USB 2.0 (1 for audio USB Type-C®) 5 x Audio jack(s) 1 x USB BIOS FlashBack™ Button(s) Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector Accessories User''s manual 4 x SATA 6Gb/s cable(s) 1 x pack of cable tie 1 x Supporting DVD 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x M.2 SSD screw package(s) 1 xM.2 Key E screw package(s) 1 x M.2 Rubber Package(s) 1 x ROG audio USB Type-C® cable BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1 The PCIEX16_2 shares bandwidth with the PCIEX1_1 and PCIEX1_3. When PCIEX16_2 runs x4 mode, PCIEX1_1 and PCIEX1_3 will be disabled. The PCIEX16_2 will run x2 mode when PCIEX1_1 or PCIEX1_3 is occupied. *2 The PCIEX1_1 and PCIEX1_3 share bandwidth with PCIEX16_2. The PCIEX1_2 shares bandwidth with M.2 slot (Key E). *3 When M.2_1 is operating in SATA mode, SATA6G_1 will be disabled.
