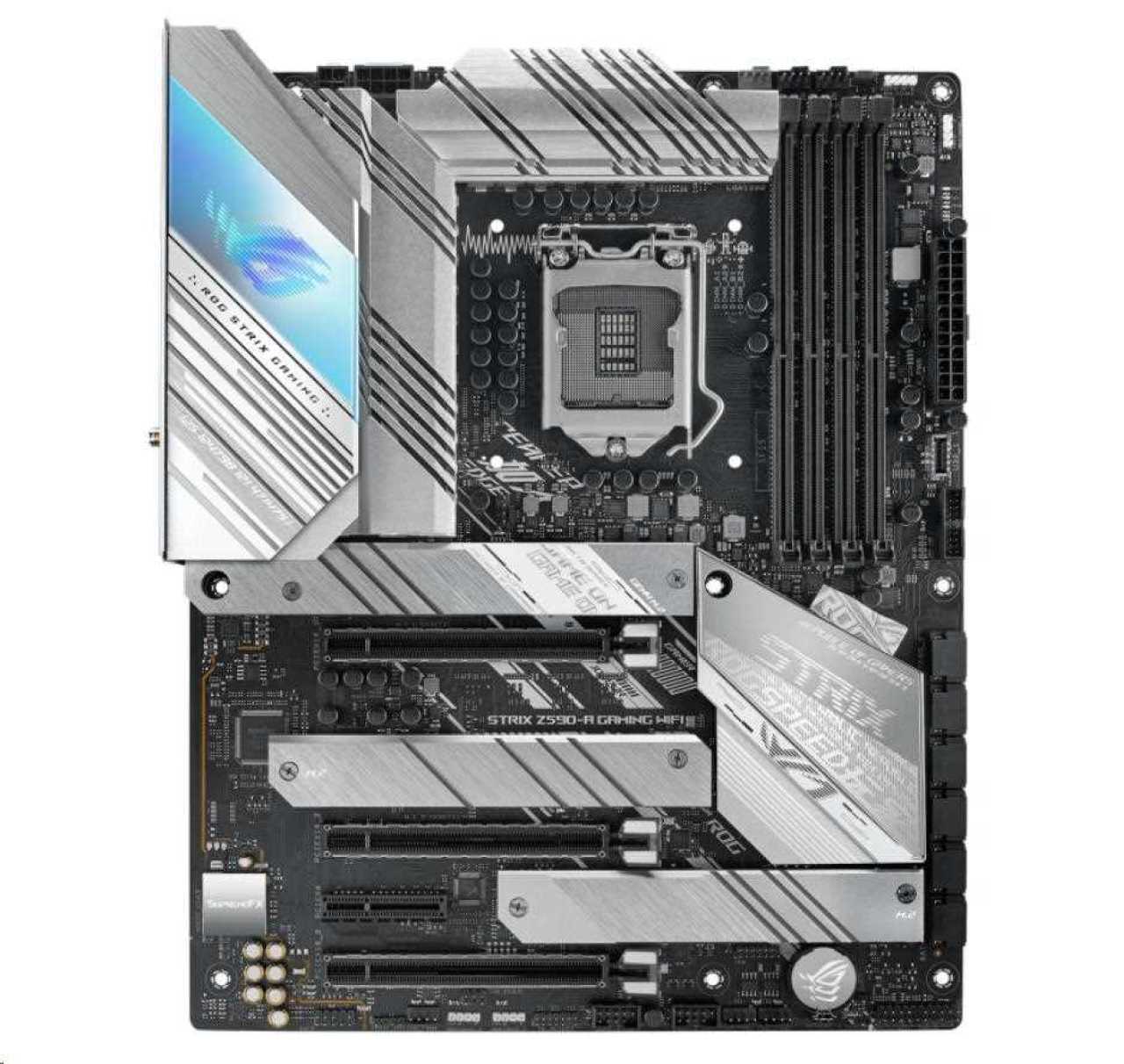

Asus ROG STRIX Z590-A GAMING WIFI

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors& 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset Intel® Z590 Chipset Memory Memory Channels: 4xDDR4 (Dual channel) Max Memory Size: 128GB DDR4 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. Graphics 1 x DisplayPort 1.4 1 x HDMI™ 2.0 Graphics specifications may vary between CPU types. Only Intel® 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.Please refer to www.intel.com for any updates. Expansion Slots 3 x PCIe 4.0/3.0 x16 (x16, x8/x4/x4) Intel® 11th&10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot Supports PCIe bandwidth bifurcation for RAID on CPU function. Storage Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4& SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4& SATA modes) 6 x SATA 6Gb/s ports Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. When M.2_2 is operating in SATA device, SATA6G_2 will be disabled. When M.2_3 is operating in SATA device, SATA6G_6 will be disabled. Ethernet 1 x Intel® 2.5Gb Ethernet Wireless& Bluetooth Intel® Wi-Fi 6 USB Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port (4 x Type-A) 5 x USB 2.0 port (4 x Type-A + 1 x USB Type-C®) Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header support additional 4 USB 2.0 ports Audio ALC4080 ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Supports up to 32-Bit/384 kHz playback" Audio Features SupremeFX Shielding Technology ALC4080 + Savitech SV3H712 AMP audio jacks Rear audio USB Type-C® port Premium Japanese audio capacitors Audio cover Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 5 x USB 2.0 port (4 x Type-A, 1 x Audio USB Type-C®) 1 x HDMI™ port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button Intrernal I/O Connectors 1 x Thunderbolt 4 header 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan header 1 x VRM heatsink Fan header 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header support additional 4 USB 2.0 ports 3 x AURA Addressable Gen 2 header 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x S/PDIF out header Special Features Extreme Engine Digi+ 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED ProCool II Pre-mounted I/O shield SafeSlot AURA Sync AURA RGB header(s) Addressable Gen 2 RGB header(s) Software Features ROG Exclusive Software RAMCache III ROG CPU-Z GameFirst VI Sonic Studio III + Sonic Studio Virtual Mixer Sonic Radar III DTS® Sound Unbound Overwolf Anti-virus software ASUS Exclusive Software Armoury Crate AIDA64 Extreme (60 days free trial) AURA Creator AURA Sync Two-Way AI Noise Cancelation AI Suite 3 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Fan Xpert 4 Turbo app EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS MemTest86 AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode FlexKey Operating System Windows 10 64bit Form Factor ATX 30.5cm x 24.4cm.
