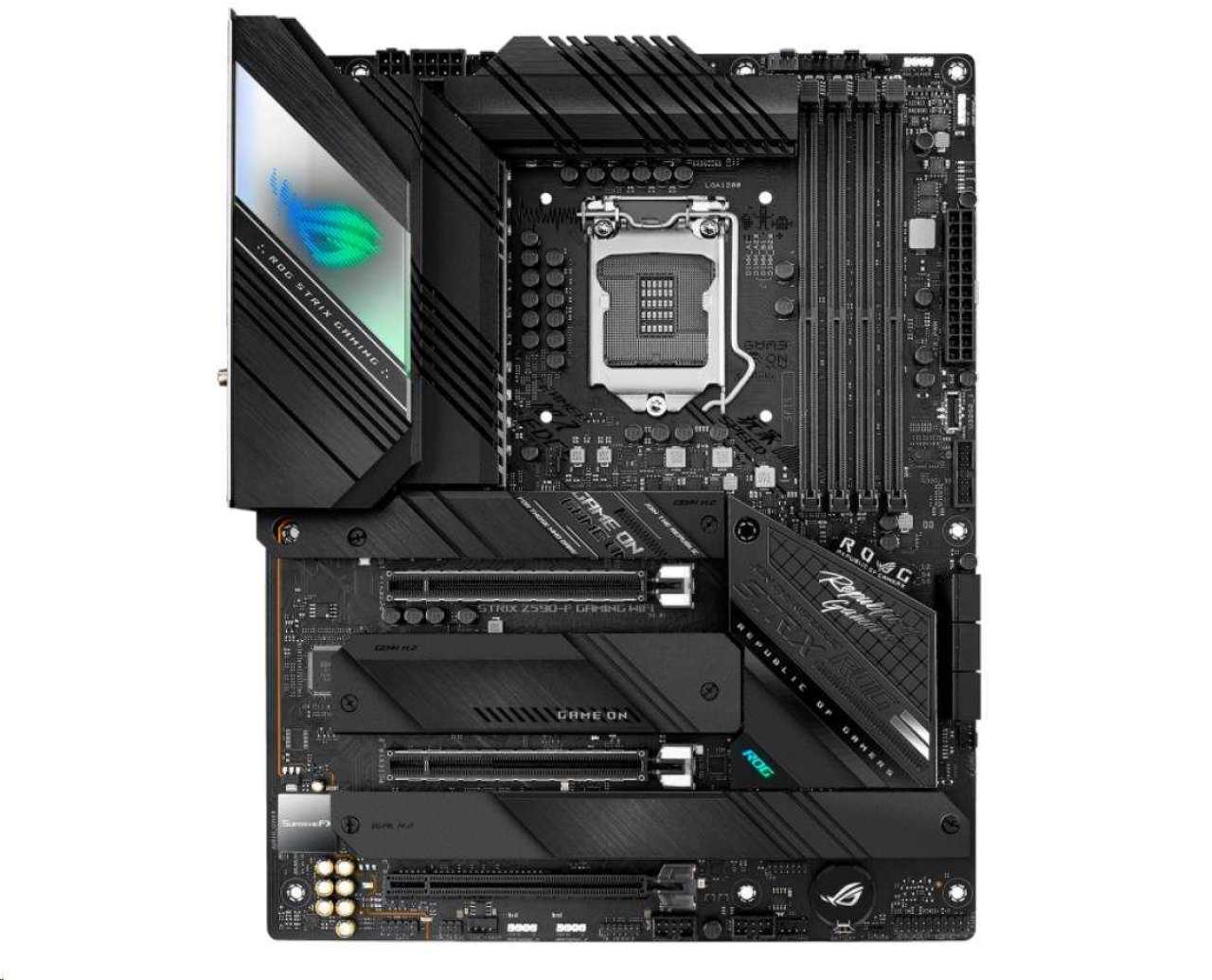

Asus ROG STRIX Z590-F GAMING WIFI

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors& 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset Intel® Z590 Chipset Memory Memory Channels: 4xDDR4 (Dual channel) Max Memory Size: 128GB DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. Graphics 1 x DisplayPort 1.4 1 x HDMI™ 2.0 Graphics specifications may vary between CPU types. For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.Please refer to www.intel.com for any update. For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz.Please refer to www.intel.com for any update. VGA resolution support depends on processors'' or graphic cards'' resolution. Expansion Slots 2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th&10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot Intel® 11th support PCIe 4.0 x16 or x8/x4 mode Intel® 10th processors support PCIe 3.0 x16 or x8/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) Support PCIe bandwidth bifurcation for RAID on CPU function. Storage Intel®11th&10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280/22110 Intel® 11th processors support PCIe 4.0 x4 mode Intel® 10th processors support PCIe 3.0 x4 mode Intel® Z590 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4& SATA modes) 6 x SATA 6Gb/s ports Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. When M.2_4 is operating in SATA device, SATA6G_2 will be disabled. Ethernet 1 x Intel® 2.5Gb Ethernet Wireless& Bluetooth 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 USB Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio ALC4080 Audio Features SupremeFX Shielding Technology ALC4080 + Savitech SV3H712 AMP Gold-plated audio jacks Rear optical S/PDIF out port Premium Japanese audio capacitors Audio cover Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x DisplayPort 1 x Intel® Wi-Fi 6E 1 x Intel® I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Intrernal I/O Connectors 1 x Thunderbolt 4 header 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x VRM heatsink Fan header 1 x W_PUMP+ header 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header ROG Exclusive Software RAMCache III ROG CPU-Z GameFirst VI Sonic Studio III + Sonic Studio Virtual Mixer Sonic Radar III DTS® Sound Unbound Overwolf Anti-virus software AIDA64 Extreme (60 days free trial) ASUS Exclusive Software Armoury Crate AURA Creator AURA Sync Two-Way AI Noise Cancelation AI Suite 3 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode FlexKey MemTest86 Operating System Windows 10 64bit Form Factor ATX 30.5cm x 24.4cm.
