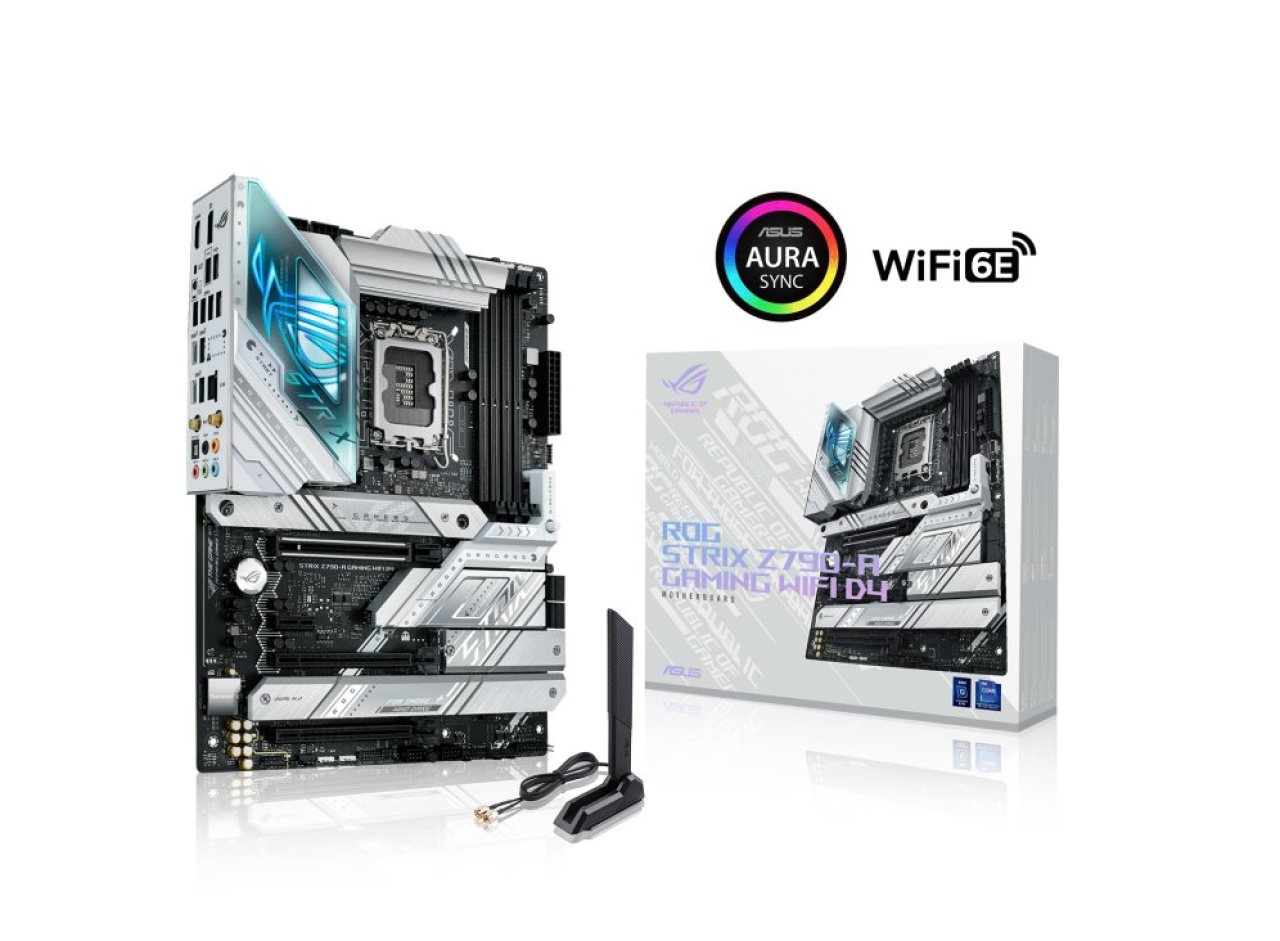

Asus ROG STRIX Z790-A GAMING WIFI

ROG STRIX Z790-A GAMING WIFI D4 Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory support, four M.2 slots, PCIe® 5.0 x16 SafeSlot with Q-Release, WiFi 6E, USB 3.2 Gen 2x2 Type-C® rear I/O port and additional front-panel connector with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors Robust Power Solution: 16 + 1 power solution rated for 70A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors Optimized VRM Thermals: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads. Ample M.2 Support: One PCIe® 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks Abundant Connectivity: USB 3.2 Gen 2x2 Type-C® rear I/O port and additional front-panel connector with PD 3.0 up to 30W, USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4 High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation simplifies setup and improves performance Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and addressable Gen 2 headers DIY-friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack™ button, BIOS FlashBack LED, and Clear CMOS button Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z790 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 DDR45333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem III* Supported memory types, data rate(Speed),and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort**1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processors'' or graphic cards'' resolution. Expansion Slots Intel® 13th & 12th Gen Processors1 x PCIe 5.0 x16 slot Intel® Z790 Chipset2 x PCIe 4.0 x16 slots (support x4/x4 mode)1 x PCIe 3.0 x1 slot To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet 1 x Intel® 2.5Gb EthernetASUS LANGuard Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3 * WiFi 6E 6GHz regulatory may vary between countries. USB Rear USB (Total 10 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports)1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers supports 4 additional USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP - Rear optical S/PDIF out port- Premium audio capacitors- Audio cover Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt™ header Special Features Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-Slot ASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink design ASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMM Aura Sync- Aura RGB header- Addressable Gen 2 headers Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support- Support: up to 30W charging- Output: 5/9V max. 3A, 12V max. 2.5A- Compatible with PD3.0 Software Features ROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS® Sound Unbound ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync- Xpert 4 (with AI Cooling II)- Power Saving- Two-Way AI Noise CancellationAI Suite 3- Easy Optimization with AI Overclocking - TPU- DIGI+ VRM- Turbo app- PC CleanerMyAsusNorton 360 for GamersWinRAR UEFI BIOSAI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeFlexKeyMemTest86 BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2 Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties package1 x M.2 backplate Q-Latch package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you card2 x M.2 Rubber Packages1 x M.2 backplate Rubber PackageDocumentation1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ).
