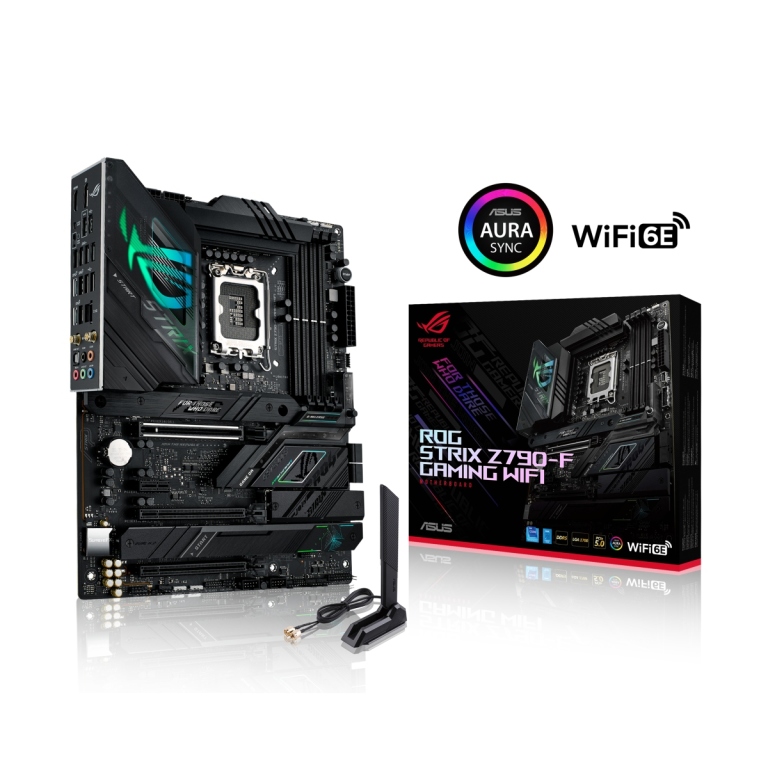

Asus ROG STRIX Z790-F GAMING WIFI

Chipset: Intel Z790 Rozměrový formát: ATX Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Pozice na paměti: 4 x DIMM Podpora pro paměti: *4 x DIMM *Max. 128GB *DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory *Dual Channel Memory Architecture *Supports Intel Extreme Memory Profile (XMP) *OptiMem II Max. velikost operační paměti: 128 GB Grafická karta: ne (1x DisplayPort + 1x HDMI port) Zvuková karta: *ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Síťová karta: *1 x Intel 2.5Gb Ethernet *Wi-Fi 6E *2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) *Supports 2.4/5/6GHz frequency band *Bluetooth v5.3 Rozšiřujicí sloty: Intel 13th & 12th Gen Processors *1 x PCIe 5.0 x16 slot Intel Z790 Chipset *2 x PCIe 4.0 x16 slots (support x4 mode) *1 x PCIe 3.0 x1 slot RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 SATA: *4 x SATA 6Gb/s ports M.2: Intel 13th & 12th Gen Processors *M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) *M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) USB: zadní USB - celkem 12, přední USB - celkem 7 ZADNÍ *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) *4 x USB 3.2 Gen 1 ports (4 x Type-A) *4 x USB 2.0 ports (4 x Type-A) PŘEDNÍ *1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) *1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers supports 4 additional USB 2.0 ports Interní porty: Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *5 x 4-pin Chassis Fan headers Power related *1 x 24-pin Main Power connector *2 x 8-pin +12V Power connectors Storage related *4 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB *1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) *1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous *3 x Addressable Gen 2 headers *1 x Aura RGB header *1 x CPU Over Voltage jumper *1 x Front Panel Audio header (AAFP) *1 x 20-3 pin System Panel header with Chassis intrude function *1 x Start button *1 x Thermal Sensor header *1 x Thunderbolt header Externí porty: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) *4 x USB 3.2 Gen 1 ports (4 x Type-A) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Wi-Fi Module *1 x Intel 2.5Gb Ethernet port *5 x Gold-plated audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack button *1 x Clear CMOS button BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-model/.
