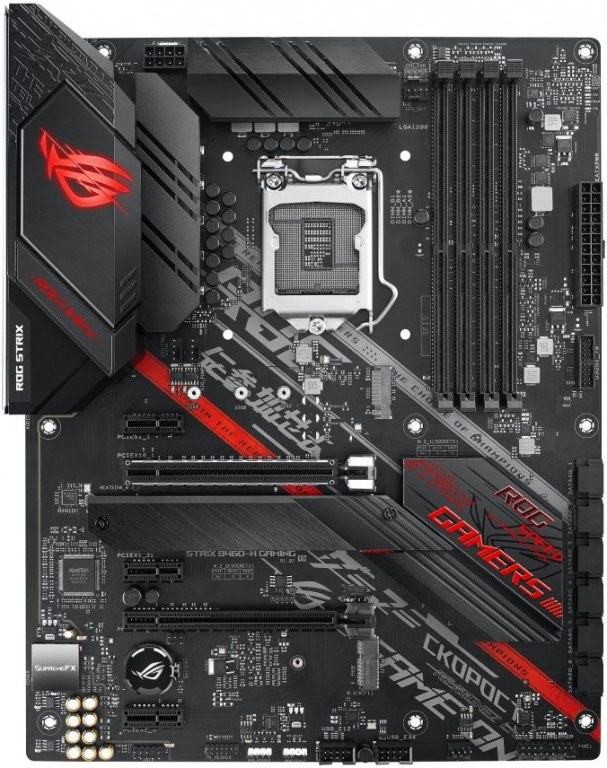

Asus STRIX B460-H GAMING

Chipset: Intel® B460 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Intel® Extreme Memory Profile (XMP) Grafická karta: *Integrated Graphics Processor (na základě procesoru) Multi GPU: AMD 2-Way CrossFireX Technology Zvuková karta: *ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *Intel® I219-V 1Gb Ethernet (ASUS LANGuard) Rozšiřující sloty: *1x PCIe 3.0 x16 *1x PCIe 3.0 x16 (x4 mode) *3x PCIe 3.0 x1 RAID řadič: 0, 1, 5, 10 SATA: *6x SATA 6Gb/s M.2: *1x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) USB: *zadní USB porty ( celkem 7 ) *1x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C®) *6x USB 3.2 Gen 1 port(s)(6 x Type-A) *přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s) Interní porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *2x Chassis Fan connector(s) *1x AIO_PUMP connector *1x AAFP connector *1x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *2x M.2 Socket 3 *1x M.2 with E key for Wi-Fi module *6x SATA 6Gb/s connector(s) *1x Thunderbolt header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x System panel connector Externí porty: *1x Intel® I219-V 1Gb Ethernet *1x DisplayPort *1x HDMI *1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) *6x USB 3.2 Gen 1 *1x Optical S/PDIF out *5x Audio jack(s) Obsah balení: *User"s manual *4x SATA 6Gb/s cable(s) *1x pack of cable tie *1x Supporting DVD *1x ROG Strix stickers *1x Extension cable for Addressable LED *1x ROG Thank you card *1x M.2 SSD screw package(s) *1xM.2 Key E screw package(s) *1x M.2 Rubber Package(s) BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/ROG-STRIX-B460-H-GAMING/overview/.
