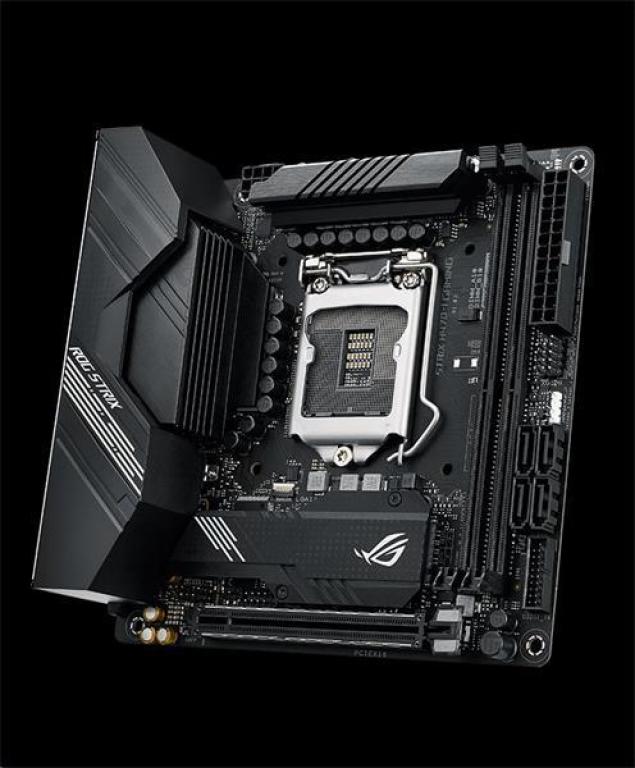

Asus STRIX H470-I GAMING

ROG Strix H470-I Gaming motherboard features solid power delivery and effective cooling designed to handle the latest 10th Generation Intel® Core™ processors. With its arresting futuristic aesthetic and intuitive ROG software, ROG Strix H470-I Gaming gives you a head start on your dream gaming build. CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H470 Memory 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Expansion Slots  Intel® 10th Gen Processors 1 x PCIe 3.0 x16 Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready LAN Intel® I219-V 1Gb Ethernet Realtek RTL8111H 1Gb Ethernet ASUS LANGuard Wireless Data Network Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed Up to 2.4Gbps transfer speed Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Rear audio USB Type-C® port - Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB Ports Rear USB Port ( Total 7 ) 2 x USB 3.2 Gen 2 port(s) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 1 x USB 2.0 port(s)(1 x USB Type-C®) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) Software Features [ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) -  Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector Back I/O Ports 1 x Intel® I219-V 1Gb Ethernet 1 x Realtek RTL8111H 1Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (red)Type-A + USB Type-CTM 4 x USB 3.2 Gen 1 1 x USB 2.0 *3 5 x Audio jack(s) Internal I/O Ports 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector Accessories User''s manual 2 x SATA 6Gb/s cable(s) 1 x pack of cable tie 1 x Supporting DVD 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 M.2 SSD screw package(s) 1 ROG key chain BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 10 64-bit Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) Note *when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled *3 1 x audio USB Type-C®.
