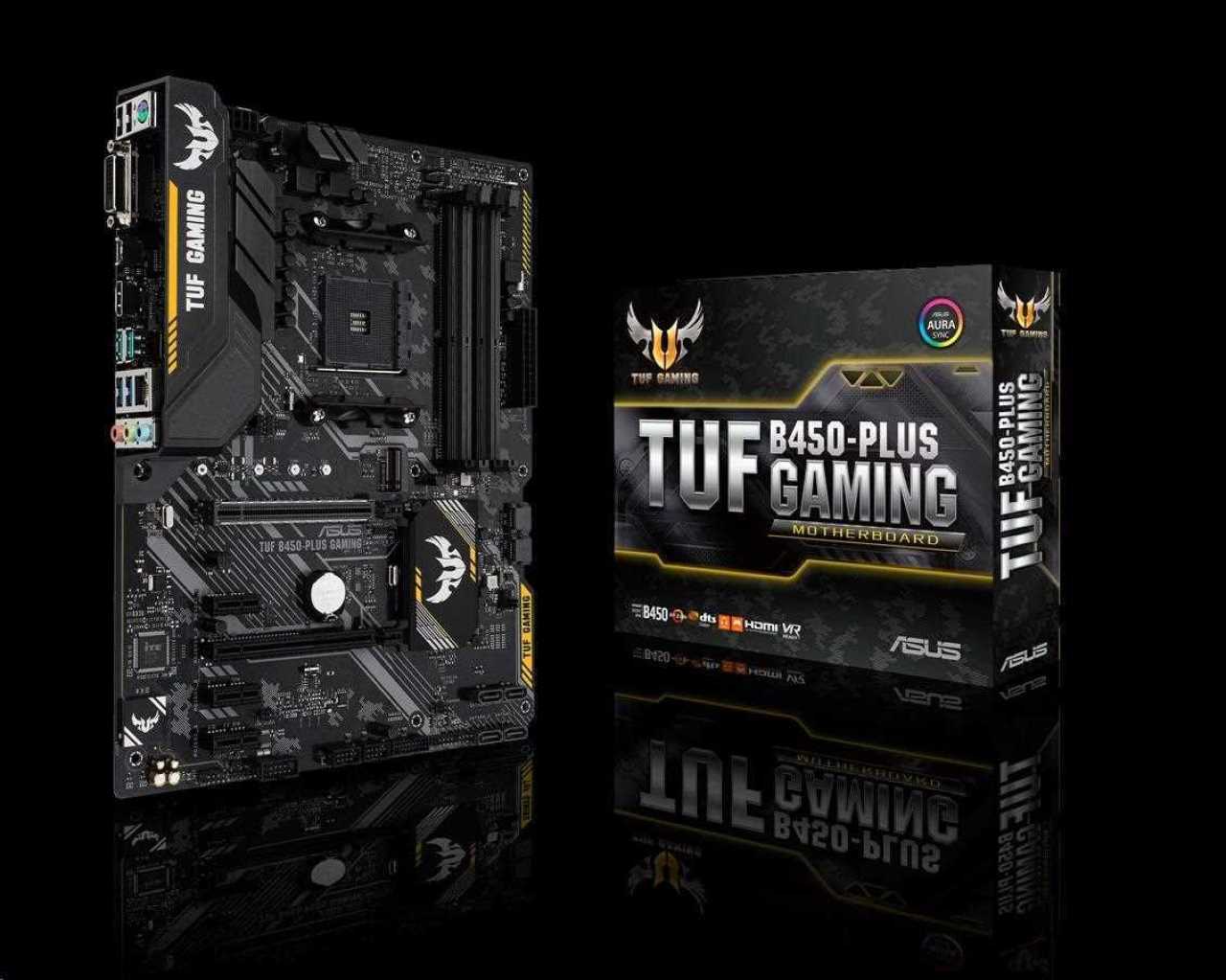

Asus TUF GAMING B450-PLUS II

CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors Chipset AMD B450 Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI 2.0b Graphics specifications may vary between CPU types. Multi-GPU Support Supports AMD CrossFireX™ Technology Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 Storage 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA& PCIE 3.0 x 4 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : 2 x SATA 6Gb/s port Support Raid 0, 1, 10 AMD B450 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4) 4 x SATA 6Gb/s port Support Raid 0, 1, 10 LAN Realtek® L8200A TUF LANGuard Audio Realtek® ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : Exclusive DTS Custom for GAMING Headsets. Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. USB Ports Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) Special Features ASUS TUF PROTECTION ASUS SafeSlot: Protect your graphics card Investment ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: Precision control for stable power ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA : Aura Lighting Control Aura RGB Strip Headers ASUS Exclusive Features : AI Suite 3 Ai Charger Turbo LAN PC Cleaner Armoury Crate BIOS FlashBack™ Button ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution& MOS Heatsink ASUS Fan Xpert 4 Core ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS USB BIOS FlashBack™ ASUS UEFI BIOS EZ Mode ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM Armoury Crate Software Features ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync AI Noise-Canceling Microphone AI Suite 3 Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 core EZ update PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS TUF PROTECTION ASUS DIGI+ VRM ASUS Enhanced DRAM Overcurrent Protection ASUS ESD Guards TUF LANGuard ASUS Overvoltage Protection ASUS SafeSlot ASUS Stainless-Steel Back I/O ASUS Q-Design ASUS Q-DIMM ASUS Q-Slot ASUS Thermal Solution Aluminum heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED AURA Sync AURA RGB headers Back I/O Ports 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port 2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 5 x Audio jack(s) 1 x BIOS FlashBack™ Button Internal I/O Ports 1 x CPU Fan connector (1 x 4 -pin) 3 x Chassis Fan connector (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 2 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector support additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA& PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector 1 x Front panel audio connector (AAFP) 1 x System panel 1 x Clear CMOS jumper 1 x COM port header Operating System Windows® 10 64-bit Windows® 7 64-bit Form Factor ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ).
