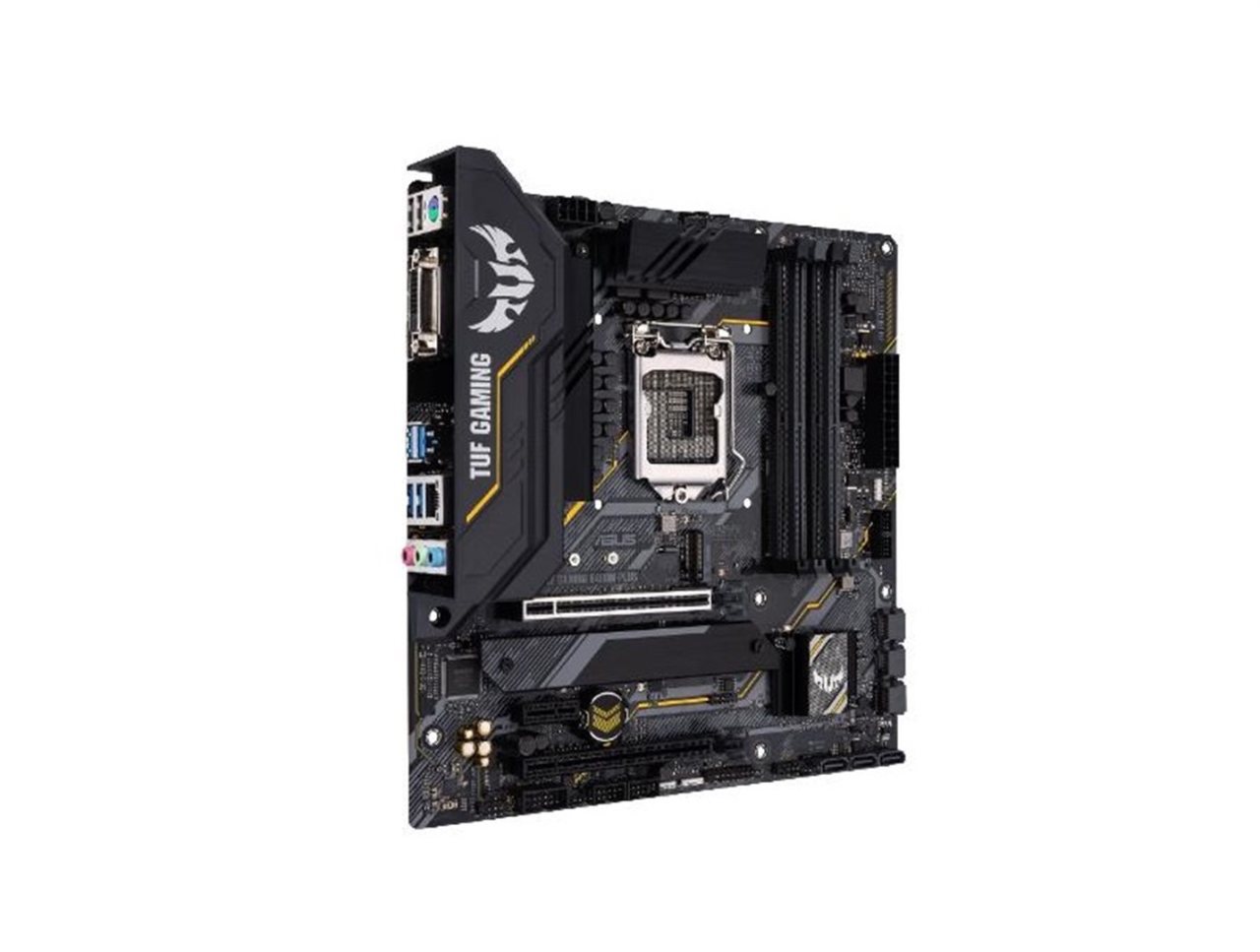

Asus TUF GAMING B460M-PLUS

Chipset: Intel® B460 Rozměrový formát: mATX Form Factor (244 mm x 244 mm) Podpora pro procesory: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Intel® Extreme Memory Profile (XMP) Grafická karta: *Integrated Graphics Processor (na základě procesoru) Multi GPU: AMD 2-Way CrossFireX Technology Zvuková karta: *Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *Intel® I219-V 1Gb Ethernet Rozšiřující sloty: *1x PCIe 3.0 x16 (x16 mode) *1x PCIe 3.0 x16 (x4 mode) *1x PCIe 3.0 x1 RAID řadič: 0, 1, 5, 10 SATA: *6x SATA 6Gb/s M.2: *1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) USB: *zadní USB porty ( celkem 6 ) *4x USB 3.2 Gen 1 port(s) *2x USB 2.0 port(s)(2 x Type-A) *přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s) Interní porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *2x Chassis Fan connector(s) *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) *6x SATA 6Gb/s connector(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x System panel(s) (Chassis intrusion header is inbuilt) *1x Clear CMOS jumper(s) *1x COM port header Externí porty: *1x PS/2 keyboard/mouse combo port(s) *1x DVI *1x DisplayPort *1x HDMI *1x LAN (RJ45) port(s) *4x USB 3.2 Gen 1 Type-A *2x USB 2.0 *3x Audio jack(s) Obsah balení: *User"s manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x TUF Gaming Sticker *1x TUF Certification card(s) *1x M.2 SSD screw package(s) *1x M.2 Rubber Package(s) BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/TUF-GAMING-B460M-PLUS/.
