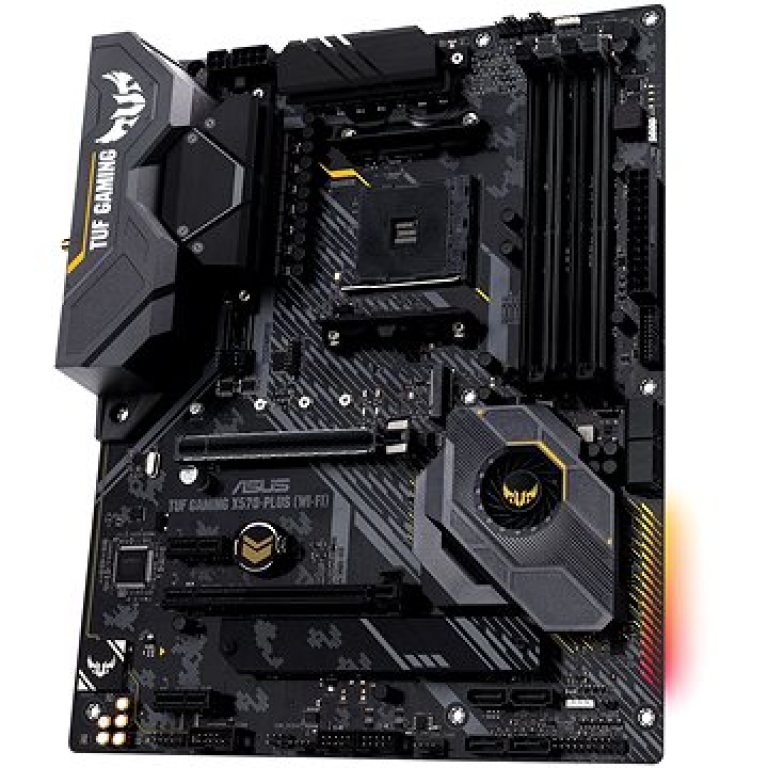

PodrobnostiTUF Gaming X570-Plus (Wi-Fi)AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, Wi-Fi, 12+2 with Dr. MOS power stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD RyzenTM processors
- Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
- Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
- Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF
- LANGuard and TurboLAN technology
- Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in,
- providing pristine audio quality
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
TECHNICAL SPECIFICATIONSCPUAMD AM4 Socket AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics ProcessorsChipsetAMD X570Memory3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).GraphicIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 HzMulti-GPU Support3rd and 2nd Gen AMD Ryzen™ ProcessorsAMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation ProcessorsSupports AMD CrossFireX™ TechnologyExpansion Slots3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode) 2 x PCIe 4.0 x1Storage3rd Gen AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support8 x SATA 6Gb/s port(s)Support Raid 0, 1, 10LANRealtek® L8200AASUS Turbo LAN UtilityTUF LANGuardWireless Data NetworkIntel® Wireless-AC 9260Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMOSupports channel bandwidth: HT20/HT40/HT80/HT160BluetoothBluetooth® 5.0AudioRealtek® ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature:- Exclusive DTS Custom for GAMING Headsets.- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.USB Ports3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 4 x USB 3.2 Gen 1 port(s) (4 at back panel, )AMD X570 chipset: 3 x USB 3.2 Gen 2 port(s) (3 at back panel,, 2 x Type-A+1 x USB Type-CTM)AMD X570 chipset: 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)AMD X570 chipset: 4 x USB 2.0 port(s) (4 at mid-board)Special FeaturesASUS TUF PROTECTION- ASUS SafeSlot: Protect your graphics card Investment- ASUS ESD Guard: Enhanced ESD protection- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: Precision control for stable power- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!AURA:- Aura Lighting Control- Aura RGB Strip Headers- Addressable Gen 2 HeaderASUS Exclusive Features:- AI Suite 3- Ai Charger ASUS Quiet Thermal Solution:- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM DIY Friendly Design- Procool- SafeSlot- Digi+ VRM- Highly Durable components- ESD GuardsBack I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x Optical S/PDIF out5 x Audio jack(s)4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)Internal I/O Connectors2 x Aura RGB Strip Header(s)1 x Addressable Gen 2 header(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x SPI TPM header8 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) 1 x Clear CMOS jumper(s)1 x COM port header1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB portsAccessoriesUser''s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)1 x TUF GAMING Sticker1 x TUF Certification card(s)BIOS256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory informationManageabilityWOL by PME, PXEOperating SystemWindows ® 10 64-bitForm FactorATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ).
