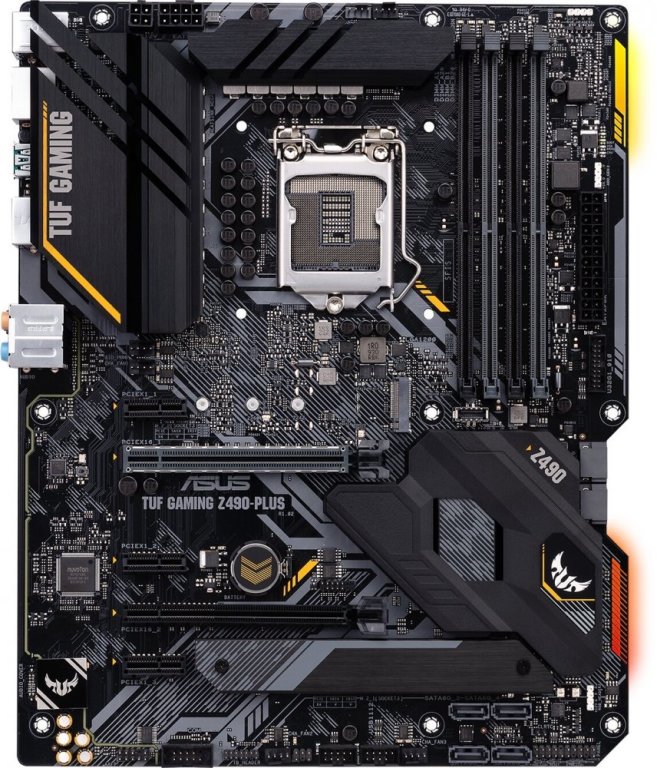

Asus TUF GAMING Z490-PLUS

Chipset: Intel® Z490 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 (Dual Channel) *Intel® Extreme Memory Profile (XMP) Grafická karta: Integrated Graphics Processor (na základě CPU) Multi GPU: *AMD 2-Way CrossFireX Technology Zvuková karta: *Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *Intel® I219-V 1Gb Ethernet (TUF LANGuard) Rozšiřující sloty: *1x PCIe 3.0 x16 (x16 mode) *1x PCIe 3.0 x16 (x4 mode) *3x PCIe x1 RAID řadič: 0, 1, 5, 10 SATA: *6x SATA 6Gb/s port(s) M.2: *1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: *zadní USB porty ( celkem 6 ) *2x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *přední USB porty ( celkem 7 ) *1x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®) *1x USB 3.2 Gen 1 port(s)(2 x Type-A) *2x USB 2.0 port(s)(4 x Type-A) Interní porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *3x Chassis Fan connector(s) *1x AIO_PUMP connector *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *2x M.2 Socket 3 *6x SATA 6Gb/s connector(s) *1x Thunderbolt header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x 4-pin ATX 12V Power connector(s) *1x Front panel audio connector(s) (AAFP) *1x System panel(s) (Chassis intrusion header is inbuilt) *1x Clear CMOS jumper(s) *1x COM port header Externí porty: *1x PS/2 keyboard/mouse combo port(s) *1x DisplayPort *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) *4x USB 3.2 Gen 1 (blue) Type-A *1x Optical S/PDIF out *5x Audio jack(s) Obsah balení: *Uživatelská příručka *1x ASUS Fan Holder *I/O Shield *2x SATA 6Gb/s cable(s) *1x M.2 Screw Package *1x Supporting DVD *1x TUF GAMING Sticker *1x TUF Certification card(s) BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/TUF-GAMING-Z490-PLUS/.
