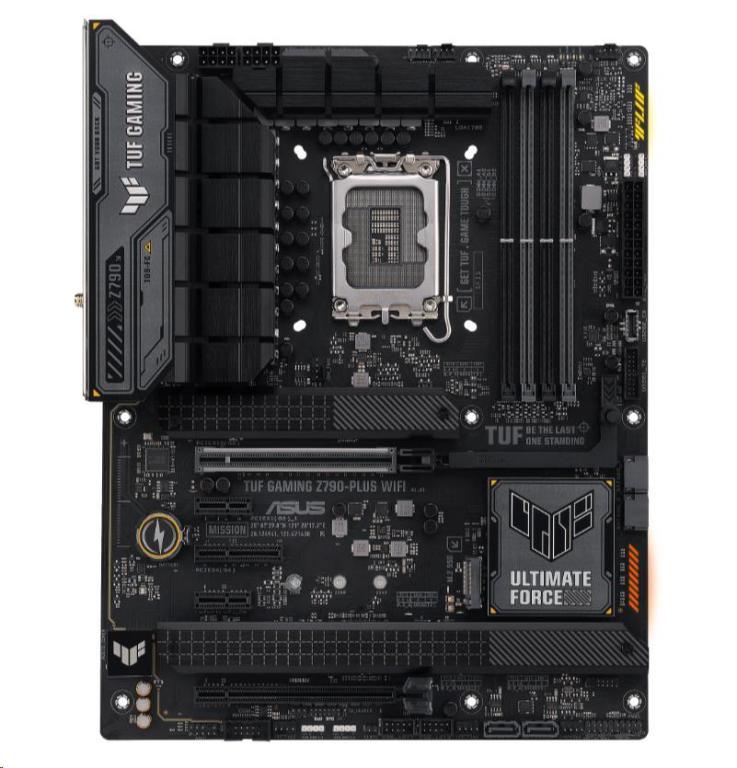

Asus TUF GAMING Z790-PLUS WIFI

TUF GAMING Z790-PLUS WIFI TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z790 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ Graphics 1 x DisplayPort**1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processors'' or graphic cards'' resolution. Expansion Slots Intel® 13th & 12th Gen Processors*1 x PCIe 5.0 x16 slotIntel® Z790 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x4 slot2 x PCIe 3.0 x1 slots* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 modeIntel® Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet 1 x Intel® 2.5Gb EthernetTUF LANGuard Wireless & Bluetooth Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries.** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer''s website for the latest specifications. USB Rear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*"Audio Features- Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers- Audio Cover* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorsStorage related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- TUF LANGuard- Overvoltage Protection- Safeslot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAURA Sync- Aura RGB header- Addressable Gen 2 headers Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Two-Way AI Noise Cancelation- Power SavingAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerTUF GAMING CPU-ZDTS Audio ProcessingMyAsusNorton 360 for GamersWinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antenna1 x TUF GAMING sticker2 x M.2 Rubber Packages1 x Screw package for M.2 SSDDocumentation1 x TUF Certification card1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ).
