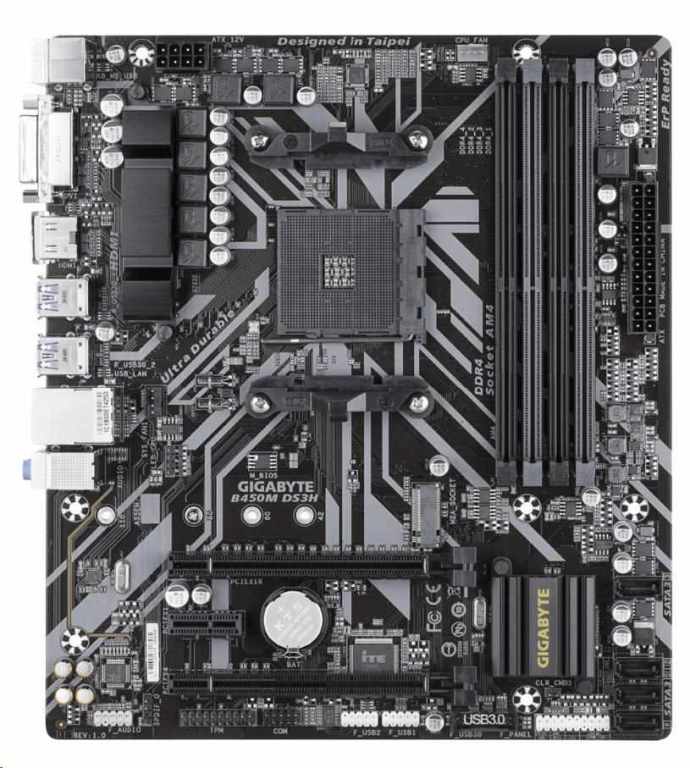

Gigabyte B450M DS3H

Specification CPU AM4 Socket: 1.AMD Ryzen™ 2nd Generation processors 2.AMD Ryzen™ with Radeon™ Vega Graphics processors 3.AMD Ryzen™ 1st Generation processors (Please refer "CPU Support List" for more information.) Chipset 1.AMD B450 Memory 1.4 x DDR4 DIMM sockets supporting up to 64 GB of system memory 2.Dual channel memory architecture 3.Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules 4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6.Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: 1.1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 2.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB (Note) Actual support may vary by CPU. Audio 1.Realtek® ALC887 codec 2.High Definition Audio 3.2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. 4.Support for S/PDIF Out LAN 1.Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1.1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2.1 x PCI Express x16 slot, running at x4 (PCIEX4) 3.1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) (Note) Actual support may vary by CPU. Storage Interface 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 2.4 x SATA 6Gb/s connectors 3.Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Multi-Graphics Technology 1.Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies USB Chipset: 1.2 x USB 3.1 Gen 1 ports available through the internal USB header 2.8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 1.4 x USB 3.1 Gen 1 ports on the back panel Internal I/O Connectors 1.1 x 24-pin ATX main power connector 2.1 x 8-pin ATX 12V power connector 3.1 x CPU fan header 4.1 x system fan header 5.1 x M.2 Socket 3 connector 6.4 x SATA 6Gb/s connectors 7.1 x front panel header 8.1 x front panel audio header 9.1 x S/PDIF Out header 10.1 x CPU cooler LED strip/RGB LED strip header 11.1 x USB 3.1 Gen 1 header 12.2 x USB 2.0/1.1 headers 13.1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 14.1 x serial port header 15.1 x Clear CMOS jumper Back Panel Connectors 1.1 x PS/2 keyboard/mouse port 2.1 x DVI-D port 3.1 x HDMI port 4.4 x USB 3.1 Gen 1 ports 5.4 x USB 2.0/1.1 ports 6.1 x RJ-45 port 7.3 x audio jacks I/O Controller 1.iTE® I/O Controller Chip H/W Monitoring 1.Voltage detection 2.Temperature detection 3.Fan speed detection 4.Overheating warning 5.Fan fail warning 6.Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1.1 x 128 Mbit flash 2.Use of licensed AMI UEFI BIOS 3.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features 1.Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner 2.Support for Q-Flash 3.Support for Xpress Install Bundle Software 1.Norton® Internet Security (OEM version) 2.cFosSpeed Operating System 1.Support for Windows 10 64-bit 2. Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE''s website and install it before installing Windows 7. Form Factor 1.Micro ATX Form Factor; 24.4cm x 21.5cm Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors'' website or 3rd party website. 2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. * All trademarks and logos are the properties of their respective holders. * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
